Toyota COASTER — ELECTRONIC DIESEL INJECTION CONTROL SYSTEM
28571MOTOR, FUEL CONTROL
W/EXHAUST BRAKE
28571AROD, FUEL CONTROL MOTOR
28578COVER, FUEL CONTROL MOTOR
28579BRACKET, FUEL CONTROL MOTOR
28590RELAY ASSY, FUEL CONTROL
W/EXHAUST BRAKE
9046108265
main90461-08265
9161160665
main91611-60665
9165160825
main91651-60825
9417110500
main94171-10500
9451100500
main94511-00500

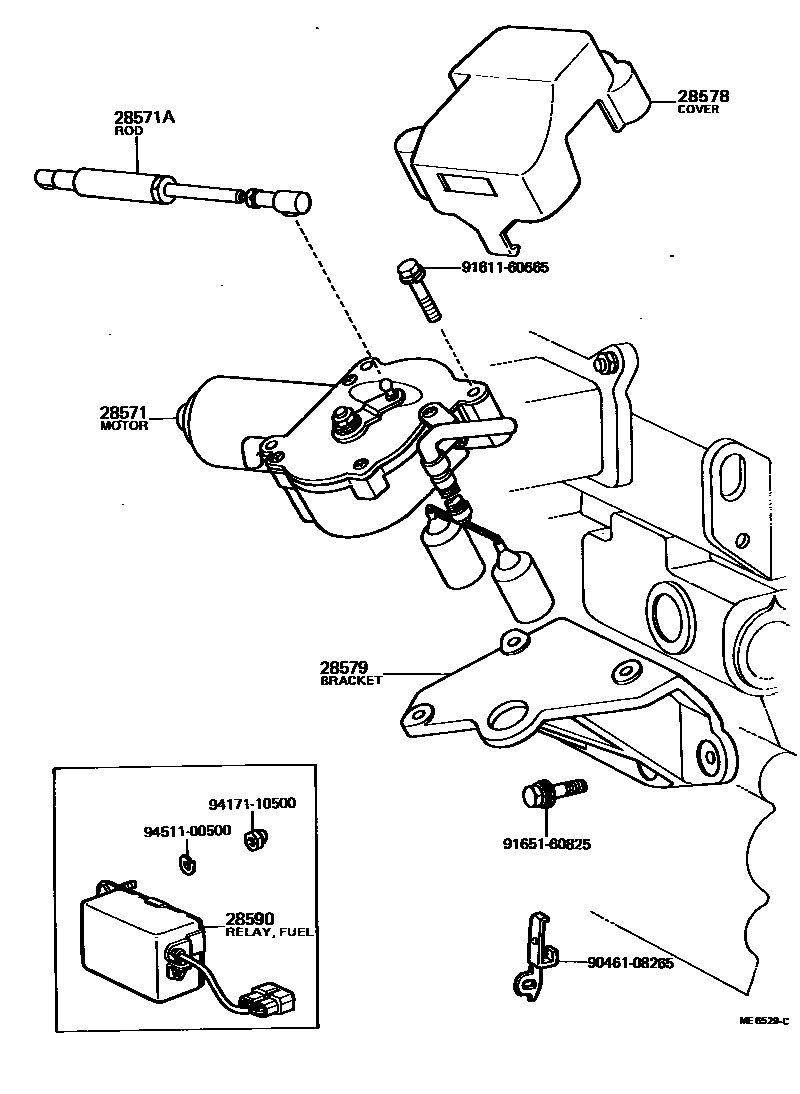

10 parts on this diagram · 1 diagram in section
ELECTRONIC DIESEL INJECTION CONTROL SYSTEM for Toyota COASTER
This section contains 10 genuine Toyota parts for the ELECTRONIC DIESEL INJECTION CONTROL SYSTEM system of the Toyota COASTER. Key components include: MOTOR, FUEL CONTROL, ROD, FUEL CONTROL MOTOR, COVER, FUEL CONTROL MOTOR, BRACKET, FUEL CONTROL MOTOR, RELAY ASSY, FUEL CONTROL.
