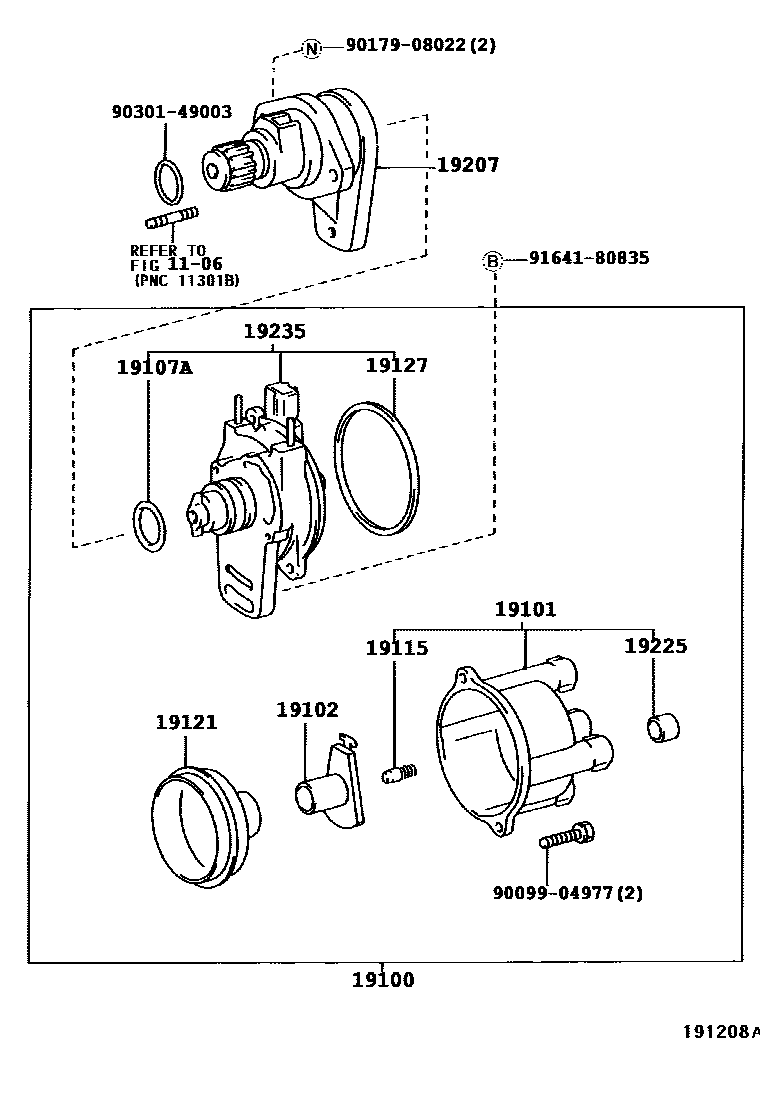

Toyota COASTER — DISTRIBUTOR

1106

19100DISTRIBUTOR ASSY

main19100-48010i1BZFPE..BZB40,50200203-200408

19101CAP SUB-ASSY, DISTRIBUTOR

main19101-74150i1BZFPE..BZB40,50200203-200408

19102ROTOR SUB-ASSY, DISTRIBUTOR

main19102-11370i1BZFPE..BZB40,50200203-200408

main19102-16010i1BZFPE..BZB40,50201411-201501

19107ARING, O, DISTRIBUTOR HOUSING

main90099-14118i1BZFPE..BZB40,50200203-200408

19115PIECE, DISTRIBUTOR CAP, CENTER

main19115-88280i1BZFPE..BZB40,50200203-200408

19121COVER, DUST PROOF

main19121-74030i1BZFPE..BZB40,50200203-200408

19127PACKING, DUST PROOF

main19127-74040i1BZFPE..BZB40,50200203-200408

19207HOUSING SUB-ASSY, DISTRIBUTOR, RH

main19207-48010i1BZFPE..BZB40,50200203-200408

19225CAP, RUBBER

main19225-62010i1BZFPE..BZB40,50200203-200408

19235HOUSING, DISTRIBUTOR

main19235-48010i1BZFPE..BZB40,50200203-200408

9009904977

main90099-04977

9017908022

main90179-08022

9030149003

main90301-49003

9164180835

main91641-80835

15 parts on this diagram · 1 diagram in section
