Toyota COASTER — DISTRIBUTOR
19100ATAPE, SEALING
19101CAP SUB-ASSY, DISTRIBUTOR
19102ROTOR SUB-ASSY, DISTRIBUTOR
19105GOVERNOR SUB-ASSY
19107ARING, O, DISTRIBUTOR HOUSING
19115PIECE, DISTRIBUTOR CAP, CENTER
19121COVER, DUST PROOF
19122PLATE, STATIONARY, DISTRIBUTOR
19127PACKING, DUST PROOF
19151SHAFT, GOVERNOR
19152WEIGHT, GOVERNOR
19152ARING, SNAP(FOR GOVERNOR WEIGHT)
19153SPRING, GOVERNOR, A
19154SPRING, GOVERNOR, B
19155GEAR, SPIRAL, DISTRIBUTOR
19169STOPPER, CAM GREASE
19181ROTOR, DISTRIBUTOR, SIGNAL
19220ADVANCER ASSY, VACUUM, DISTRIBUTOR
19220ARING, SNAP(FOR DISTRIBUTOR VACUUM ADVANCER)
19242CLAMP, CORD
19250GENERATOR ASSY, SIGNAL
9009080507
main90090-80507
9009900124
main90099-00124
9009900710
main90099-00710
9009902198
main90099-02198
9009904566
main90099-04566
9009904865
main90099-04865
9011908307
main90119-08307
9331915008
main93319-15008

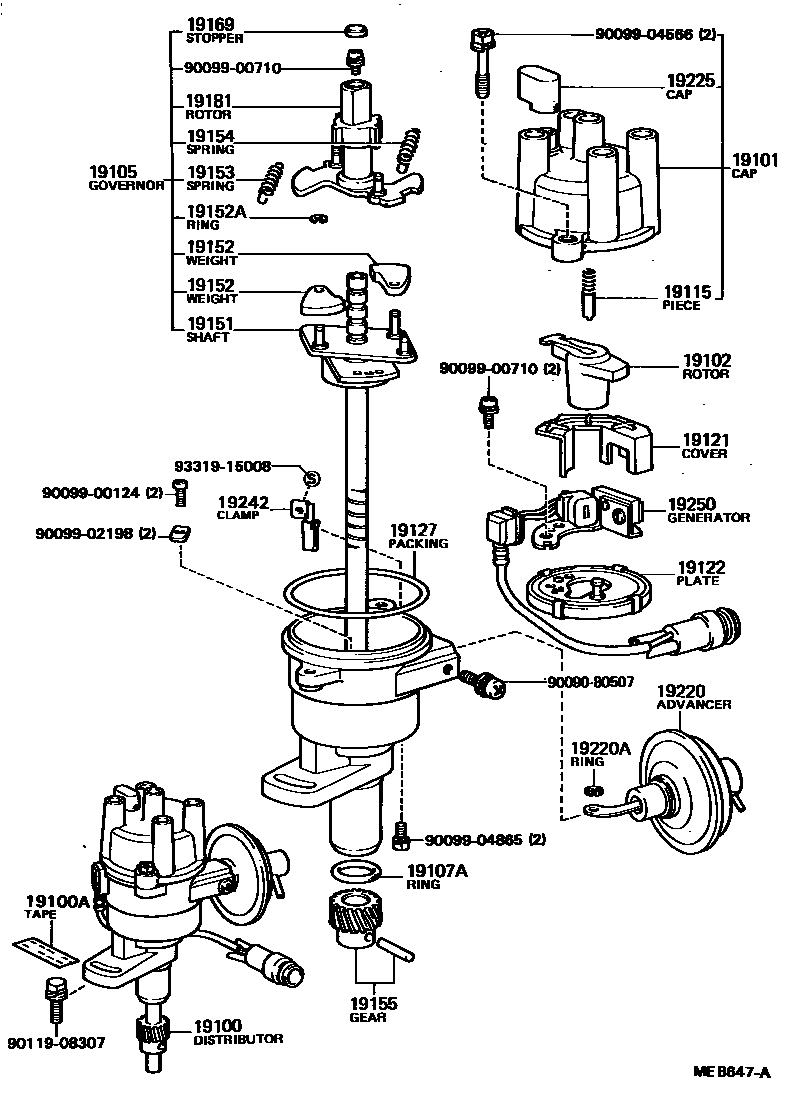

31 parts on this diagram · 2 diagrams in section
DISTRIBUTOR for Toyota COASTER
This section contains 36 genuine Toyota parts for the DISTRIBUTOR system of the Toyota COASTER. Key components include: DISTRIBUTOR ASSY, TAPE, SEALING, CAP SUB-ASSY, DISTRIBUTOR, ROTOR SUB-ASSY, DISTRIBUTOR, GOVERNOR SUB-ASSY.
