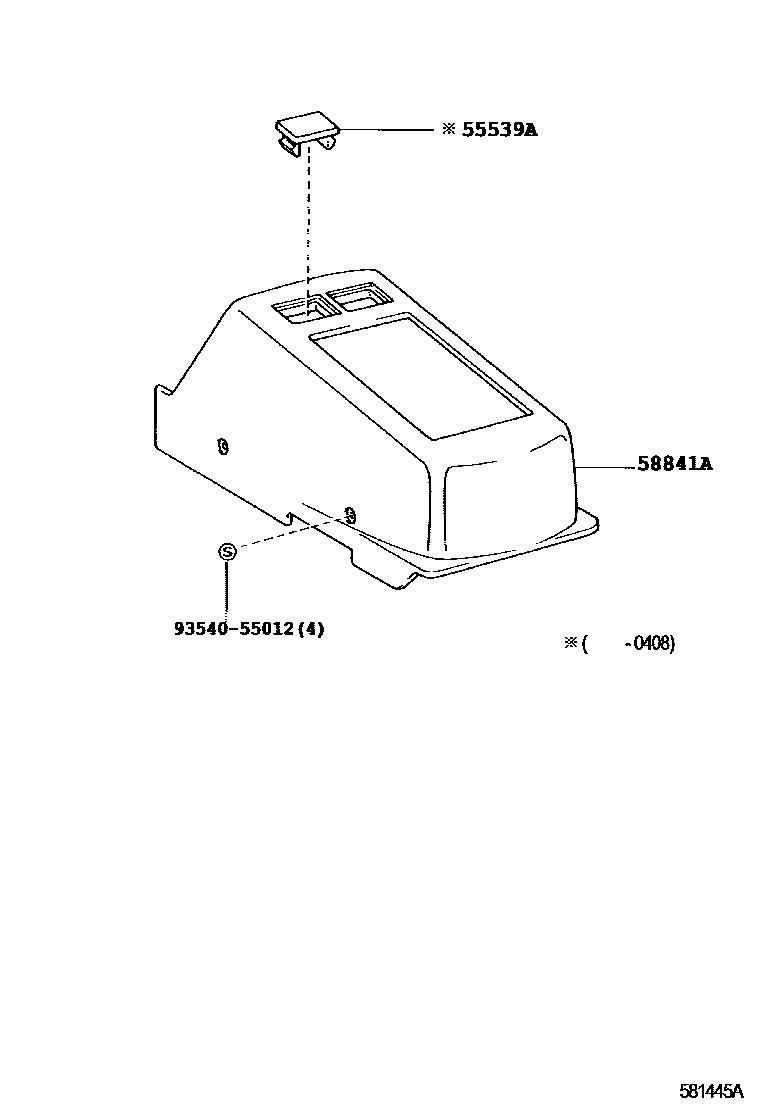

Toyota COASTER — CONSOLE BOX & BRACKET

55539ACOVER, SPARE SWITCH HOLE

main55539-20030-B3×2iBB58200108-200408

DK.CHARCOAL,TRIM1#

sub55539-32010

main55539-20030-E1×2iBB58199907-200108

GREIGE,TRIM4#

sub55539-32010

58841ACOVER, SHIFTING HOLE

main58841-36010-B0iBB58200108-200408

DK.CHARCOAL,TRIM1#

main58841-36010-E0iBB5#,HDB5#,HZB4#,5#..4FC199301-199907

GREIGE,TRIM4#

main58841-36040-B0iXZB4#,5#..6FC201501-201612

DK.CHARCOAL,TRIM1#

main58841-36040-E0iHDB5#,HZB4#,5#..4FC199907-200108

GREIGE,TRIM4#

9354055012

main93540-55012

3 parts on this diagram · 1 diagram in section
