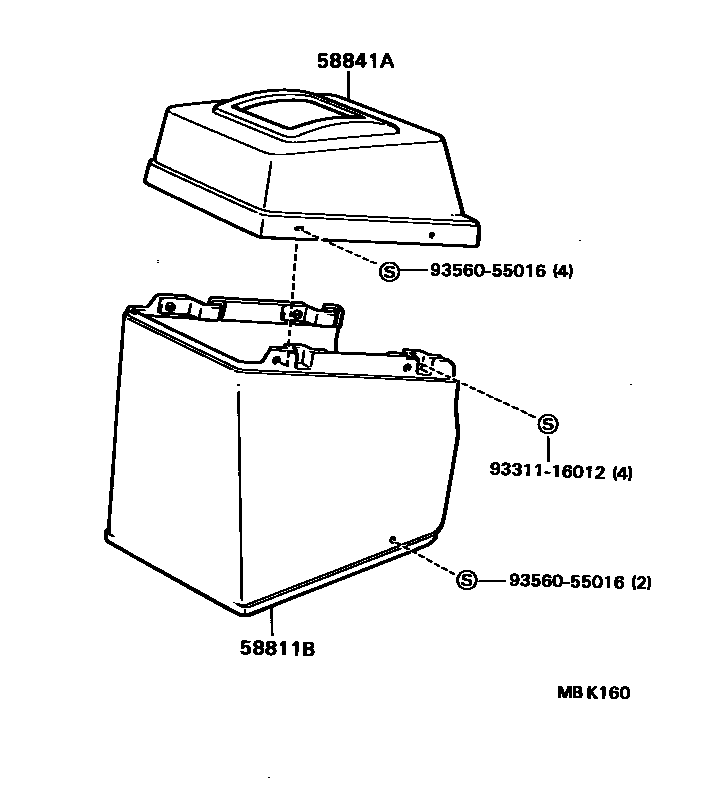

Toyota COASTER — CONSOLE BOX & BRACKET

58811BBOX, CONSOLE

main58801-90B01iHB31..4FC198510-198802

main58801-90B01-02iHB31..4FC198802-198808

DARK WINE,MAROON

main58801-90B01-06iBB23,24,HB31,32,HDB20,3#,HZB30,31..4FC198808-199301

SABLE,SABLE

58841ACOVER, SHIFTING HOLE

main58840-90B01iHB31..4FC198510-198802

DARK WINE

main58840-90B01-02iHB31..4FC198802-198808

DARK WINE

main58840-90B01-06iBB23,24,HB31,32,HDB20,3#,HZB30,31..4FC198808-199301

SABLE,SABLE

9331116012

main93311-16012

9356055016

main93560-55016

4 parts on this diagram · 1 diagram in section
