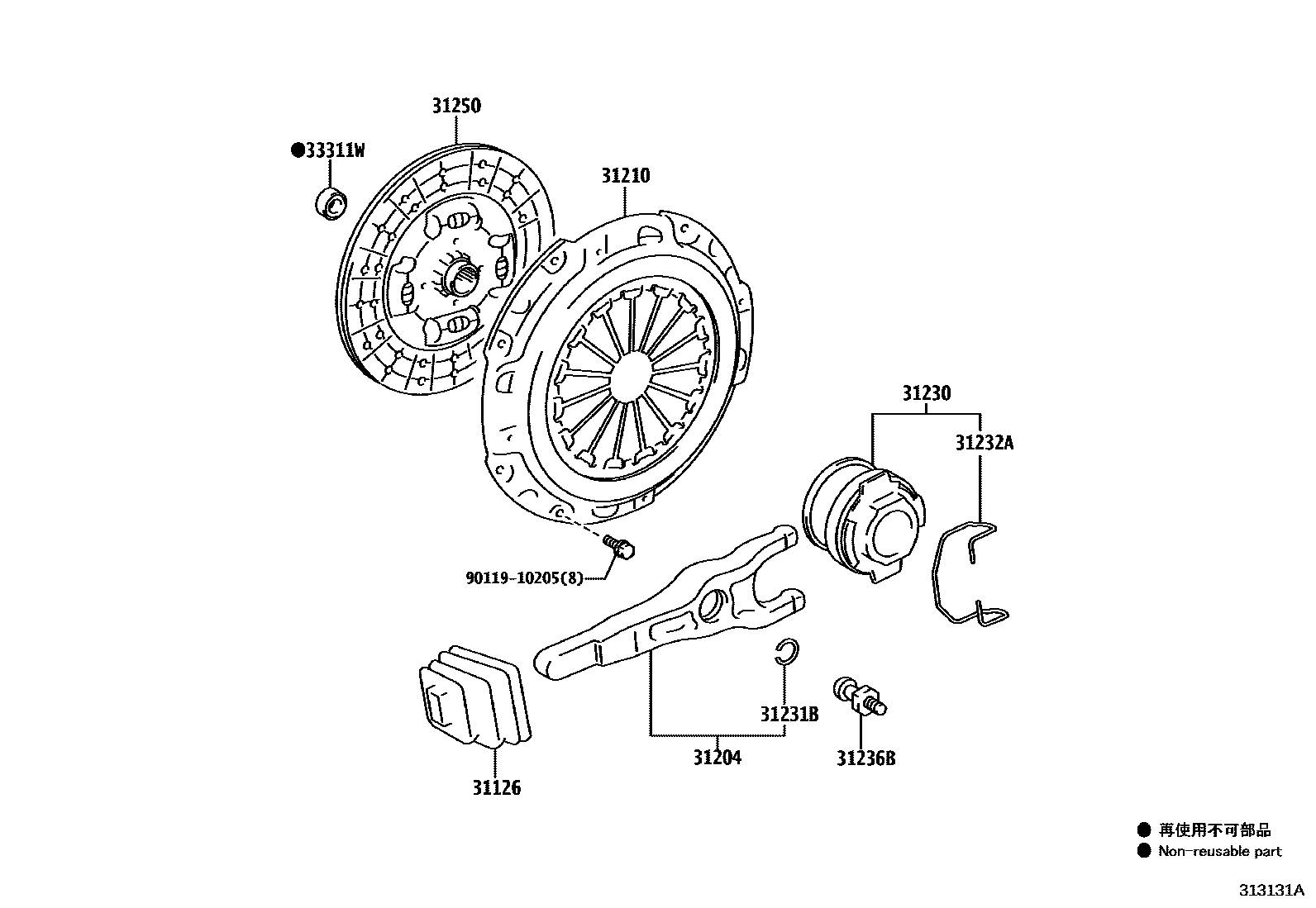

Toyota COASTER — CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-36070iXZB60,70..5F201701-202201

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-37010iXZB60,70..5F201701-202201

31210COVER ASSY, CLUTCH

main31210-36292iXZB60,70..5F201701-202201

31230BEARING ASSY, CLUTCH RELEASE

main31230-36200iXZB60,70..5F201701-202201

31231BRING, SNAP(FOR CLUTCH RELEASE HUB)

main90521-22003iXZB60,70..5F201701-202201

31232ACLIP, RELEASE BEARING HUB

main31232-36030iXZB60,70..5F201701-202201

31236BSUPPORT, RELEASE FORK

main31236-36060iXZB60,70..5F201701-202201

31250DISC ASSY, CLUTCH

main31250-36551iXZB60,70..5F201701-201907

main31250-36552iXZB60,70..5F201908-202201

33311WBEARING (FOR INPUT SHAFT)

mainSZ37117009iXZB60,70..5F201701-202201

9011910205

main90119-10205

10 parts on this diagram · 1 diagram in section
