Toyota COASTER — CLUTCH & RELEASE FORK

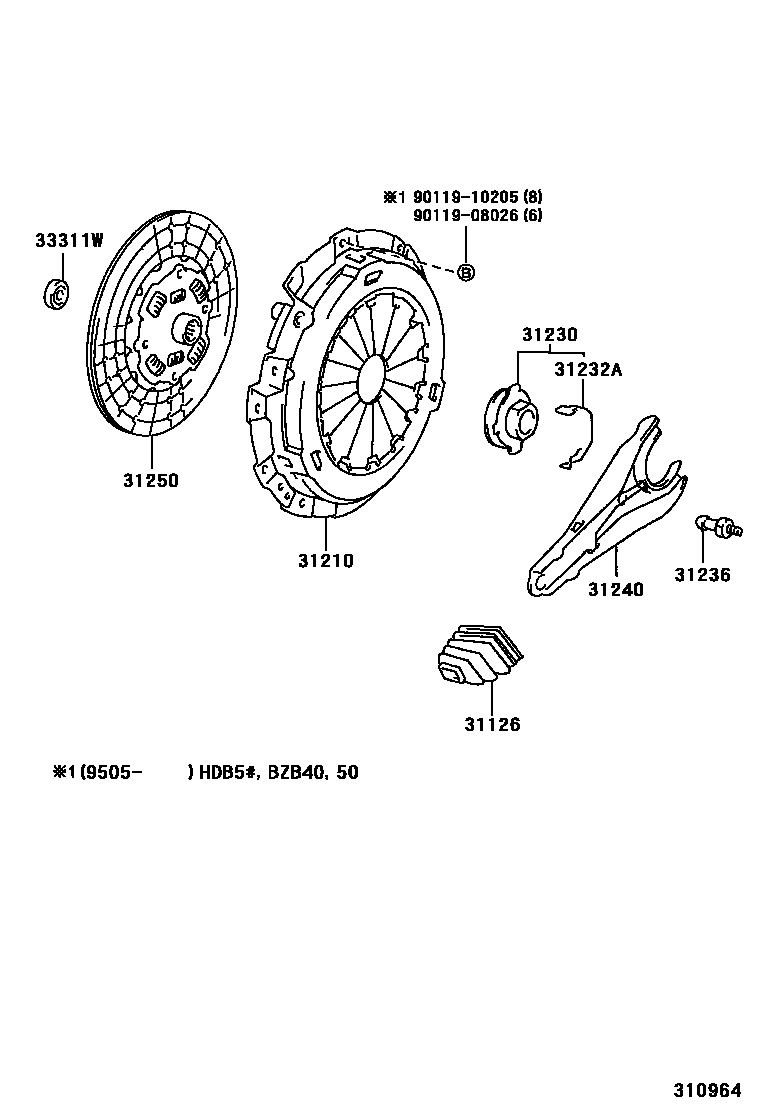

Parts diagram

31126BOOT, CLUTCH RELEASE FORK

main31126-36070i199301-201501

main31126-36080i199301-199907

main31126-36090i199705-200408

31210COVER ASSY, CLUTCH

main31210-36160i199708-199907

main31210-36210i199301-199708

main31210-36220i199301-200407

main31210-36221i200407-200408

main31210-36240i199505-199907

main31210-36250i199907-200406

main31210-36290i200407-200603

main31210-36291i200604-201512

main31210-36292i201601

main31210-36310i200601-201501

main31210-37030i200203-200512

main31210-60150i199301-199505

31230BEARING ASSY, CLUTCH RELEASE

main31230-36150i199301-199907

main31230-36200i199301-201501

main31230-36210i199505-200408

main31230-37010i200203-201501

31232ACLIP, RELEASE BEARING HUB

main31232-36010i199301-199907

main31232-36030i199301-201501

main31232-37010i200203-201501

31236BALL, RELEASE FORK

main31236-35030i199301-199907

main31236-36060i199301-201501

31240FORK ASSY, CLUTCH RELEASE

main31204-35031i199301-199907

main31204-36140i199301-199501

main31204-36141i199501-199705

main31204-36142i199705-201501

31250DISC ASSY, CLUTCH

main31250-36450i199301-199907

main31250-36490i199301-199308

main31250-36500i199308-199412

main31250-36502i199412-200004

main31250-36503i200004-200408

main31250-36521i200203-200507

main31250-36550i200408-200904

main31250-36551i200905-201501

main31250-36570i200508-201111

main31250-36571i201112-201501

main31250-60311i199505-199907

main31250-60340i199907-200012

main31250-60341i200012-200108

main31250-60342i200108-200109

main31250-60343i200109-200408

33311WBEARING (FOR INPUT SHAFT)

main90363-12002i199301-199904

main90363-12018i199904-201501

main90363-15017i199301-200408

main90363-17037i200408-201501

mainSZ37117009i201501

9011908026

main90119-08026

9011910205

main90119-10205

10 parts on this diagram · 3 diagrams in section

CLUTCH & RELEASE FORK for Toyota COASTER

This section contains 11 genuine Toyota parts for the CLUTCH & RELEASE FORK system of the Toyota COASTER. Key components include: BOOT, CLUTCH RELEASE FORK, FORK SUB-ASSY, CLUTCH RELEASE, COVER ASSY, CLUTCH, BEARING ASSY, CLUTCH RELEASE, CLIP, RELEASE BEARING HUB.
