Toyota COASTER — CLUTCH & RELEASE FORK

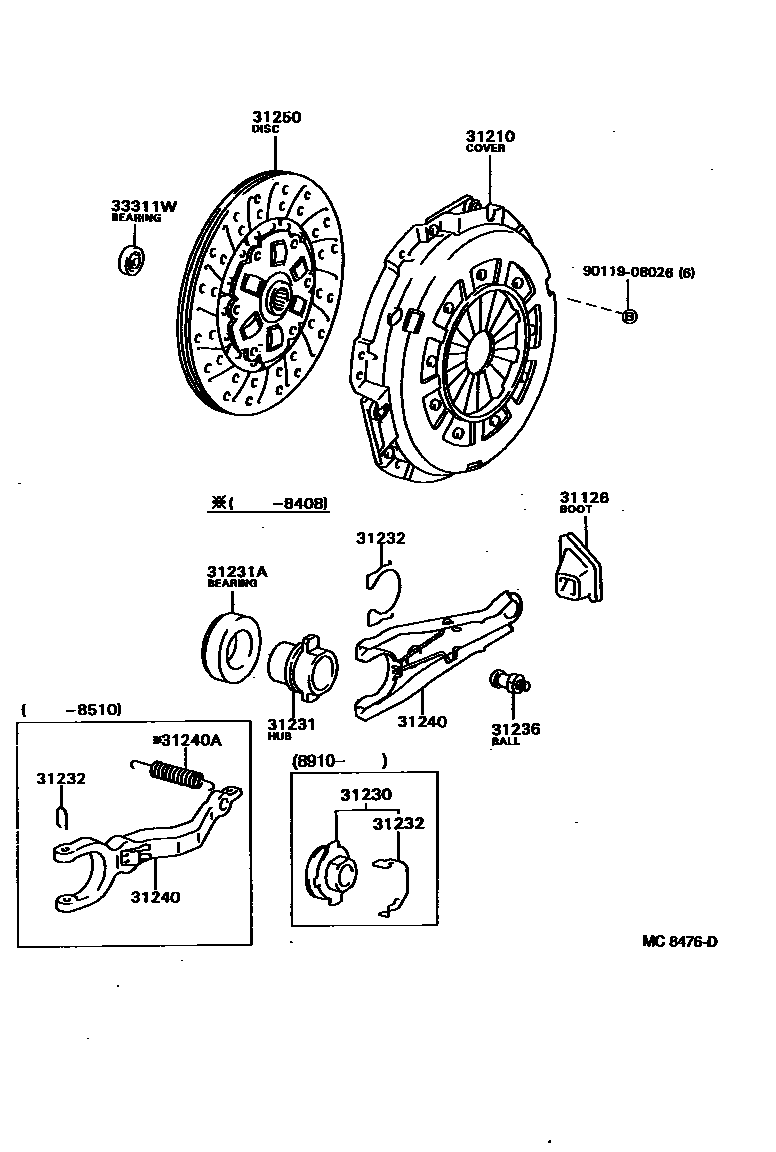

Parts diagram
31126BOOT, CLUTCH RELEASE FORK
main31126-20050i198205-198510
main31126-20060i198510-199301
main31126-36040i198510-199301
main31126-60021i198205-198510
main31126-60050i199001-199301
31210COVER ASSY, CLUTCH
main31210-14110i198205-198208
main31210-14111i198208-198310
main31210-14121i198310-198507
main31210-36090i198205-198408
main31210-36100i198408-198910
main31210-36110i198510-198712
main31210-36111i198712-199001
main31210-36120i198507-198606
main31210-36121i198606-199301
sub31210-30240
main31210-36140i198808-198910
main31210-36150i198808-198910
sub31210-36340
main31210-36160i198910-199301
sub31210-36161
main31210-36170i198910-199301
sub31210-36340
main31210-36190i199001-199301
sub31210-36191
main31210-60042i198205-198408
main31210-60070i198510-198712
main31210-60071i198712-198808
main31210-60130i198910-199301
sub31210-60190
31230BEARING ASSY, CLUTCH RELEASE
main31230-35070i198910-199301
sub31230-35071
main31230-36150i198910-199301
sub31230-36151
main31230-36170i198910-199301
main31230-36180i198910-199301
main31230-36190i199001-199301
31231HUB, CLUTCH RELEASE BEARING
main31231-35030i198510-198910
main31231-36062i198205-198510
main31231-36070i198205-198510
main31231-36090i198510-198808
main31231-36100i198510-198910
main31231-36110i198808-198910
main31231-36120i198808-198910
main31231-60050i198205-198510
31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)
main90363-40019i198205-198211
main90363-40022i198211-198910
main90363-45002i198205-198910
main90363-45009i198510-198910
main90363-45013i198808-198910
main90363-52001i198408-198510
main90363-52086i198205-198408
31232CLIP OR SPRING, RELEASE BEARING HUB
main31232-20010×2i198211-198510
main31232-30010×2i198205-198211
main31232-35010i198510-198910
main31232-36010i198910-199301
main31232-36020i199001-199301
main31232-36030i198910-199001
main31232-36040i198910-199301
main31232-60020×2i198510-198910
31236BALL, RELEASE FORK
main31236-30030i198205-198510
main31236-30040i198205-198510
main31236-35030i198510-199301
main31236-60030i198205-198510
31240FORK ASSY, CLUTCH RELEASE
main31204-25010i198205-198510
main31204-26010i198205-198510
main31204-35030i198510-198808
main31204-35031i198808-199301
main31204-36060i198510-198910
main31204-36110i199001-199301
main31204-36120i198910-199001
main31204-60040i198205-198303
main31204-60041i198303-198510
31240ASPRING, TENSION(FOR CLUTCH RELEASE FORK RETURN)
main90506-16004i198205-198408
main90506-16475i198205-198408
31250DISC ASSY, CLUTCH
main31250-14130i198205-198310
main31250-36113i198205-198308
main31250-36150i198205-198308
sub31250-60100
main31250-36161i198308-198408
main31250-36171i198310-198408
sub31250-36181
main31250-36210i198308-198510
sub31250-36350
main31250-36220i198408-198512
main31250-36230i198408-198510
sub31250-36231
main31250-36270i198510-198610
main31250-36280i198512-198608
sub31250-36281
main31250-36290i198512-199301
sub31250-36291
main31250-36300i198608-198610
main31250-36301i198610-198709
main31250-36320i198610-198804
main31250-36380i198709-198808
sub31250-36381
main31250-36390i198804-199001
main31250-36430i198808-199301
sub31250-36431
main31250-36450i198808-199301
sub31250-36451
main31250-36480i199001-199301
sub31250-36481
main31250-60090i198510-198512
33311WBEARING (FOR INPUT SHAFT)
main90363-12002i198205-199301
sub90363-12024
main90363-15004i198205-199301
main90363-15017i199001-199301
9011908026
main90119-08026

12 parts on this diagram · 6 diagrams in section
