Toyota COASTER — CLEARANCE & BACK SONAR
5253REAR BUMPER & BUMPER STAY
89340ACOMPUTER ASSY, CLEARANCE WARNING
89342SENSOR, ULTRASONIC, REAR CORNER
WHITE,058
SILVER M.M.,1E7
YELLOW,541
LAVENDER,2DT
BEIGE ME.,4R4
BEIGE,2JP
89342ASENSOR, ULTRASONIC, REAR CENTER
WHITE,058
SILVER M.M.,1E7
YELLOW,541
LAVENDER,2DT
BEIGE ME.,4R4
BEIGE,2JP
89343CBUZZER, CLEARANCE WARNING, NO.1
9015950322
main90159-50322

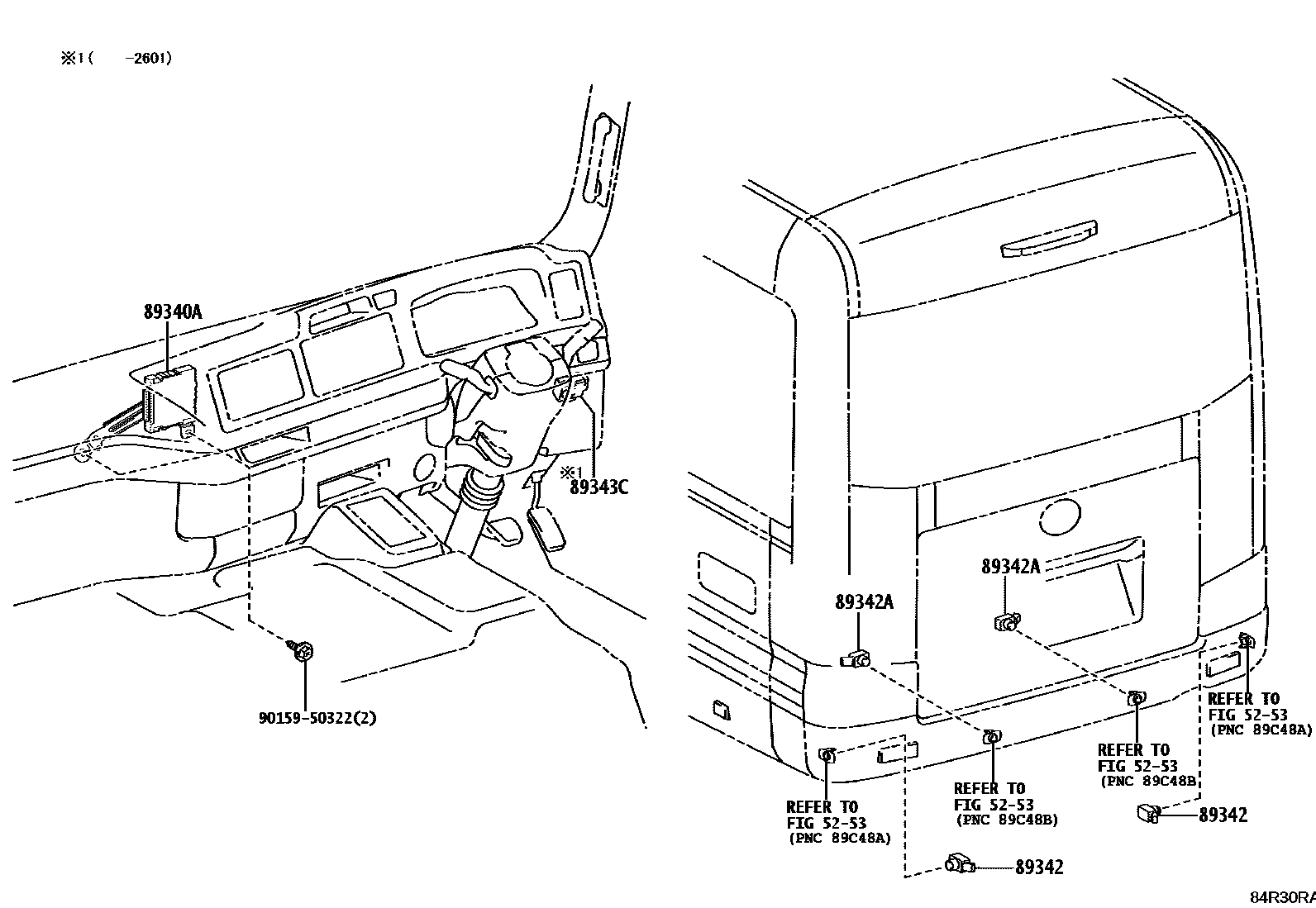

6 parts on this diagram · 1 diagram in section
CLEARANCE & BACK SONAR for Toyota COASTER
This section contains 6 genuine Toyota parts for the CLEARANCE & BACK SONAR system of the Toyota COASTER. Key components include: REAR BUMPER & BUMPER STAY, COMPUTER ASSY, CLEARANCE WARNING, SENSOR, ULTRASONIC, REAR CORNER, SENSOR, ULTRASONIC, REAR CENTER, BUZZER, CLEARANCE WARNING, NO.1.
