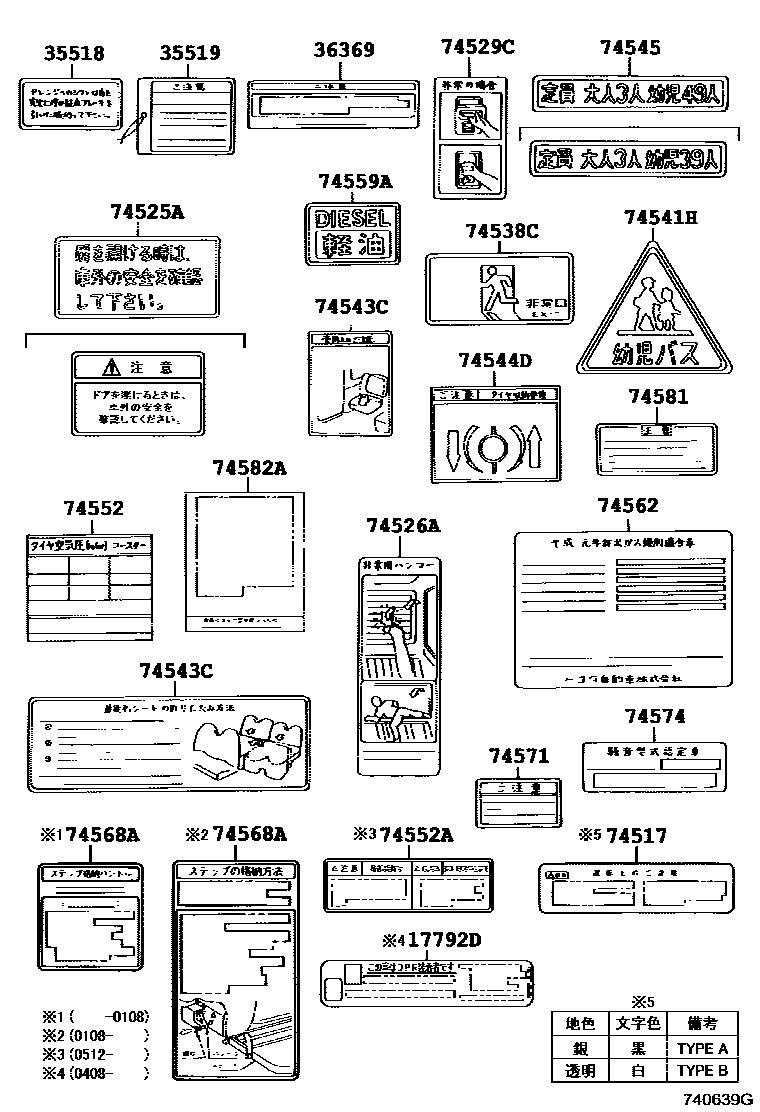

Toyota COASTER — CAUTION PLATE

0001 1 0002 1 0003 1

17792DLABEL, EMISSION CONTROL DEVICE INFORMATION

main11208-78050iN04C..XZB4#,5#201501

sub11208-E0010

35518PLATE, AUTOMATIC TRANSMISSION CAUTION, NO.2

main35518-36010iBB5#,HDB5#,HZB4#,5#..4FC199301-199907

35519PLATE, AUTOMATIC TRANSMISSION CAUTION

main35519-36010iBB55199512-199702

main35519-36040iHDB5#,HZB4#,5#..4FC199301-199907

36369LABEL, TRANSFER INFORMATION

main36369-36020iBB5#199512-199907

74517PLATE, EXHAUST TEMPERATURE CAUTION

main74517-20020iBB4#,HDB5#,HZB4#,5#199301-199506

main74517-26030iXZB40..5F..IV5;XZB51..6FC..IV5200408-200908

main74517-35010iHDB5#,HZB41,50..EX,GX,SULNG199506-199612

main74517-60010iXZB50..WOC;XZB40..5F..IV5200408-200908

74525APLATE, GLIDE DOOR CAUTION

main74525-36010iBZB40,50,HDB50,HZB40,46,5#..(GX,LX)..CBU199907-200408

main74525-90B00iHZB41..26S..4FC199304-199505

74526APLATE, EMERGENCY HAMMER CAUTION

main74526-36010×2iXZB51..SULNG200408-200512

74529CPLATE, BACK DOOR CAUTION

main74529-90B02iXZB40,50..STD201501

74538CLABEL, EMERGENCY EXIT CAUTION

main74538-36020iXZB40,50..STD201501

74541HPLATE, BODY CAUTION

main74541-36010×4iXZB40,50..STD201501

74543CLABEL, REAR SEAT INFORMATION

main74543-36010iHDB51,HZB50..DX,EX,SULNG;BB40,55,HDB50,HZB4#..(DX,EX,GX,LX)..(DSL2,DSL4,TD4)199305-199611

main74543-36030iBB40,HZB50..39S,49S199301-199611

main74543-36050iXZB51..SULNG200408-200512

main74543-36060iBZB40,XZB40,51..(DX,GX,LX,SULNG)..(5F,6FC)..CBU200408-201108

main74543-36070iBB40,HZB40,50..39S,49S199611-199907

main74544-36040iHZB40..5F..IV5199907-200408

74544DPLATE, TIRE CARRIER CAUTION

main74544-36020iBB4#,55,HDB5#,HZB4#,5#199301-199706

main74544-36050iXZB51..SULNG200408-200512

main74544-37010iBB58199907-200007

74545PLATE, FIXED NUMBER CAUTION

main74528-36010iHZB50..STD199301-199907

main74545-90500iXZB40..STD..4FC200408-200708

74552PLATE, SAFETY CAUTION

main74552-3B720iHZB4#199301-199505

main74552-3B730iHDB5#,HZB5#199301-199505

main74552-3B740iBB40199301-199505

main74552-3B750iBB46199301-199505

main74552-3B760iHDB5#,HZB5#199505-199705

main74552-3B761iHDB5#,HZB5#..CBU,IV5199907-200003

main74552-3B762iHDB5#,HZB5#..CBU,IV5200003-200108

main74552-3B763iBZB50,XZB51..(STD,SULNG)..(5F,6FC)200408-201108

main74552-3B764iBZB50,XZB5#201511-201612

main74552-3B770iHZB4#..EX,LX199907-200003

main74552-3B771iBZB40,XZB4#..LX,STD201501-201612

main74552-3B780iBB40;HZB40..STD199505-199907

main74552-3B781iHZB40..DX,STD200003-200108

main74552-3B782iXZB40..STD..(5F,6FC)200408-201501

main74552-3B790iBB46199505-199907

main74552-3B800iBB5#..WT199610-199907

main74552-3B801iBB58200003-200408

main74552-3B810iBB55..ST199512-199705

main74582-3B030iXZB40..GX..(5F,6FC)200408-201501

main74582-3B031iXZB40..GX201511-201612

74552ALABEL, SAFETY CAUTION

main74552-60A10iXZB50..WOC;XZB40..5F..IV5;XZB51..6FC..IV5200512-200908

main74552-60A11iXZB4#,5#201501

74559APLATE, FUEL CAUTION

main74559-14030iBB4#,5#,HDB5#,HZB4#,5#199301-199907

74562PLATE, EMISSION CONTROL SYSTEM INFORMATION

main74562-36230iBB4#199301-199505

main74562-36250iHDB5#199301-199505

main74562-60150iHZB4#,5#199301-199505

main74563-37030iBB5#199512-199902

74568APLATE, FRONT SLIDE DOOR CAUTION, NO.2

main74568-36020iHDB5#,HZB40,41,50..(20S,26S,29S)..WC..(CBU,IV5)199907-200108

main74568-36021iXZB51..SULNG..6FC200408-201108

main74568-36030iBZB40,50,XZB40,50,51..EX,GX,LX201511

74571PLATE, BRAKE FLUID CAUTION

main47288-32010iBB4#,HDB5#,HZB4#,5#199301-199506

74574PLATE, NOISE IDENTIFICATION

main74574-36400iBB55..ST199512-199705

main74574-36420iBB58199705-199907

main74574-36440iBB58199907-200108

main74574-36460iBB58200108-200408

main74574-36480iBZB40..STD200408-201108

main74574-36490iBZB50201501

74581PLATE, POWER STEERING CAUTION

main74581-37010iBB4#,HDB5#,HZB4#,5#199301-199505

74582APLATE, SAFETY CAUTION

main74552-2E190iXZB4#..08S,20S200408-200708

22 parts on this diagram · 3 diagrams in section
