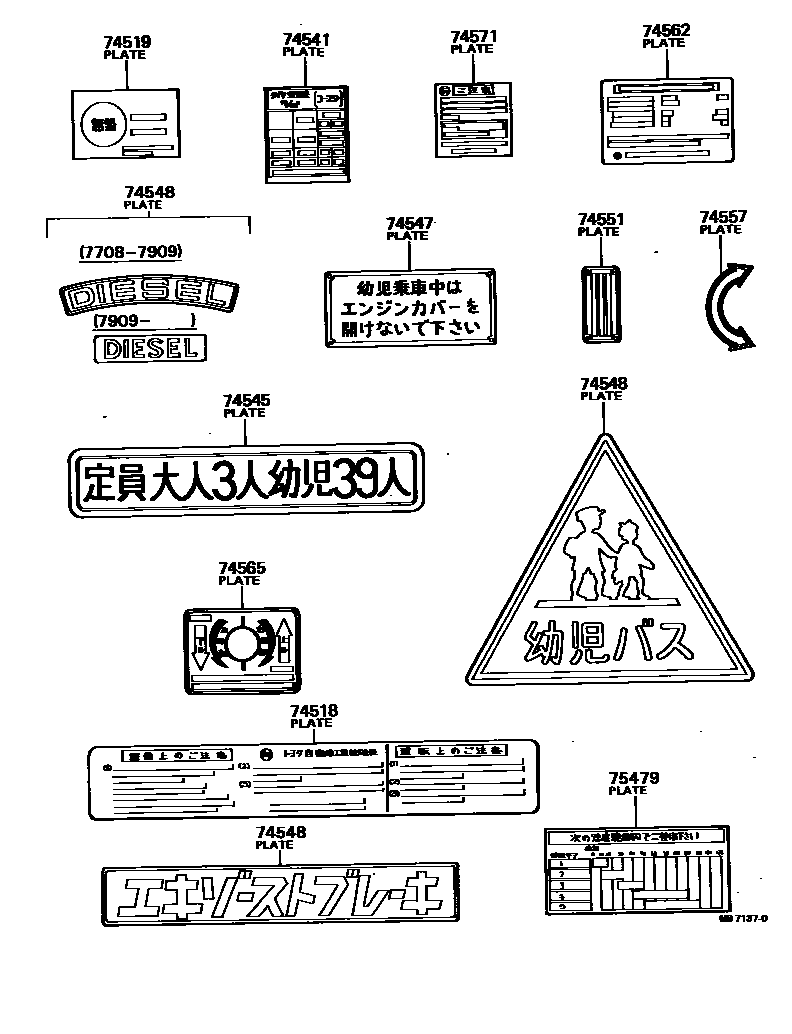

Toyota COASTER — CAUTION PLATE

74518PLATE, MAINTENANCE CAUTION

main74518-22021iBB1#,RB1#197808-198204

74519PLATE, FUEL CAUTION

main74559-14010iRB1#197708-198204

74541PLATE, TIRE PRESSURE CAUTION

main74552-36221iRB11197708-197911

main74552-36222iRB12197911-198008

main74552-36223iRB13198008-198204

main74552-36291iBB10197708-197911

main74552-36292iBB11197911-198008

main74552-36293iBB11198008-198204

74545PLATE, FIXED NUMBER CAUTION

main74545-90500iBB1#,RB1#..39C197708-198204

74547PLATE, ENGINE COVER CAUTION

main74531-90050iBB1#,RB1#..39C197708-198204

74548PLATE, BODY CAUTION

main74541-90500×4iBB1#,RB1#..39C197708-198204

sub74541-36010

main74559-22040iBB1#197909-198204

DIESEL

main75324-90301iBB10197708-197909

DIESEL

main75462-95402iBB11197911-198011

EXHAUST BRAKE

main75462-95404iBB11198011-198204

EXHAUST BRAKE

74551PLATE, BACK DOOR CAUTION

main75311-90010iBB1#,RB1#..39C197708-198204

74557PLATE, ROOF VENTILATION CAUTION

main74546-90500×2iBB1#,RB1#..39C197708-198204

74562PLATE, EMISSION CONTROL SYSTEM INFORMATION

main74562-36050iBB10197708-197911

main74562-36060iRB11197708-197911

main74562-36061iRB12197911-198008

main74562-36062iRB13198008-198204

main74562-36070iBB11197911-198204

74565PLATE, TIRE CARRIER CAUTION

main74544-35050iBB10,RB11197708-197911

sub74544-35060

main74544-36010iBB11,RB1#197911-198204

sub74544-36020

74571PLATE, BRAKE FLUID CAUTION

main74571-27011iBB1#,RB1#197708-198204

sub74571-27021

75479PLATE, OVER RUN, CAUTION

main74584-90500iRB13..21S,22S,25S,26S198008-198101

main74584-90501iBB11..21S,22S,25S,26S198008-198204

main74584-90504iRB13..21S,22S,25S,26S198101-198204

12 parts on this diagram · 1 diagram in section
