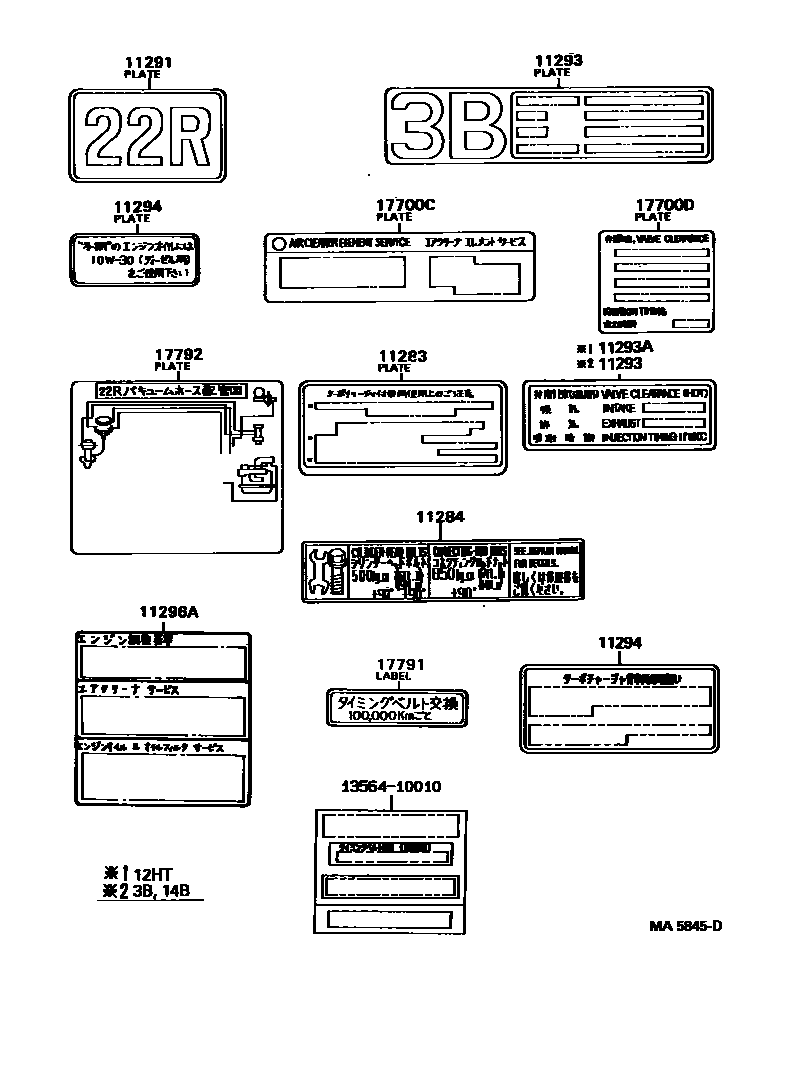

Toyota COASTER — CAUTION PLATE & NAME PLATE (ENGINE)

11283PLATE, TURBOCHARGER CAUTION

main11283-54020i12HT..HB31,32198510-199001

11284PLATE, ENGINE BOLT INFORMATION

main11284-17010i1H#..HDB20,3#,HZB3#199001-199301

sub11297-17010

main11284-56020i14B,3B..BB2#,31198808-199301

11291PLATE, ENGINE NAME

main11291-35010i22R..RB20198205-198408

22R

main11291-35030i22R..RB20198408-199301

main11291-68010i12HT..HB31,32198806-199001

11293PLATE, ENGINE CAUTION & ENGINE NAME

main11293-56080i14B,3B..BB2#,31198808-199301

main11293-58010i3B..BB20,30198205-198302

3B

main11293-58020i3B..BB2#,3#198302-198808

3B

main11293-68011i2H..HB30,36198205-199001

11293APLATE, ENGINE CAUTION

main11293-68020i12HT..HB31,32198510-199001

11294PLATE, ENGINE CAUTION, NO.2

main11294-54040i14B,3B..BB2#,3#199103-199301

COLD SPEC

main11294-56010i12HT,14B,3B,2H..BB2#,3#,HB3#198205-199103

COLD SPEC

main11294-58030i1HDT..HDB20,3#199001-199301

11296ALABEL, ENGINE SERVICE INFORMATION

main11296-17010i1H#..HDB20,3#,HZB3#199001-199301

17700CPLATE, AIR CLEANER CAUTION (FOR ENGINE MODEL)

main17791-64020i12HT,22R,14B,3B,1H#,2H..BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198307-199301

main17791-68010i22R,3B,2H..BB2#,3#,HB30,RB20198205-198307

17700DPLATE, ENGINE CAUTION

main11293-35030i22R..RB20198205-198408

main11293-35050i22R..RB2#198408-199301

17791LABEL, MAINTENANCE INFORMATION

main17791-55010i1H#..HDB20,3#,HZB3#199001-199301

17792PLATE, ENGINE VACUUM HOSE INFORMATION

main17792-35260i22R..RB20198205-198208

main17792-35261i22R..RB20198208-198408

main17792-35620i22R..RB2#198408-199301

1356410010LABEL, TIMING BELT REPLACEMENT INFORMATION

main13564-10010

12 parts on this diagram · 1 diagram in section
