Toyota COASTER — CARBURETOR ASSEMBLY

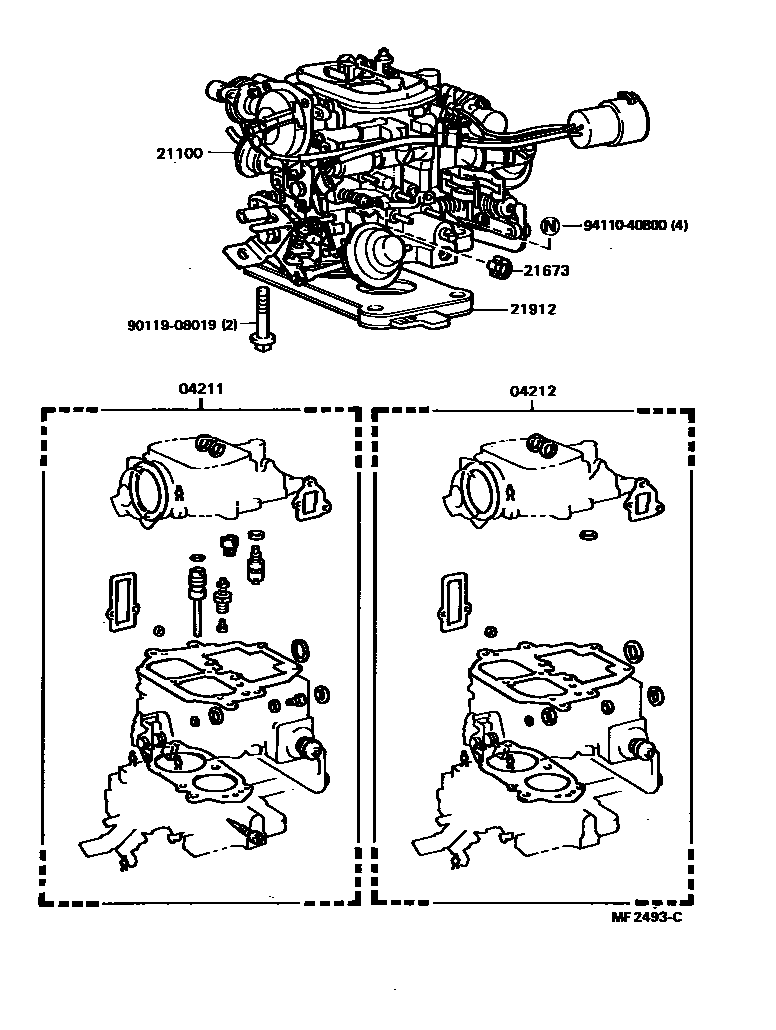

Parts diagram

04211CARBURETOR KIT

main04211-35030i198205-198208

main04211-35031i198208-198408

main04211-35060i198408-199301

04212GASKET KIT, CARBURETOR

main04212-35020i198205-198208

main04212-37041i198208-198408

main04212-37060i198408-199301

21100CARBURETOR ASSY

main21100-35190i198205-198208

main21100-35191i198208-198408

main21100-35330i198408-199301

21673CAP, IDLE LIMIT

main21673-13280i198408-199301

main21673-38020i198205-198408

21912INSULATOR, CARBURETOR HEAT

main21912-37020i198205-198208

main21912-37030i198208-199301

9011908019

main90119-08019

9411040800

main94110-40800

7 parts on this diagram · 1 diagram in section

CARBURETOR ASSEMBLY for Toyota COASTER

This section contains 7 genuine Toyota parts for the CARBURETOR ASSEMBLY system of the Toyota COASTER. Key components include: CARBURETOR KIT, GASKET KIT, CARBURETOR, CARBURETOR ASSY, CAP, IDLE LIMIT, INSULATOR, CARBURETOR HEAT.
