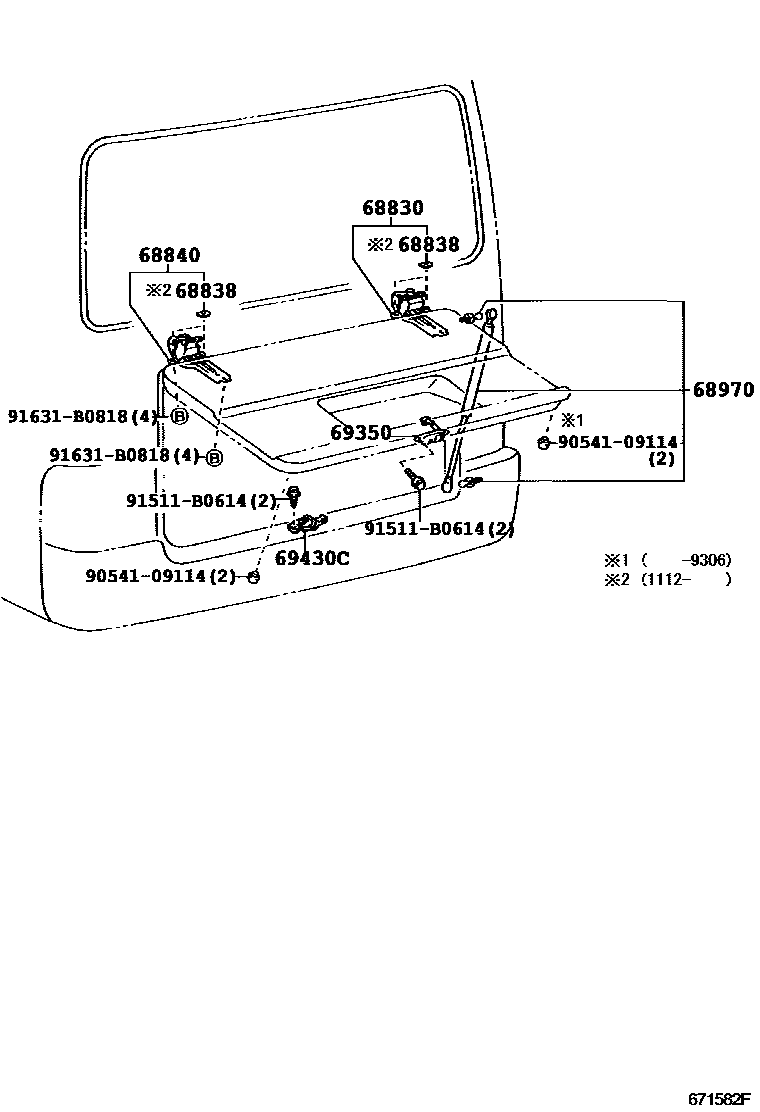

Toyota COASTER — BACK DOOR LOCK & HINGE
68830HINGE ASSY, BACK DOOR, RH
main68801-36010iHZB40..4FC..IV5; HZB50..DX..5F;HZB4#,50..HRF..(08S,19S,26S,29S)..WC..CBU; HZB50..IV5;HZB40..SRF..LX;HZB40..5F..IV5;HZB50..STD..5F;HZB50..(DX,STD)..4FC;BB58,BZB40,HDB50,HZB41,46,56..09S,10S,29S,39S;BZB50,HDB51,HZB40..(DX,EX,STD,SULNG)..(CBU,IV5)199907-200408
main68803-36010iHZB40,50..(26S,29S)..5F;BB40,HDB5#,HZB41..DX,EX,GX,LX,SULNG; HZB50..GX..4FC199304-199505
68838PAD, BACK DOOR HINGE, NO.1
68840HINGE ASSY, BACK DOOR, LH
main68801-36020iHZB40..4FC..IV5;HZB40,50..(26S,29S)..CBU;BB40,5#,HDB5#,HZB41..(15S,20S,26S,29S)..(CBU,IV5)199301-199907
main68803-36010iHZB40..4FC..IV5; HZB40..DX;HZB41,50..IV5;HZB40..5F..IV5;HZB40..SRF..LX;HZB50..DX..4FC;BB58,HDB5#,HZB46,56..(09S,20S,24S,26S,29S)..(CBU,IV5); HZB50..DX..5F;HZB4#,50..HRF..(08S,19S,26S,29S)..WC..CBU199907-200408
68970STAY ASSY, BACK DOOR, RH
69350LOCK ASSY, BACK DOOR
main69350-36010iHZB40,50..(26S,29S)..5F;BB40,HDB5#,HZB41..DX,EX,GX,LX,SULNG; HZB50..GX..4FC199304-199505
69430CSTRIKER ASSY, BACK DOOR LOCK
main69430-28010iHZB40,50..(26S,29S)..5F;BB40,HDB5#,HZB41..DX,EX,GX,LX,SULNG; HZB40..4FC; HZB50..GX..4FC199304-199309
main69430-90B02iXZB50..29S..WC..(5F,6FC)..CBU;BZB40,50,XZB40,51..(26S,29S)..(5F,6FC)..CBU200408-201501
main69430-95702iHZB40..4FC..IV5; HZB40..DX..4FC;HZB40..SRF..LX..4FC;HZB40,50..(26S,29S)..5F;BB58,HDB5#,HZB41,46,56..CBU,IV5;HZB40,50..(19S,29S)..(DX,LX)..4FC; HZB40..HRF..26S..WC..4FC..CBU; HZB50..GX..4FC199907-200408
9054109114
main90541-09114
91511B0614
main91511-B0614
91631B0818
main91631-B0818
9 parts on this diagram · 4 diagrams in section
BACK DOOR LOCK & HINGE for Toyota COASTER
This section contains 65 genuine Toyota parts for the BACK DOOR LOCK & HINGE system of the Toyota COASTER. Key components include: STOPPER SUB-ASSY, BACK DOOR, UPPER, STOPPER SUB-ASSY, BACK DOOR, LOWER, ANTI-RATTLE, BACK DOOR, UPPER, ANTI-RATTLE, BACK DOOR, LOWER, HINGE ASSY, BACK DOOR, RH.
