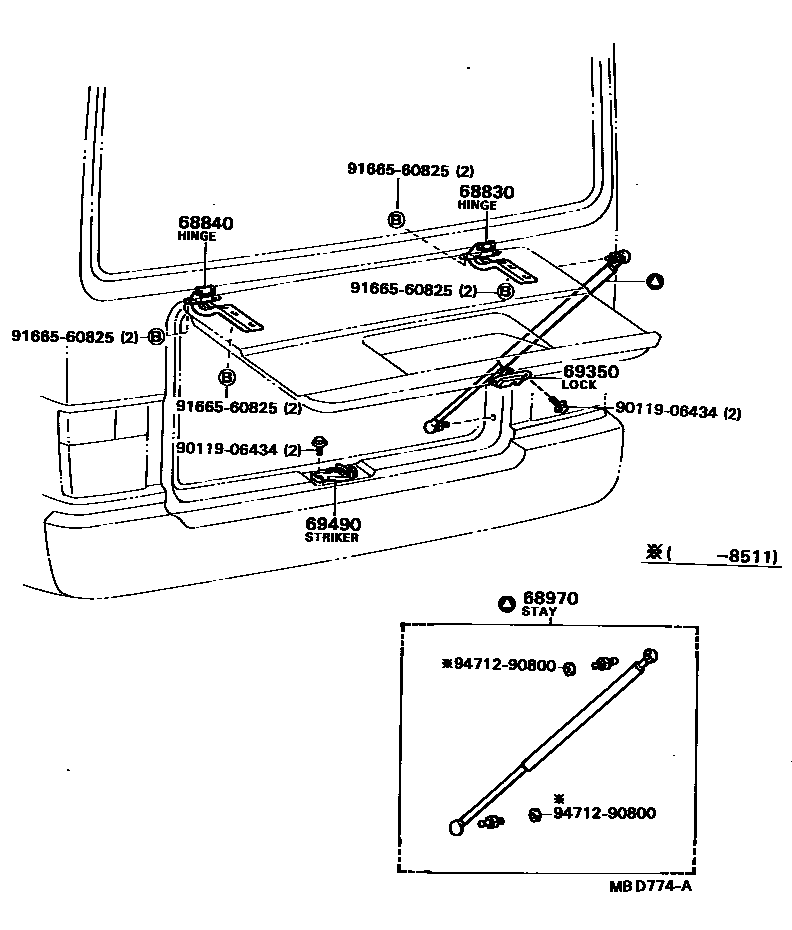

Toyota COASTER — BACK DOOR LOCK & HINGE

68830HINGE ASSY, BACK DOOR, RH

main68801-90B00i198205-199301

main68801-90B02i198304-198408

UPR,*SOBD

main68803-90B02i198408-198610

LWR,*SOBD

68840HINGE ASSY, BACK DOOR, LH

main68801-90B00i198205-199301

main68801-90B01i198408-198610

UPR,*SOBD

main68803-90B01i198408-198610

LWR,*SOBD

68970STAY ASSY, BACK DOOR, RH

main68950-39035i198205-198808

main68950-39045i198205-198808

W/BACK DOOR TRIM BOARD

main68950-39185i198808-199301

main68950-39195i199001-199301

W/BACK DOOR TRIM BOARD

69350LOCK ASSY, BACK DOOR

main69350-90B00i198205-198808

main69350-90B01i198205-198808

main69350-90B05i198808-199301

main69350-90B06i198808-199301

69490STRIKER ASSY, BACK DOOR LOCK

main69430-90B00i198205-198808

main69430-90B02i198808-199301

main69430-90B03i198808-199301

main69430-95701i198205-198808

9011906434

main90119-06434

9166560825

main91665-60825

9471290800

main94712-90800

8 parts on this diagram · 3 diagrams in section

BACK DOOR LOCK & HINGE for Toyota COASTER

This section contains 56 genuine Toyota parts for the BACK DOOR LOCK & HINGE system of the Toyota COASTER. Key components include: HINGE ASSY, BACK DOOR, UPPER, HINGE ASSY, BACK DOOR, LOWER, STOPPER SUB-ASSY, BACK DOOR, UPPER, STOPPER SUB-ASSY, BACK DOOR, LOWER, ANTI-RATTLE, BACK DOOR, UPPER.
