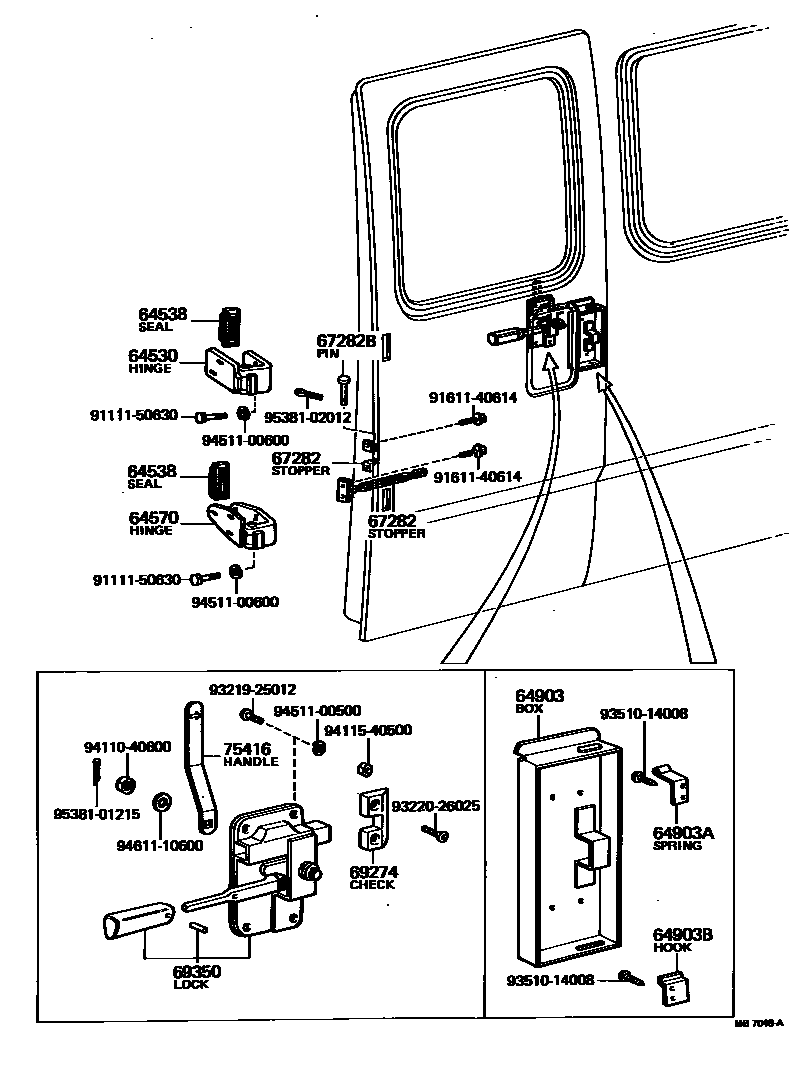

Toyota COASTER — BACK DOOR LOCK & HINGE
64530HINGE ASSY, BACK DOOR, UPPER
64538SEAL, BACK DOOR HINGE
64570HINGE ASSY, BACK DOOR, LOWER
64903BOX SUB-ASSY, BACK DOOR INNER HANDLE
64903ASPRING, BACK DOOR INNER HANDLE BOX
64903BHOOK, BACK DOOR INNER HANDLE BOX
67282STOPPER, BACK DOOR, NO.1
DOOR SIDE
BODY SIDE
67282BPIN, BACK DOOR STOPPER, DOOR SIDE
69274CHECK, BACK DOOR LOCK
69350LOCK ASSY, BACK DOOR
75416HANDLE, TAIL GATE, INSIDE
9111150630
main91111-50630
9161140614
main91611-40614
9321925012
main93219-25012
9322026025
main93220-26025
9351014008
main93510-14008
9411040600
main94110-40600
9411540500
main94115-40500
9451100500
main94511-00500
9451100600
main94511-00600
9461110600
main94611-10600
9538101215
main95381-01215
9538102012
main95381-02012
23 parts on this diagram · 1 diagram in section
BACK DOOR LOCK & HINGE for Toyota COASTER
This section contains 23 genuine Toyota parts for the BACK DOOR LOCK & HINGE system of the Toyota COASTER. Key components include: HINGE ASSY, BACK DOOR, UPPER, SEAL, BACK DOOR HINGE, HINGE ASSY, BACK DOOR, LOWER, BOX SUB-ASSY, BACK DOOR INNER HANDLE, SPRING, BACK DOOR INNER HANDLE BOX.
