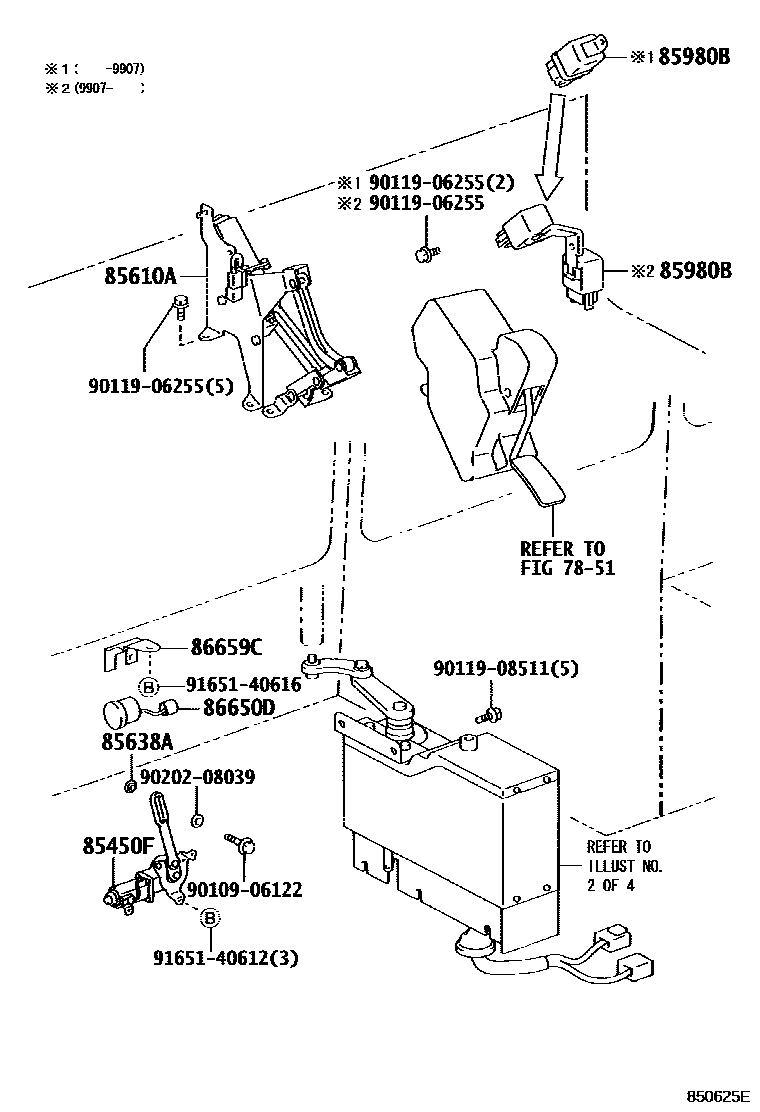

Toyota COASTER — AUTOMATIC DOOR

0001 1������ �� 0002 1���� �� 0003 1������ �� 0004 1���� �� 0005 1������ �� ���� 0006 1���� �� ���� 0007 1���� �� ���� 0008 1���� 0009 1����������� & ��� & ���������

7851

85450FMOTOR ASSY, DOOR CONTROL

main85450-36030iBZB40,50..LX200203-201501

main85450-36040iXZB4#,5#..EX,GX,LX199301-201501

85610AACTUATOR ASSY, ACCEL INTERLOCK

main85610-36020iBB4#,HDB5#,HZB4#,5#199301-199907

main85610-36060iXZB51..SULNG..6FC199907-201501

main85610-36070iBZB40,50200203-201501

85638ASPACER, AUTOMATIC DOOR

main85638-36010iHZB40,50..GX,LX;BB4#,HDB5#,HZB41,56..(EX,GX,LX,SULNG)..CBU199301-201501

85980BRELAY ASSY, DOOR CONTROL (FOR AUTOMATIC DOOR)

main85980-36090iBB58..WC;BB4#,55,HDB5#,HZB4#,5#..CBU,IV5199301-199907

sub85980-36091

main85980-36110iBB58,HDB5#,HZB4#,5#..09S,10S,19S,20S,24S,26S,29S,39S,49S199907-200408

sub85980-36111

main85980-36110iXZB51..SULNG200408-200809

24V

sub85980-36111

main85980-36111iXZB4#,5#201501

main85980-36111iXZB50..WOC;XZB51..IV5;XZB40..5F..IV5200810-201501

24V

main85980-36120iBZB40,50..LX200408-201501

12V

main85980-36120iBZB40,50200203-200408

86650DBUZZER ASSY

main86650-36050iBZB40,50..LX200408-201501

12V

main86650-36050iBZB40,50200203-200408

main86650-36060iXZB50..WOC;XZB40..5F..IV5;XZB51..6FC..IV5200408-201501

24V

main86650-36060iHZB40,50..26S,29S;BB4#,HDB5#,HZB41,56..(09S,15S,20S,26S,29S)..CBU199301-200408

86659CBRACKET, BUZZER, AUTOMATIC DOOR

main86659-36010iBB58,BZB40,50,HDB5#,HZB4#,5#..(09S,10S,19S,20S,24S,26S,29S,39S,49S)..(CBU,IV5)199301-201501

9010906122

main90109-06122

9011906255

main90119-06255

9011908511

main90119-08511

9020208039

main90202-08039

9165140612

main91651-40612

9165140616

main91651-40616

13 parts on this diagram · 9 diagrams in section
