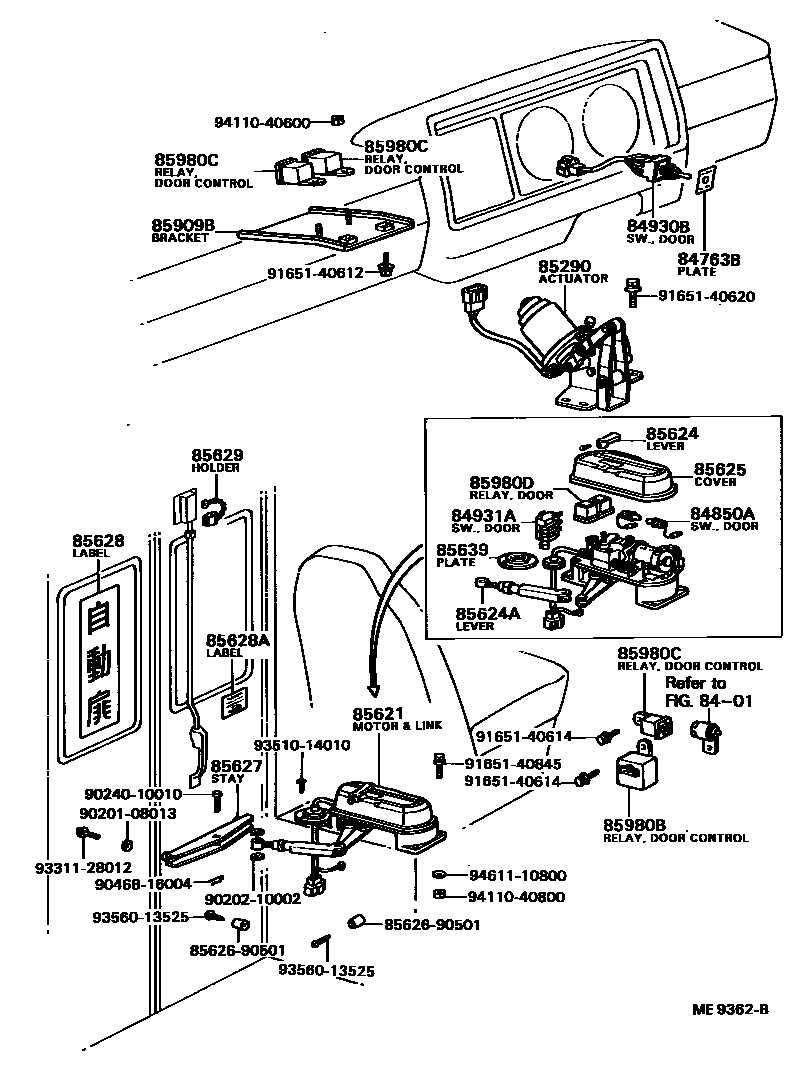

Toyota COASTER — AUTOMATIC DOOR
8401SWITCH & RELAY & COMPUTER
84763BPLATE, SWITCH
84850ASWITCH ASSY, DOOR OPENING
84930BSWITCH ASSY, DOOR CONTROL(FOR AUTOMATIC DOOR)
84931ASWITCH, AUTOMATIC DOOR CONTROL
85290ACTUATOR ASSY, ACCEL INTOR LOCK
85621MOTOR & LINK, AUTOMATIC DOOR REGULATOR
85624LEVER, AUTOMATIC DOOR REGULATOR, NO.1
85624ALEVER, AUTOMATIC DOOR REGULATOR, NO.2
85625COVER, AUTOMATIC DOOR REGULATOR
85627STAY, AUTOMATIC DOOR REGULATOR
main85627-90501iBB11..25S;BB11..26S..DLX;BB11..26S..STD..SRF; RB13..25S;RB13..26S..DLX;RB13..26S..STD..SRF198008-198204
85628LABEL, AUTOMATIC DOOR, NO.1
85628ALABEL, AUTOMATIC DOOR, NO.2
85629HOLDER, AUTOMATIC DOOR
85639PLATE, AUTOMATIC DOOR
85909BBRACKET SUB-ASSY, RELAY
85980BRELAY ASSY, DOOR CONTROL (FOR AUTOMATIC DOOR)
85980CRELAY ASSY, DOOR CONTROL, NO.2 (FOR AUTOMATIC DOOR)
85980DRELAY ASSY, DOOR CONTROL, NO.3 (FOR AUTOMATIC DOOR)
8562690501RESISTER, AUTOMATIC DOOR
main85626-90501
9020108013
main90201-08013
9020210002
main90202-10002
9024010010
main90240-10010
9046816004
main90468-16004
9165140612
main91651-40612
9165140614
main91651-40614
9165140620
main91651-40620
9165140845
main91651-40845
9331128012
main93311-28012
9351014010
main93510-14010
9356013525
main93560-13525
9411040600
main94110-40600
9411040800
main94110-40800
9461110800
main94611-10800
34 parts on this diagram · 1 diagram in section
AUTOMATIC DOOR for Toyota COASTER
This section contains 34 genuine Toyota parts for the AUTOMATIC DOOR system of the Toyota COASTER. Key components include: SWITCH & RELAY & COMPUTER, PLATE, SWITCH, SWITCH ASSY, DOOR OPENING, SWITCH ASSY, DOOR CONTROL(FOR AUTOMATIC DOOR), SWITCH, AUTOMATIC DOOR CONTROL.
