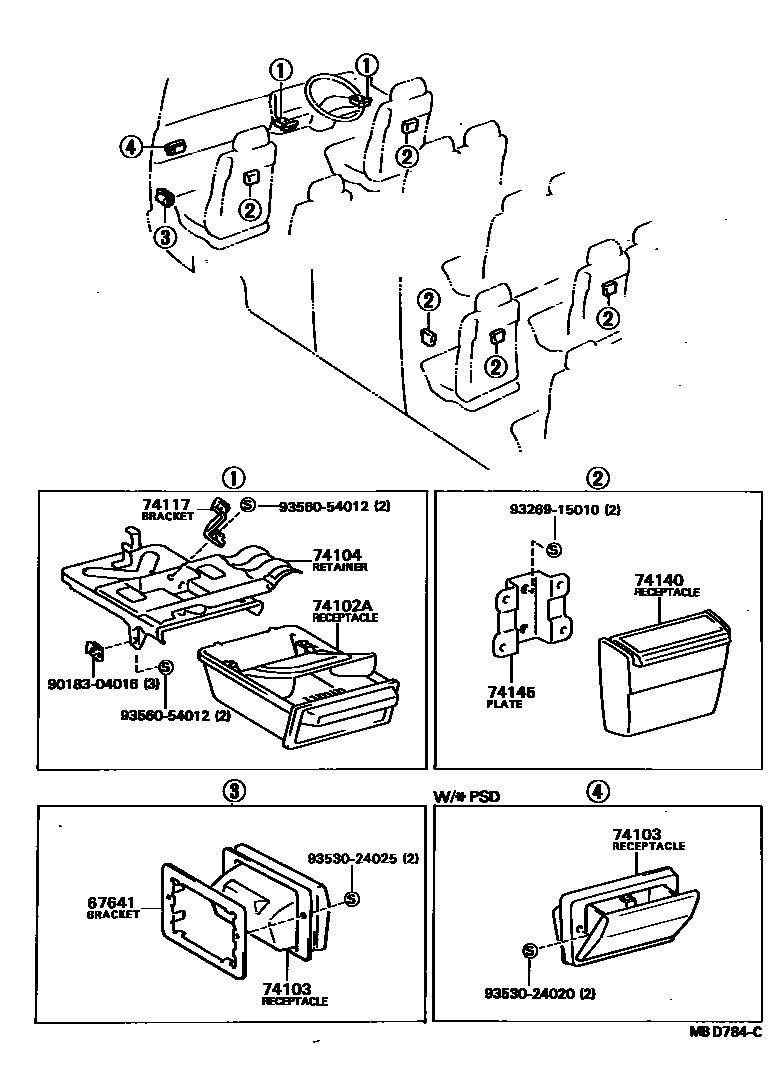

Toyota COASTER — ASH RECEPTACLE
67641BRACKET, ASH RECEPTACLE SET
74102ARECEPTACLE ASSY, FRONT ASH
SABLE,SABLE
74103RECEPTACLE SUB-ASSY, ASH, NO.1
W/*PSD
MAROON,MAROON; W/*PSD,MAROON,MAROON
SABLE,SABLE; W/*PSD,SABLE,SABLE
74104RETAINER SUB-ASSY, ASH RECEPTACLE, NO.1
RH,W/MECHANICAL *AUD
RH,W/MECHANICAL *AUD
74117BRACKET, FRONT ASH RECEPTACLE MOUNTING
74140RECEPTACLE ASSY, ASH(FOR SEAT)
main74130-90B00×13iBB20,21,HB30,31,RB20..(DLX,EX)..26S; BB20,21,RB20..26S; BB30,31,HB30,31..29S; HB30,31..DLX198205-198808
W/O RECLINING SEAT; W/RECLINING SEAT
main74130-90B00-06×11iBB21,23,24,HB31,RB20..(DLX,EX)..26S; BB21,RB20..26S; BB26,HB36,HZB36; BB26,HB36,HZB36..WC; BB31,HB30,31,HDB30,HZB30..29S; HB30,31,HDB30,HZB30..DLX; HB32,HDB31..26S; HB32..29S198808-199301
SABLE,SABLE; W/O RECLINING SEAT,SABLE,SABLE; W/RECLINING SEAT,SABLE,SABLE
SABLE,SABLE
74145PLATE, REAR ASH RECEPTACLE
main74145-90B00×11iBB20,21,23,24,HB30,31,32,RB20..(DLX,EX,EXS)..(20S,26S); BB20,21,RB20..26S; BB30,31,HB30,31,HDB30,HZB30..29S; HB30,31,HDB30,HZB30..DLX198205-199301
W/O RECLINING SEAT; W/RECLINING SEAT
9018304016
main90183-04016
9326915010
main93269-15010
9353024020
main93530-24020
9353024025
main93530-24025
9356054012
main93560-54012
12 parts on this diagram · 1 diagram in section
ASH RECEPTACLE for Toyota COASTER
This section contains 12 genuine Toyota parts for the ASH RECEPTACLE system of the Toyota COASTER. Key components include: BRACKET, ASH RECEPTACLE SET, RECEPTACLE ASSY, FRONT ASH, RECEPTACLE SUB-ASSY, ASH, NO.1, RETAINER SUB-ASSY, ASH RECEPTACLE, NO.1, BRACKET, FRONT ASH RECEPTACLE MOUNTING.
