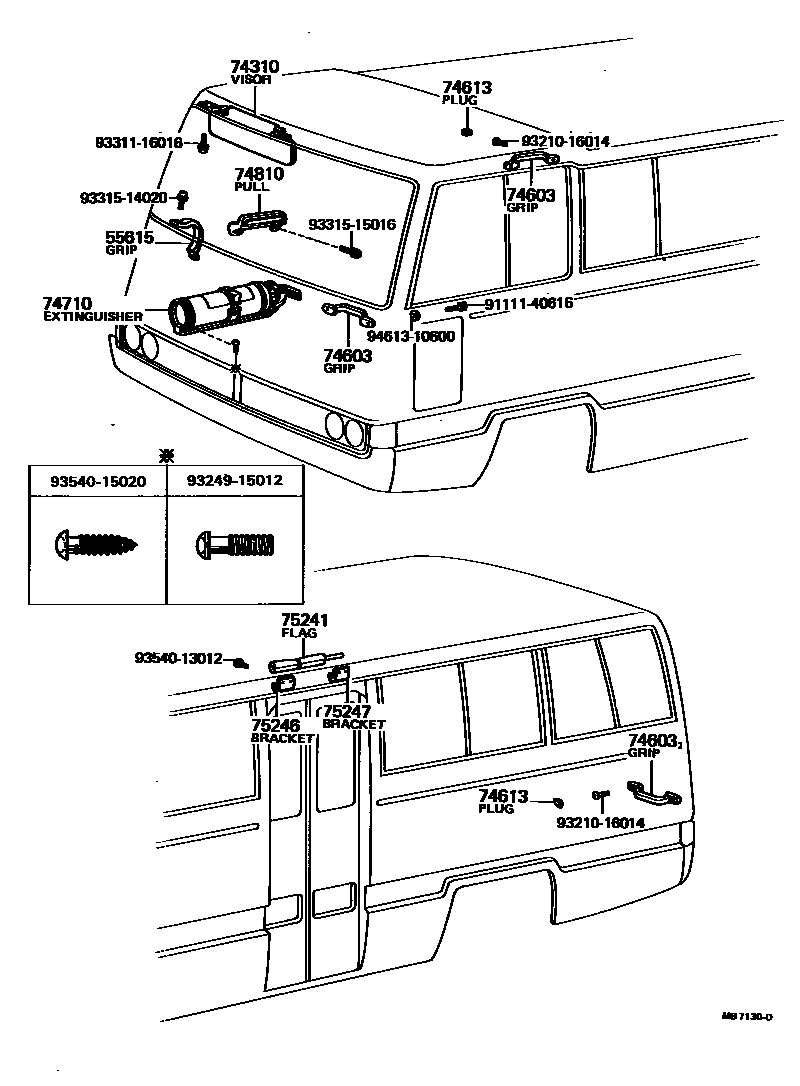

Toyota COASTER — ARMREST & VISOR

55615GRIP, ASSIST

main55615-90740iBB1#,RB1#197708-198204

74310VISOR ASSY, RH

main74340-90740iBB1#,RB1#197708-198204

74603GRIP SUB-ASSY, ASSIST, FRONT

main55380-90500iBB1#,RB1#..39C197708-198204

INSTRUMENT

main74603-20010-05iBB1#,RB1#..21S,22S,25S,26S197708-198204

ROOF,BEIGE,BEIGE

sub74610-20030

sub74617-14010

74613PLUG, ASSIST GRIP

main74617-12020-05×2iBB1#,RB1#197708-198204

BEIGE,BEIGE

sub74617-12010

74710EXTINGUISHER ASSY

main74710-90740iBB10,RB11197708-197911

main74710-90741iBB11,RB1#..21S,22S,25S,26S197911-198204

main74710-90743iBB11,RB1#..39C197911-198204

74810PULL ASSY, DOOR, INSIDE

main69151-95A00iBB1#,RB1#197708-198204

sub69151-95600

75241FLAG, RED

main75241-90025iBB1#,RB1#..39C197708-198204

75246BRACKET, RED FLAG SET, NO.1

main75246-90025iBB1#,RB1#..39C197708-198204

75247BRACKET, RED FLAG SET, NO.2

main75245-90025iBB1#,RB1#..39C197708-198204

9111140616

main91111-40616

9321016014

main93210-16014

9324915012

main93249-15012

9331116016

main93311-16016

9331514020

main93315-14020

9331515016

main93315-15016

9354013012

main93540-13012

9354015020

main93540-15020

9461310600

main94613-10600

18 parts on this diagram · 1 diagram in section
