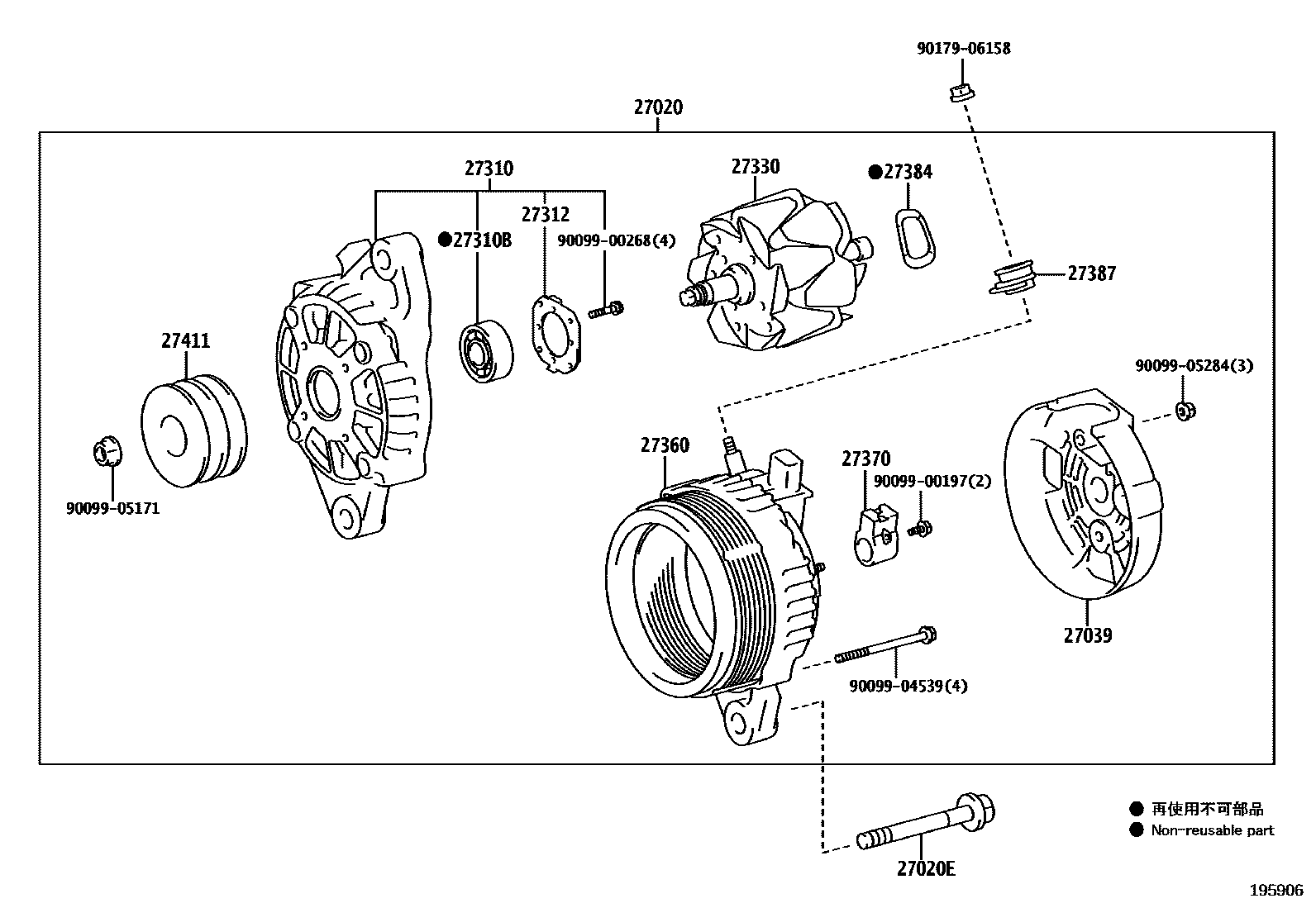

Toyota COASTER — ALTERNATOR
27020ALTERNATOR ASSY
main27060-78320iN04C..XZB60..5F;N04C..XZB60..09S;N04C..XZB70..21S,29S,49S;N04C..XZB70,80..(13S,24S)..HDCR202201-202312
27020EBOLT(FOR ALTERNATOR)
mainSZ10510067iN04C..XZB60..09S;N04C..XZB60,70..5F;N04C..XZB70,80..(13S,24S)..HDCR;N04C..XZB70..(21S,29S,49S)..6FC201701-202201
27039COVER, ALTERNATOR REAR END
27310FRAME ASSY, DRIVE END, ALTERNATOR
main27310-EV030iN04C..XZB60..09S;N04C..XZB60,70..5F;N04C..XZB70,80..(13S,24S)..HDCR;N04C..XZB70..(21S,29S,49S)..6FC201701-202201
27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)
main90099-10223iN04C..XZB60..09S;N04C..XZB60,70..5F;N04C..XZB70,80..(13S,24S)..HDCR;N04C..XZB70..(21S,29S,49S)..6FC201701-202201
27312PLATE, RETAINER
main27312-72100iN04C..XZB60..09S;N04C..XZB60,70..5F;N04C..XZB70,80..(13S,24S)..HDCR;N04C..XZB70..(21S,29S,49S)..6FC201701-202201
27330ROTOR ASSY, ALTERNATOR
main27330-58460iN04C..XZB60..09S;N04C..XZB60,70..5F;N04C..XZB70,80..(13S,24S)..HDCR;N04C..XZB70..(21S,29S,49S)..6FC201908-202201
27360COIL ASSY, ALTERNATOR
27370HOLDER ASSY, ALTERNATOR BRUSH
27384WASHER
27387INSULATOR, TERMINAL
main27387-20130iN04C..XZB60..09S;N04C..XZB60,70..5F;N04C..XZB70,80..(13S,24S)..HDCR;N04C..XZB70..(21S,29S,49S)..6FC201701-202201
27411PULLEY, ALTERNATOR
main27411-78240iN04C..XZB60..09S;N04C..XZB60,70..5F;N04C..XZB70,80..(13S,24S)..HDCR;N04C..XZB70..(21S,29S,49S)..6FC201908-202201
9009900197
main90099-00197
9009900268
main90099-00268
9009904539
main90099-04539
9009905171
main90099-05171
9009905284
main90099-05284
9017906158
main90179-06158
18 parts on this diagram · 2 diagrams in section
ALTERNATOR for Toyota COASTER
This section contains 22 genuine Toyota parts for the ALTERNATOR system of the Toyota COASTER. Key components include: ALTERNATOR ASSY, BOLT(FOR ALTERNATOR), COVER, ALTERNATOR REAR END, FRAME ASSY, DRIVE END, ALTERNATOR, BEARING(FOR ALTERNATOR DRIVE END FRAME).
