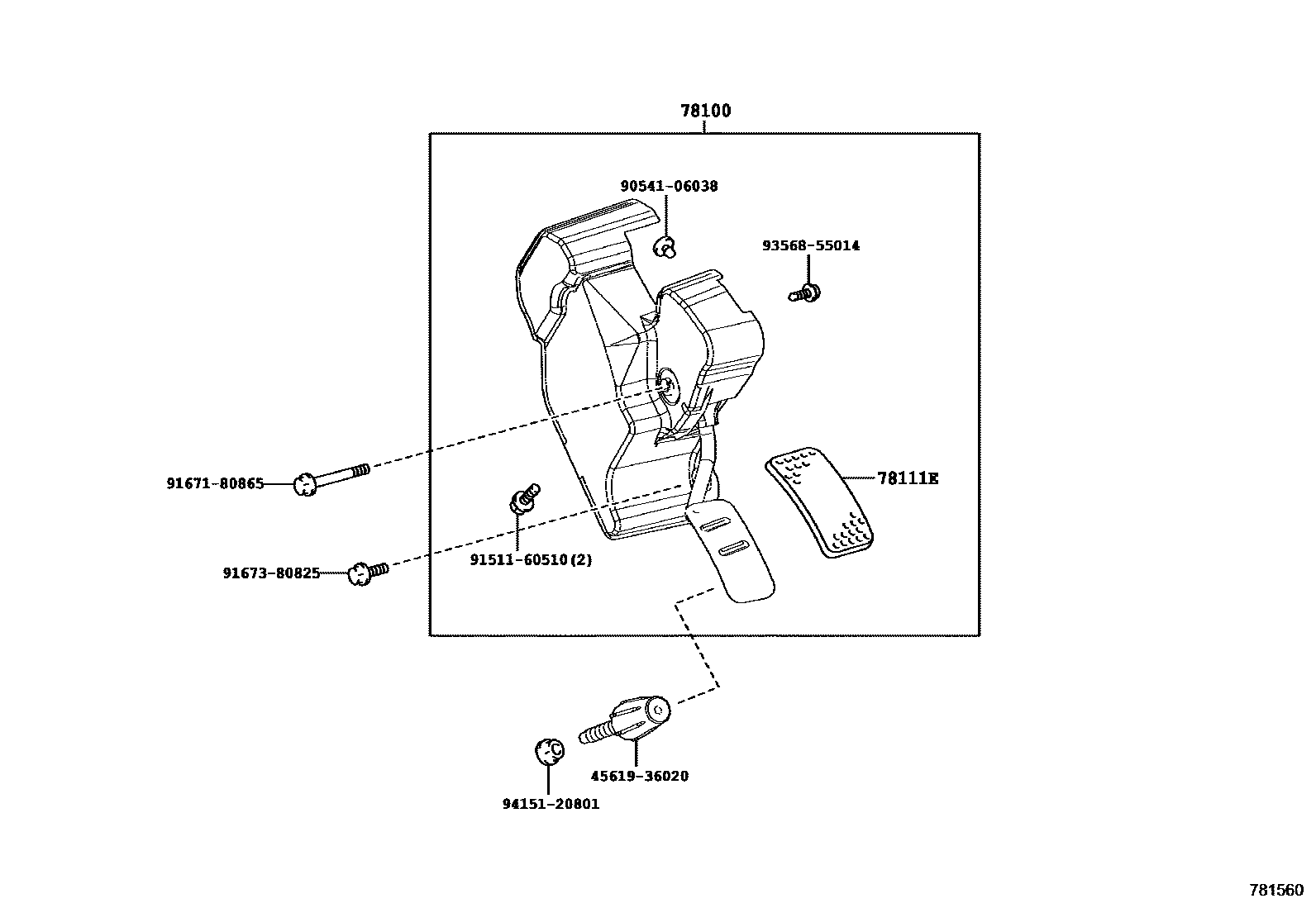

Toyota COASTER — ACCELERATOR LINK

78100LINK ASSY, ACCELERATOR

main78010-36060iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412

78111EPAD, ACCELERATOR PEDAL

main78111-95110iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412

4561936020COVER, KNUCKLE STOPPER

main45619-36020

9054106038

main90541-06038

9151160510

main91511-60510

9167180865

main91671-80865

9167380825

main91673-80825

9356855014

main93568-55014

9415120801

main94151-20801

9 parts on this diagram · 1 diagram in section
