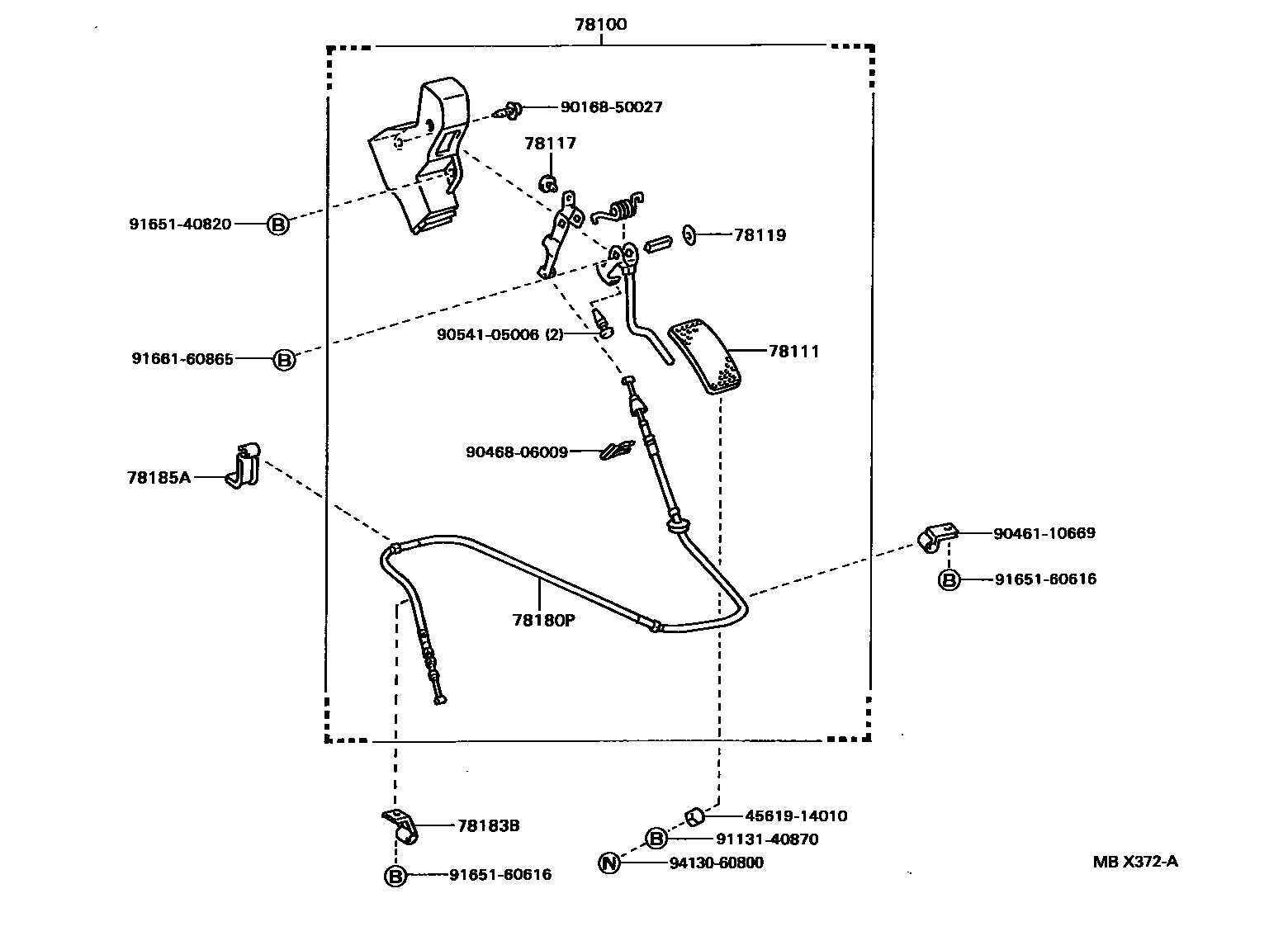

Toyota COASTER — ACCELERATOR LINK

0001 1 0002 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

78100LINK ASSY, ACCELERATOR

main78010-36010iBB58,HDB5#199907-200406

main78010-36011iBB58,HDB5#200407-200408

main78010-36030iXZB4#,5#200408-201501

main78010-36031iXZB4#,5#201501-201509

main78010-36032iXZB4#,5#201510-201611

sub78010-36060

main78100-36010iBB4#199301-199705

main78100-36011iBB4#199705-199907

main78100-36020iHDB5#,HZB4#,5#..(DSL2,TD2)..4FC199301-199907

sub90468-06009

main78100-36070iHDB5#,HZB4#,5#..(DSL2,TD2)..5F199301-199907

sub90468-06009

main78100-36110iHDB5#..MTM199505-199907

main78100-36120iHDB5#..MTM199505-199907

main78100-36150iBB5#199512-199907

78111PEDAL, ACCELERATOR

main78111-95110iBB4#,5#,HDB5#,HZB4#,5#199301-199907

78117CUSHION (FOR ACCELERATOR ROD)

main90541-06036iBZB40,50..LX200408-201501

main90541-06038iXZB51..SULNG200503-200512

78119STOPPER, ACCELERATOR PEDAL ROD

main78119-95J00iBB4#,5#,HDB5#,HZB4#,5#199301-199907

sub78119-37010

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-36010iBB4#199301-199705

main78180-36011iBB4#199705-199907

main78180-36020iHZB4#,5#199907-200408

main78180-36070iHZB4#,5#..5F199907-200408

main78180-36111iHDB5#..MTM199505-199907

main78180-36121iHDB5#..MTM199505-199907

main78180-36150iBB5#199512-199907

main78180-36270iBZB40,50201501

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-36010iBB4#,5#,HDB5#,HZB4#,5#199301-199907

main78183-36060iBZB40,50,HZB4#,5#200310-200408

78185ACLAMP, ACCELERATOR CONTROL CABLE, NO.2

main78183-37050iBB5#199512-199907

main78185-36010iHZB4#,5#199907-200408

main78185-36020iBB4#199301-199907

main78185-36051iHDB5#199505-199907

main78185-36090iBZB40,50..STD200408-201108

4561914010COVER, KNUCKLE STOPPER

main45619-14010

9016850027

main90168-50027

9046110669

main90461-10669

9046806009

main90468-06009

9054105006

main90541-05006

9113140870

main91131-40870

9165140820

main91651-40820

9165160616

main91651-60616

9166160865

main91661-60865

9413060800

main94130-60800

17 parts on this diagram · 9 diagrams in section
