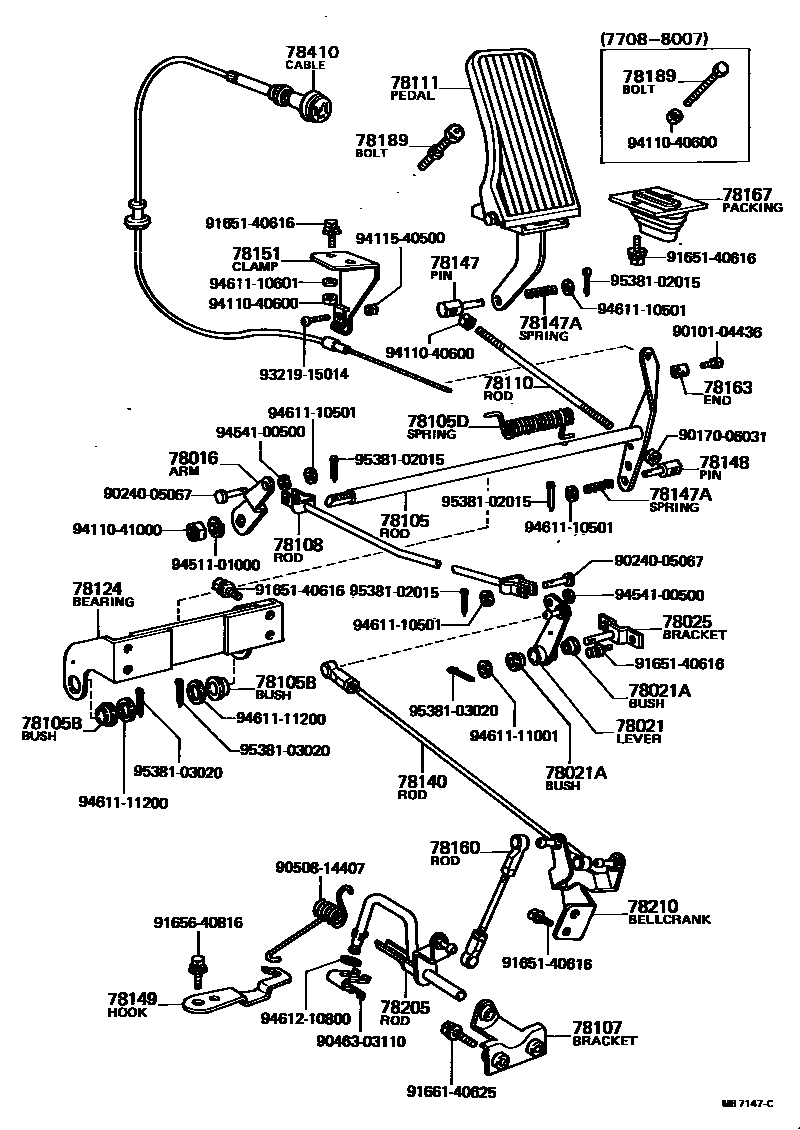

Toyota COASTER — ACCELERATOR LINK

0001 1 0002 1

78016ARM SUB-ASSY, ACCELERATOR LINK ROD

main78145-90502iBB10,RB11197708-197911

main78145-90503iBB11,RB1#197911-198204

78021LEVER SUB-ASSY, ACCELERATOR CONTROL, NO.1

main78106-90502iBB1#197708-198011

main78106-90740iRB1#197708-198101

main78106-90742iBB11198011-198204

main78106-90743iRB13198101-198204

78021ABUSH, ACCELERATOR CONTROL LEVER

main90386-10150×2iBB1#,RB1#197708-198204

78025BRACKET SUB-ASSY, ACCELERATOR CONNECTING ROD ARM

main78105-90500iBB1#,RB1#197708-198204

78105ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.3

main78103-90506iBB10,RB11197708-197911

main78103-90508iBB11197911-198006

78105BBUSH (FOR ACCELERATOR TORQUE ROD)

main90386-12017×2iBB11,RB1#197911-198204

main90386-12151×2iBB10,RB11197708-197911

78105DSPRING (FOR ACCELERATOR TORQUE ROD)

main90508-23035iBB11,RB1#197911-198204

main90508-23311iBB10,RB11197708-197911

78107BRACKET SUB-ASSY, ACCELERATOR TORQUE ROD

main78107-20031iRB1#197708-198204

78108ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.4

main78107-90502iBB1#,RB1#197708-198204

78110ROD ASSY, ACCELERATOR PEDAL

main78121-90504iBB1#,RB1#197708-198204

78111PEDAL, ACCELERATOR

main78110-90501iBB10,RB11197708-197911

main78110-90502iBB11,RB1#197911-198204

78124BEARING, ACCELERATOR LINK, NO.1

main78108-90500iBB10,RB11197708-197911

main78108-90502iBB11,RB1#197911-198204

78140ROD ASSY, ACCELERATOR, NO.3

main78140-90740iRB1#197708-198101

main78140-90741iRB13198101-198204

78147PIN, CONNECTING ROD, RH

main78147-90011iBB1#,RB1#197708-198204

78147ASPRING, ACCELERATOR ROD PIN

main90501-10005×2iBB1#,RB1#197708-198204

78148PIN, CONNECTING ROD, LH

main78145-90011iBB1#,RB1#197708-198204

78149HOOK, ACCELERATOR TORQUE ROD SPRING

main78149-20060iRB1#197708-198204

78151CLAMP, THROTTLE WIRE

main78151-90740iBB1#,RB1#197708-198204

78160ROD ASSY, ACCELERATOR, NO.4

main78160-90740iRB1#197708-198101

main78160-90741iRB13198101-198204

78163END, FLEXIBLE WIRE

main78163-55020iBB1#,RB1#197708-198204

78167PACKING, ACCELERATOR PEDAL HINGE

main78167-90503iBB1#,RB1#197708-198204

78189BOLT, ACCELERATOR PEDAL STOPPER

main78107-95A00iBB11,RB1#198007-198204

main78119-90500iBB11197911-198007

EXHAUST BRAKE

main78119-90501iBB11198007-198204

EXHAUST BRAKE

main91131-40650iBB1#,RB1#197708-198007

78205ROD SUB-ASSY, ACCELERATOR TORQUE

main78205-90740iRB11197708-197710

main78205-90741iRB1#197710-198101

main78205-90742iRB13198101-198204

78210BELLCRANK ASSY, ACCELERATOR

main78210-90740iRB1#197708-198101

main78210-90741iRB13198101-198204

78410CABLE ASSY, THROTTLE CONTROL

main78410-90504iBB1#,RB1#197708-198204

9010104436

main90101-04436

9017006031

main90170-06031

9024005067

main90240-05067

9046303110

main90463-03110

9050814407

main90508-14407

9165140616

main91651-40616

9165640816

main91656-40816

9166140625

main91661-40625

9321915014

main93219-15014

9411040600

main94110-40600

9411041000

main94110-41000

9411540500

main94115-40500

9451101000

main94511-01000

9454100500

main94541-00500

9461110501

main94611-10501

9461110601

main94611-10601

9461111001

main94611-11001

9461111200

main94611-11200

9461210800

main94612-10800

9538102015

main95381-02015

9538103020

main95381-03020

46 parts on this diagram · 2 diagrams in section
