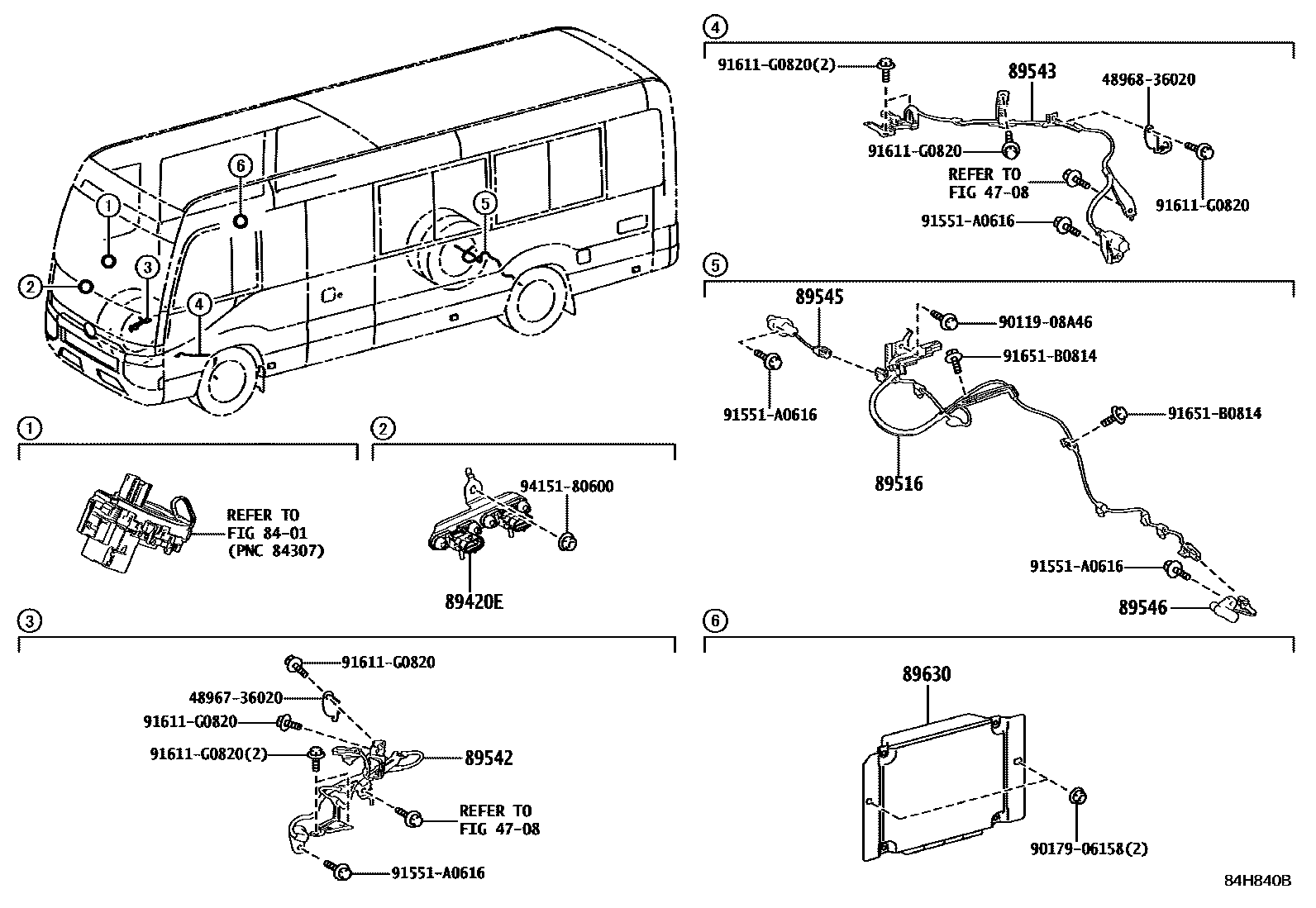

Toyota COASTER — ABS & VSC

4708

8401

89420ESENSOR ASSY, VACUUM

main89420-36060iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412

89516WIRE, SKID CONTROL SENSOR

main89516-36080iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412

89542SENSOR, SPEED, FRONT RH

main89542-36070iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202312

main89542-V4010iGDB60,70,80202201-202412

89543SENSOR, SPEED, FRONT LH

main89543-36070iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202312

main89543-36080iGDB60,70,80202201-202412

89545SENSOR, SPEED, REAR RH

main89545-36010iXZB60,70201701-201806

sub89545-36020

main89545-36020iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201807-202412

89546SENSOR, SPEED, REAR LH

main89546-36010iXZB60,70201701-201806

sub89546-36020

main89546-36020iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201807-202412

89630COMPUTER ASSY, TRANSLATE

main89630-36011iXZB60,70,80201908-201912

sub89630-36012

main89630-36012iXZB60,70,80202001-202007

sub89630-V4010

main89630-V4010iXZB60,70,80202007-202107

main89630-V4011iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC202108-202201

main89630-V4020iXZB60..5F;XZB60..09S;XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR202201-202312

4896736020END, SENSOR CONNECTING ROD, NO.1

main48967-36020

4896836020END, SENSOR CONNECTING ROD, NO.2

main48968-36020

9011908A46

main90119-08A46

9017906158

main90179-06158

91551A0616

main91551-A0616

91611G0820

main91611-G0820

91651B0814

main91651-B0814

9415180600

main94151-80600

17 parts on this diagram · 1 diagram in section
