Toyota COASTER — ABS & VSC
88263ARELAY, SKID CONTROL
MOTOR RELAY
SOLENOID RELAY
88266BCLAMP, SKID CONTROL SENSOR, NO.1
88266CCLAMP, SKID CONTROL SENSOR, NO.2
88267BRACKET, SKID CONTROL COMPUTER, NO.1
88268BRACKET, SKID CONTROL COMPUTER, NO.2
89278CRELAY, SKID CONTROL
89540COMPUTER ASSY, SKID CONTROL
89542SENSOR, SPEED, FRONT RH
89543SENSOR, SPEED, FRONT LH
9011906610
main90119-06610
9011908A46
main90119-08A46
9015950193
main90159-50193
9161160820
main91611-60820
9165140616
main91651-40616
9165160814
main91651-60814
91651B0625
main91651-B0625
91651B0820
main91651-B0820
91652B0625
main91652-B0625

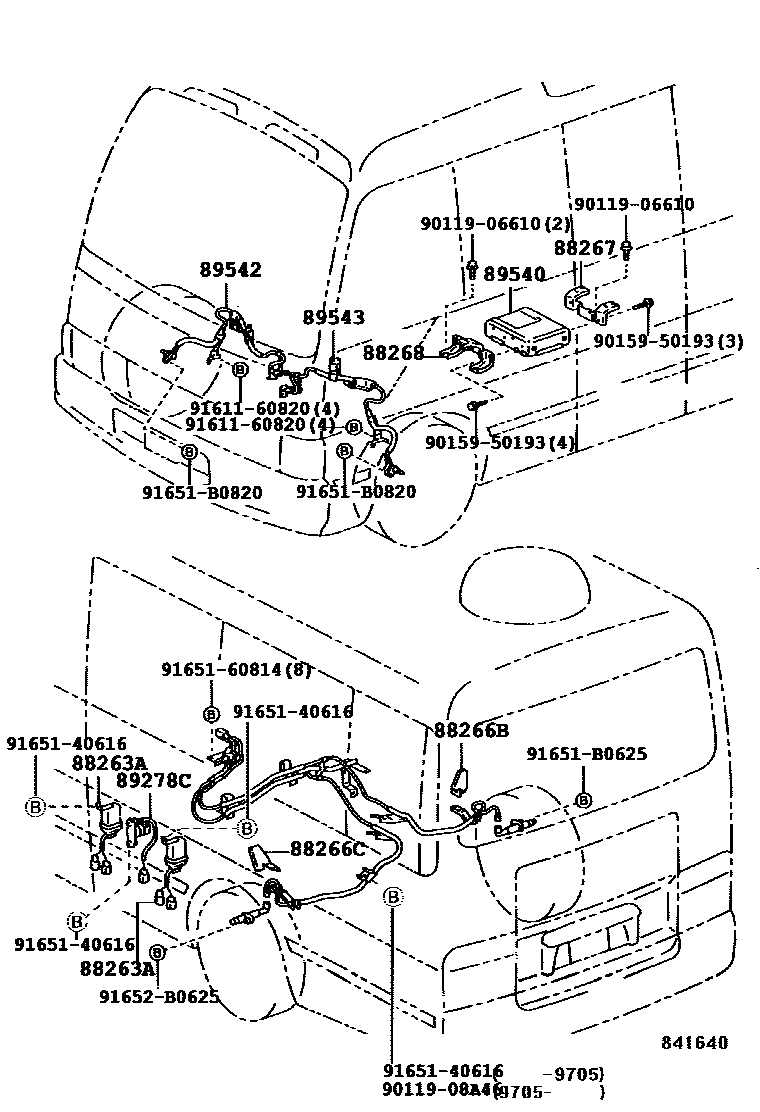

18 parts on this diagram · 3 diagrams in section
ABS & VSC for Toyota COASTER
This section contains 32 genuine Toyota parts for the ABS & VSC system of the Toyota COASTER. Key components include: SPEED SENSOR KIT, ABS, RELAY, SKID CONTROL, RELAY, SKID CONTROL NO.2, CLAMP, SKID CONTROL SENSOR, NO.1, CLAMP, SKID CONTROL SENSOR, NO.2.
