Toyota COASTER — WINDSHIELD WIPER

0001 1 0002 1

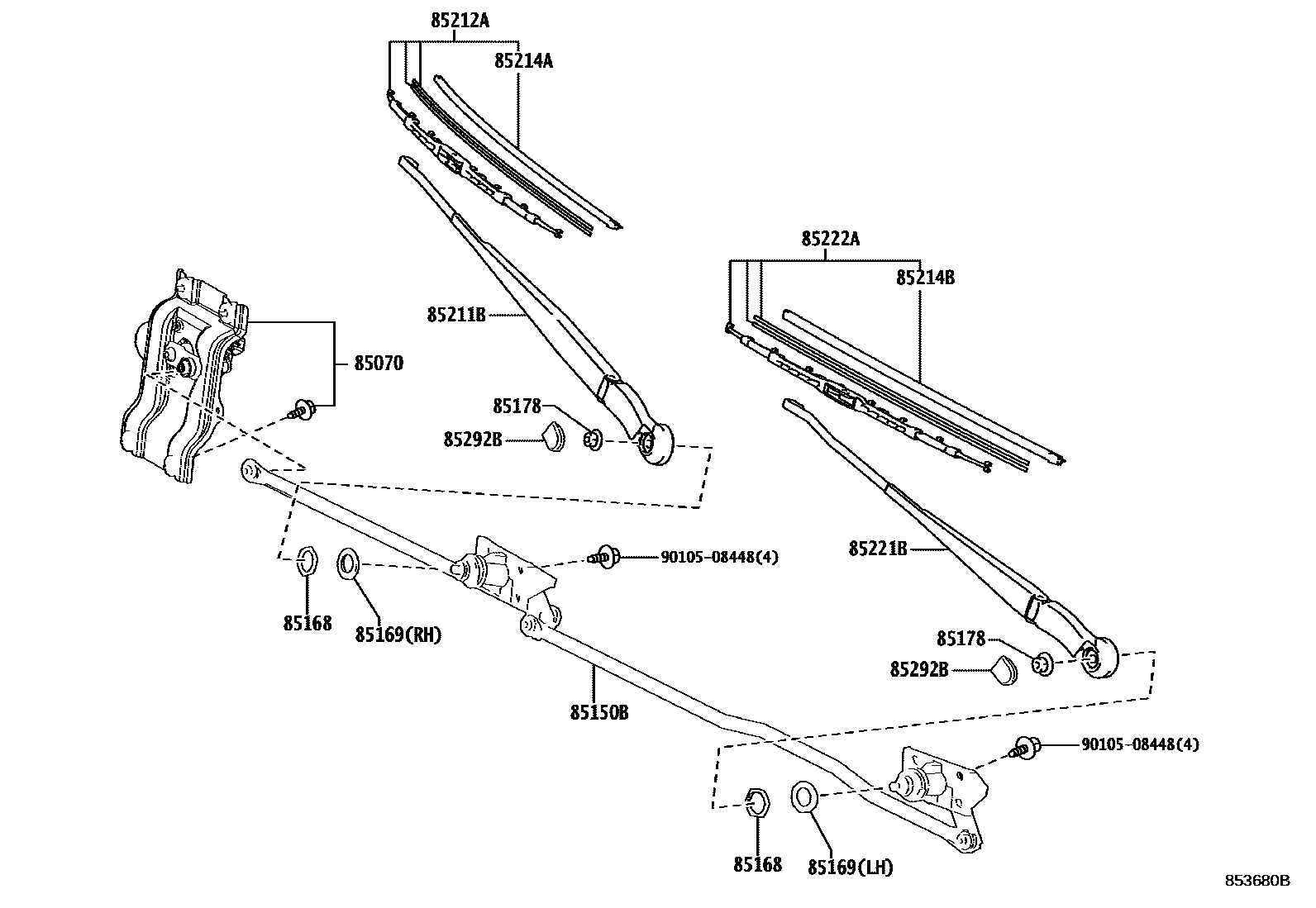

85070MOTOR & BRACKET ASSY, FRONT WIPER

main85070-36100iXZB70..RHD..5F..(GEN,SA);HZB60,70,XZB80..RHD..(5F,6FC)201701-202201

main85070-36110iHZB70..23S..WOC202201-202312

85150BLINK ASSY, WIPER

main85150-36040iBZB60,XZB60201701-201712

sub85150-36041

main85150-36050iBB60,HZB70,TRB60,70,XZB60,70..LHD201701-201807

sub85150-36051

main85150-36061iGDB70..ARL202201-202512

ACTIVE SAFETY PACKAGE-WITH

main85150-36070iBB60,BZB70,HZB70,XZB70..RHD201807-201902

main85150-36071iXZB70,80..4FC;BZB70,XZB70..(01S,22S)..5F..STD201903-202012

main85150-36080iBB60,HZB70,TRB60,70,XZB60,70..LHD201807-201902

main85150-36081iTRB60,70..6F;HZB70..30S..WOC;HZB70,TRB70..LHD..WC..GEN;GDB70,HZB60..LHD..(GCC,GEN);XZB70..LHD..(23S,29S)..WC..GEN202201

main85150-36090iGDB70..TAIW202201

85168NUT, WINDSHIELD WIPER LINK PIVOT

main85113-36010×2iBZB60,XZB60201701-201712

85169WASHER, WINDSHIELD WIPER LINK PIVOT, NO.1

main85152-36010iBB60,BZB60,70,HZB70,XZB60,70..RHD201701-201709

RH

main85152-36011iXZB70..RHD..DX..GEN;GDB70,HZB70..23S..STD..(BTN,GEN)202201-202312

RH

main85152-36020iBB60,BZB60,70,HZB70,XZB60,70..RHD201701-201709

RH

main85152-36021iXZB70..RHD..DX..GEN;GDB70,HZB70..23S..STD..(BTN,GEN)202201-202312

LH

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-10006×2iBZB60,XZB60201701-201712

85211BARM, FRONT WIPER, RH

main85211-36040iBZB60,XZB60201701-201712

main85211-36050iBB60,XZB60..LHD201701-201907

main85211-36060iXZB70..RHD..5F..(GEN,SA);HZB60,70,XZB80..RHD..(5F,6FC)201807-202201

85212ABLADE, FR WIPER, RH

main85212-26130iBZB60,XZB60201701-201712

main85222-52131iBB60,XZB60..LHD201701-201907

85214ARUBBER, WIPER, RH

main85214-24051iXZB70..23S..GCC202501

main85214-48010iGDB70..BTN;XZB70..RHD..DX..GEN202201-202312

85214BRUBBER, WIPER, LH

main85214-24051iBZB60,XZB60201701-201712

main85214-48010iTRB60,70..6F;HZB70..30S..WOC;GDB70,HZB60..LHD;HZB70,TRB70..LHD..WC..GEN;XZB70..LHD..(23S,29S)..WC..GEN202201

85221BARM, FRONT WIPER, LH

main85221-36040iXZB70..RHD..5F..(GEN,SA);HZB60,70,XZB80..RHD..(5F,6FC)201701-202201

main85221-36050iBB60,HZB70,TRB60,70,XZB60,70..LHD201701-201807

main85221-36060iTRB60,70..6F;HZB70..30S..WOC;GDB70,HZB60..LHD;HZB70,TRB70..LHD..WC..GEN;XZB70..LHD..(23S,29S)..WC..GEN202201

85222ABLADE, FR WIPER, LH

main85212-26051iXZB70..RHD..23S..GEN202501

main85222-48040iTRB70..WOC;XZB70..GCC;HZB70..23S..GCC202201-202412

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010×2iBZB60,XZB60201701-201712

9010508448

main90105-08448

13 parts on this diagram · 2 diagrams in section
