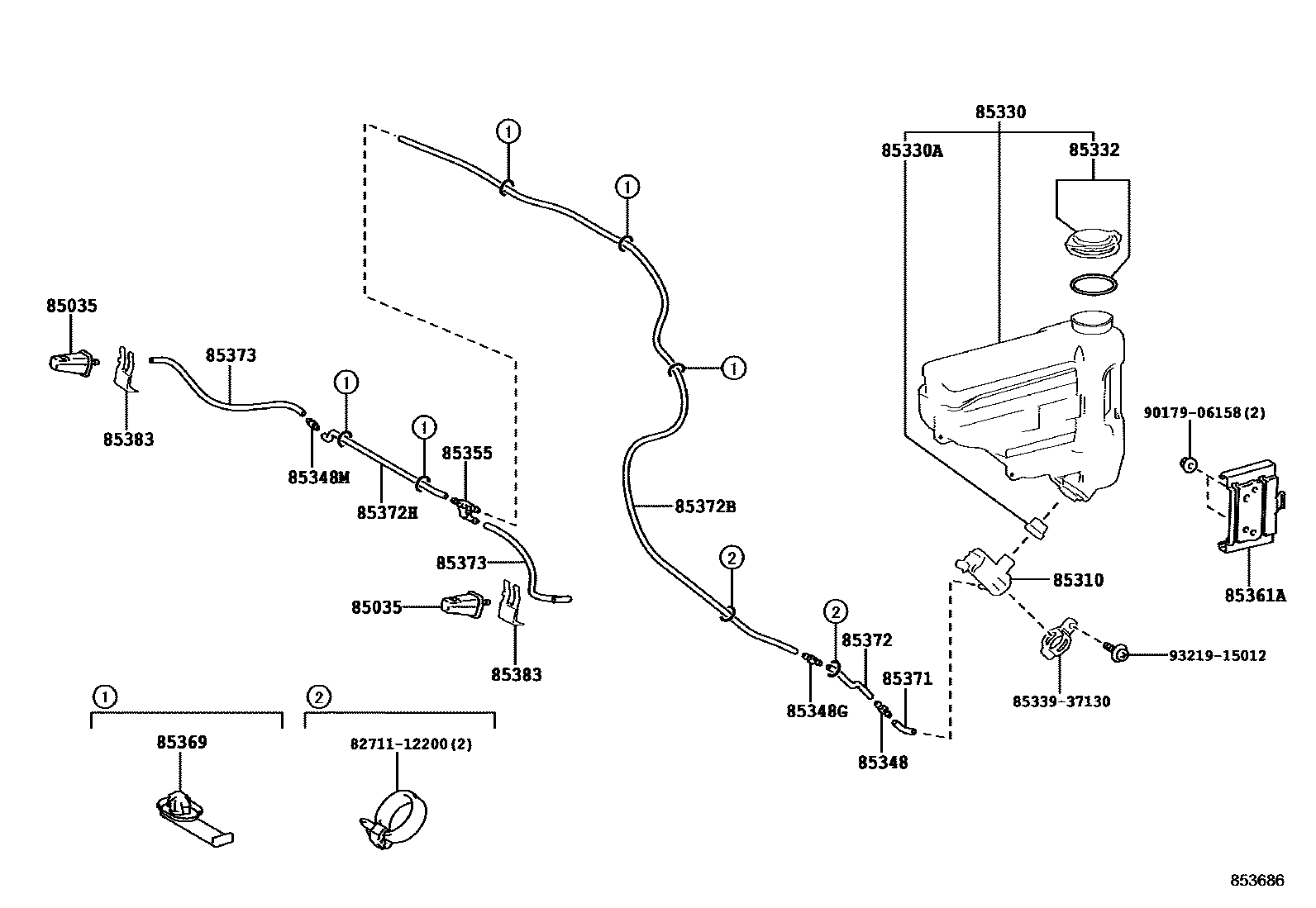

Toyota COASTER — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-36030×2iBZB60,XZB60201701-201712

main85381-36031×2iBB60,XZB60201801-201907

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-60140iBZB60,XZB60201701-201712

85330JAR ASSY, WINDSHIELD WASHER

main85315-36130iBZB60,XZB60201701-201712

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iBZB60,XZB60201701-201712

85332CAP, WINDSHIELD WASHER JAR

main85316-36130iBZB60,XZB60201701-201712

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122iBZB60,XZB60201701-201712

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85349-89122iBZB60,XZB60201701-201712

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85349-89122iBZB60,XZB60201701-201712

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020iBZB60,XZB60201701-201712

85361ABRACKET, WINDSHIELD WASHER, NO.1

main85361-95A02iBZB60,XZB60201701-201712

85369CLAMP

main82711-52090×5iBZB60,XZB60201701-201712

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85355-14481iBZB60,XZB60201701-201712

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080iBZB60,XZB60201701-201712

L=1450(*H,L=110)

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90446-07001iBZB60,XZB60201701-201712

L=1800(*H,L=1280)

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90099-33080iBZB60,XZB60201701-201712

L=1450(*H,L=310)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080×2iBZB60,XZB60201701-201712

L=1450(*H,L=290)

85383HOLDER, FRONT WASHER NOZZLE

main85383-36010×2iBZB60,XZB60201701-201712

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

8533937130CAP SUB-ASSY, RESERVE TANK

main85339-37130

9017906158

main90179-06158

9321915012

main93219-15012

21 parts on this diagram · 1 diagram in section
