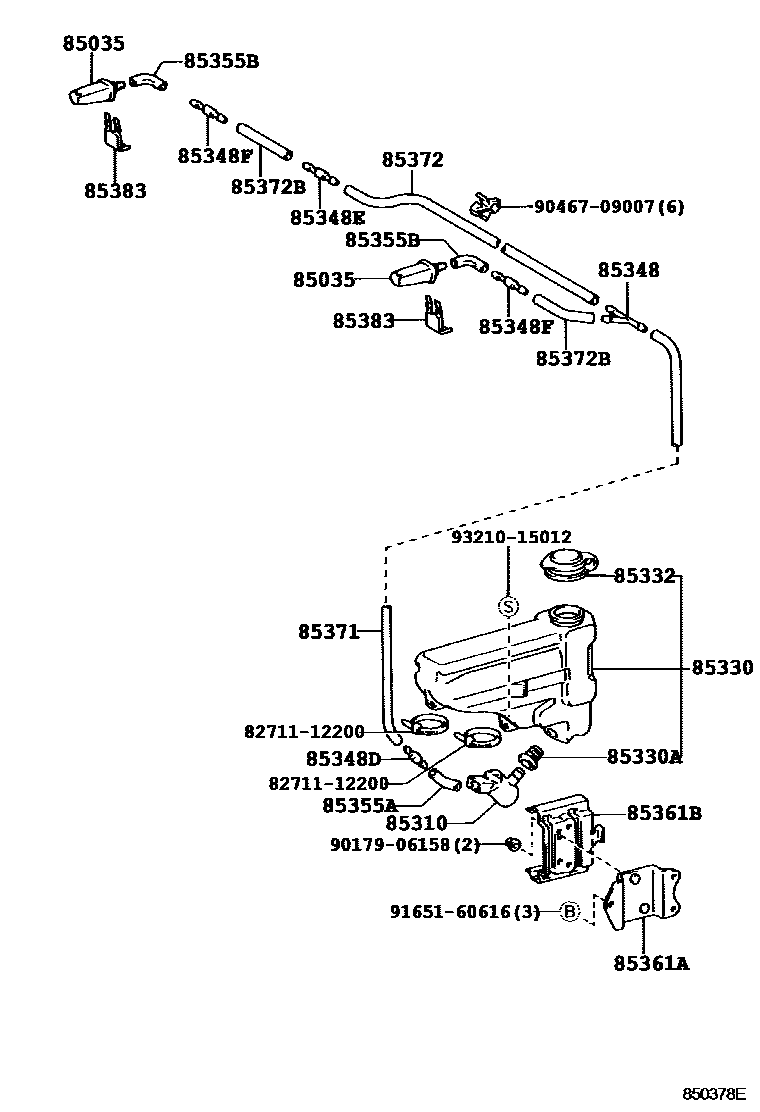

Toyota COASTER — WINDSHIELD WASHER

0001 1 0002 1

85035NOZZLE SUB-ASSY, WASHER

main85381-36010×2iXZB50..WOC..CBU200408-200908

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-20200iRZB40..HRF..GCC200408-200602

12V

main85330-36160iBB42..RHD;BB42..LHD..SRF;BB50,HZB50..30S200408-201501

24V

85330JAR ASSY, WINDSHIELD WASHER

main85315-36130iBB4#,5#,HZB50,RZB40,50..ARL,GCC,GEN,SCO199301-199907

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iBB4#,5#,HZB50,RZB40,50..ARL,GCC,GEN,SCO199301-199907

85332CAP, WINDSHIELD WASHER JAR

main85316-36130iBB50,HZB50,RZB40,50..ARL,CHI199907-200211

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85348-12250iBB4#,5#,HZB50,RZB40,50..ARL,GCC,GEN,SCO199301-199907

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85349-89122iBB4#,5#,HZB50,RZB40,50..ARL,GCC,GEN,SCO199301-199907

85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2

main85349-89122iBB4#,5#,HZB50,RZB40,50..ARL,GCC,GEN,SCO199301-199907

85348FJOINT, WINDSHIELD WASHER ELBOW, NO.3

main85349-89122×2iBB4#,5#,HZB50,RZB40,50199301-199907

85355AJOINT, WINDSHIELD WASHER ELBOW

main85355-14481iBB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,199907-200408

85355BJOINT, ELBOW NO.2

main85355-14481×2iRZB40..HRF..GCC200408-200602

85361ABRACKET, WINDSHIELD WASHER, NO.1

main85361-36160iBB59,BZB50..EX;BB50..RHD..CBU200408-200608

main85361-36170iBB42..LHD..SRF;BB50,HZB50,TRB40,50,XZB50..LHD..CBU..5F200408-201501

85361BBRACKET, WINDSHIELD WASHER, NO.2

main85361-95A00iBB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN199907-200108

main85361-95A02iBB50..WOC..5F199907-200108

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080iBB42..LHD..HRF200703-201108

L=1450(*H,L=80)

main90446-06013iRZB40..HRF..GCC200408-200602

L=1000(*H,L=950)

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90446-06013iBB4#,5#,HZB50,RZB40,50..ARL,GCC,GEN,SCO199301-199907

L=1000(*H,L=870)

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-62015×2iBB42..LHD..HRF201012-201108

L=100

main90446-06013×2iBB50,HZB50,RZB40,50..ARL,CHI199907-200211

L=1000(*H,L=100)

85383HOLDER, FRONT WASHER NOZZLE

main85383-36010×2iBB4#,5#,HZB50,RZB40,50..ARL,GCC,GEN,SCO199301-199907

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

9017906158

main90179-06158

9046709007

main90467-09007

9165160616

main91651-60616

9321015012

main93210-15012

22 parts on this diagram · 2 diagrams in section
