Toyota COASTER — V-BELT

Parts diagram

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

1601WATER PUMP

→ Go to FIG 16-01

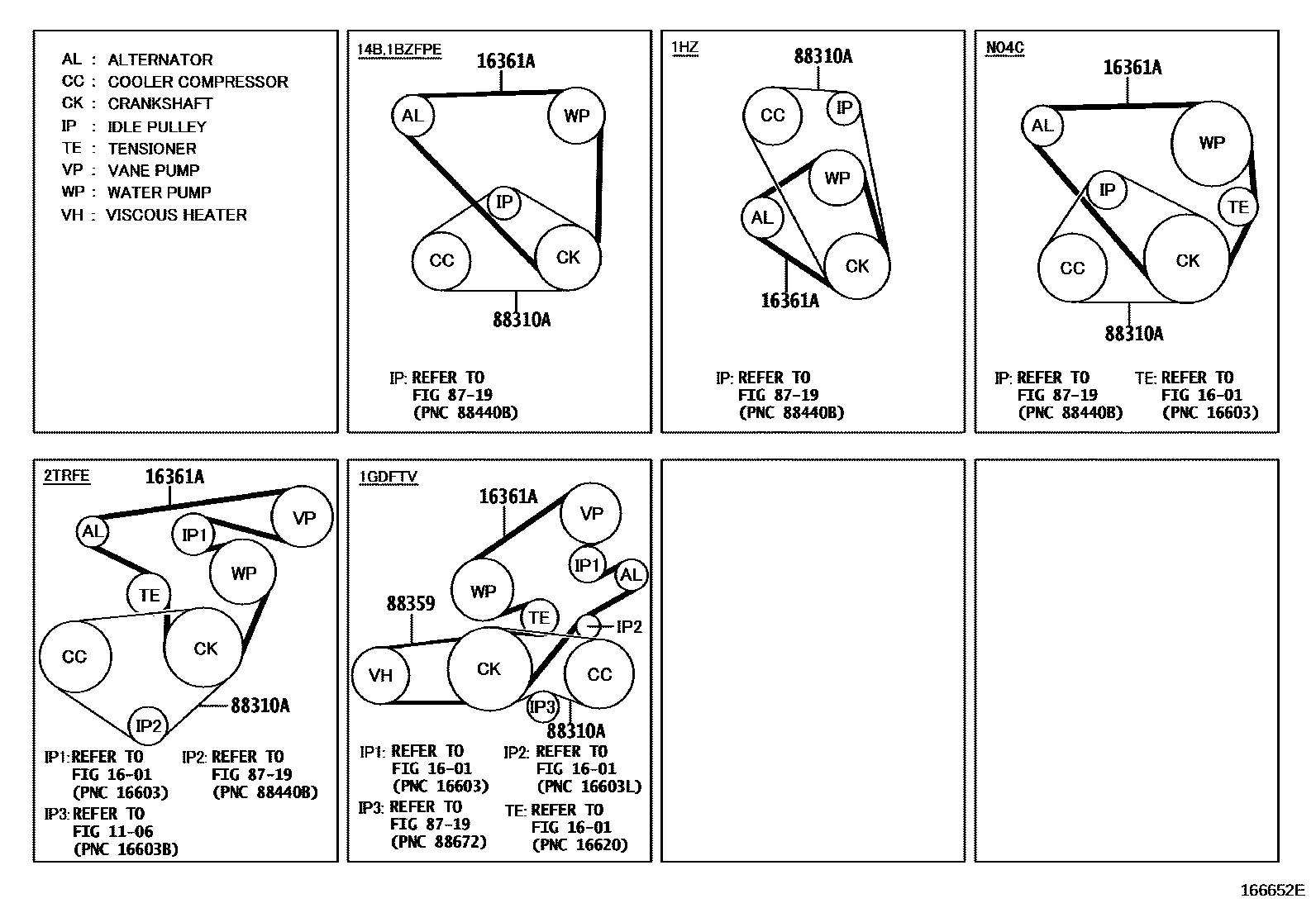

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02215i201701-202012

main90916-02452i202201-202312

main90916-02709i201701-202201

main99367-K1910i202201-202312

mainS16LAE0070i201701-202201

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main90916-02227i201701-201712

L=1120

main90916-02444i201701-201907

L=1160X2

main90916-02589i201701-202201

L=1350

main99365-H0990i202201

L=990

main99365-H1020i202201-202312

L=1020

88359BELT, V(FOR VISCOUS HEATER)

main99364-K0890i202201-202512

6 parts on this diagram · 1 diagram in section

V-BELT for Toyota COASTER

This section contains 6 genuine Toyota parts for the V-BELT system of the Toyota COASTER. Key components include: TIMING GEAR COVER & REAR END PLATE, WATER PUMP, BELT, V(FOR FAN & ALTERNATOR), HEATING & AIR CONDITIONING - COMPRESSOR, BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1.
