Toyota COASTER — V-BELT

0001 1 0002 1

1601

16361ABELT, V(FOR FAN & ALTERNATOR)

main90038-39010iN04C..XZB40,59;N04C..XZB50..RHD..(20S,21S)200608-201010

sub90038-39016

main90038-39016iN04C..XZB40,5#..WC..(ARL,GEN)200907-201501

subSZ910-49277

main90080-91082i3RZF..RZB40,50199309-199508

sub99365-80890

main90916-02215i14B..BB42..26S..WC;14B..BB42..LHD..SRF..WOC..GEN;15BFT..BB50..STD..GEN..CBU..5F;15BFTE,1BZFPE..BB50,59,BZB40,50..RHD..(ARL,GEN)199301-201501

L=1220X2

main90916-02239i14B..BB42..SRF..WOC..GEN;14B..BB42..LHD..HRF..WOC199301-201501

L=1220

main90916-02330i1HZ..HZB50199301-199801

L=1005X2

sub90916-02452

main90916-02331i1HZT..HZB50199301-199605

main90916-02336i3RZFE..RZB40..WOC..GCC;3RZFE..RZB40..22S..GEN199907-200708

main90916-02336i3RZF..RZB40,50199705-199907

L=865

main90916-02375i15BFT..BB50..WOC..5F;15BFT..BB50..CBU..6F199605-200608

L=1295X2

main90916-02452i1HZ..HZB50199801-201501

L=1005X2

main90916-02452i1HZ..HZB50201501

main90916-02639i2TRFE..TRB40,50200708-201110

sub90916-02709

main90916-02709i2TRFE..TRB40,50201111-201501

main99365-80890i3RZF..RZB40,50199508-199705

sub99365-90890

mainSZ91049277iN04C..XZB40,5#201501

44310ABELT, V(FOR VANE PUMP)

main90916-02572iRZB50;RZB40..GEN;RZB40..SRF..GCC200408-200708

L=1100

main99364-71100iRZB40,50199309-199907

sub99364-81100

main99364-81100iRZB40,50..CHI199907-200408

L=1100

4503

8719

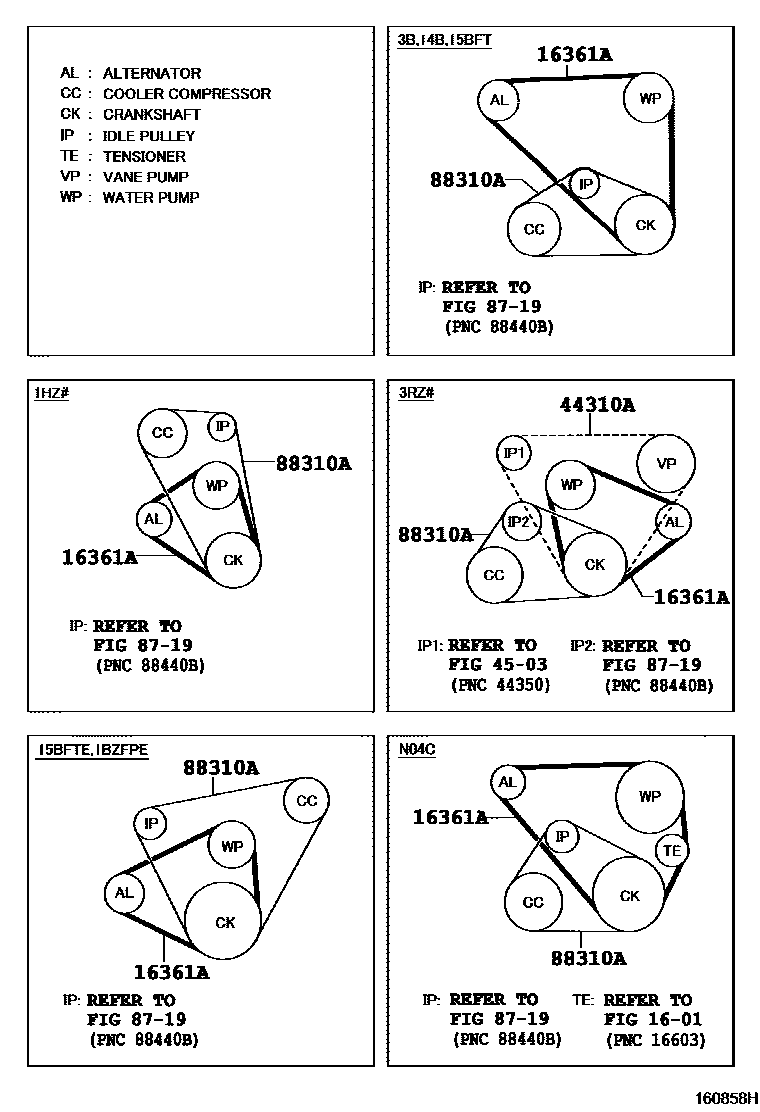

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main90916-02227iBB50..CHI199301-201501

L=1120

main90916-02387iHZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL199301-199506

sub90916-02419

main90916-02419iHZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL199506-199703

sub90916-02451

main90916-02444iXZB40,59;XZB50..(20S,21S)..WC200608-201501

L=1160X2

main90916-02451iHZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC199703-199907

L=1380

main90916-02588iRZB50;RZB40..WC..GEN;RZB40..SRF..GCC200408-200708

L=980

main90916-02589iHZB50..WC200408-201501

L=1350

main99365-20980iRZB40..22S..GEN199309-200408

L=980

main99365-H0990iTRB40,50..WC200708-201501

L=990

main99367-31350iHZB50..LHD..EX;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC199907-200408

L=1350
