Toyota COASTER — TOOL BOX & LICENSE PLATE BRACKET

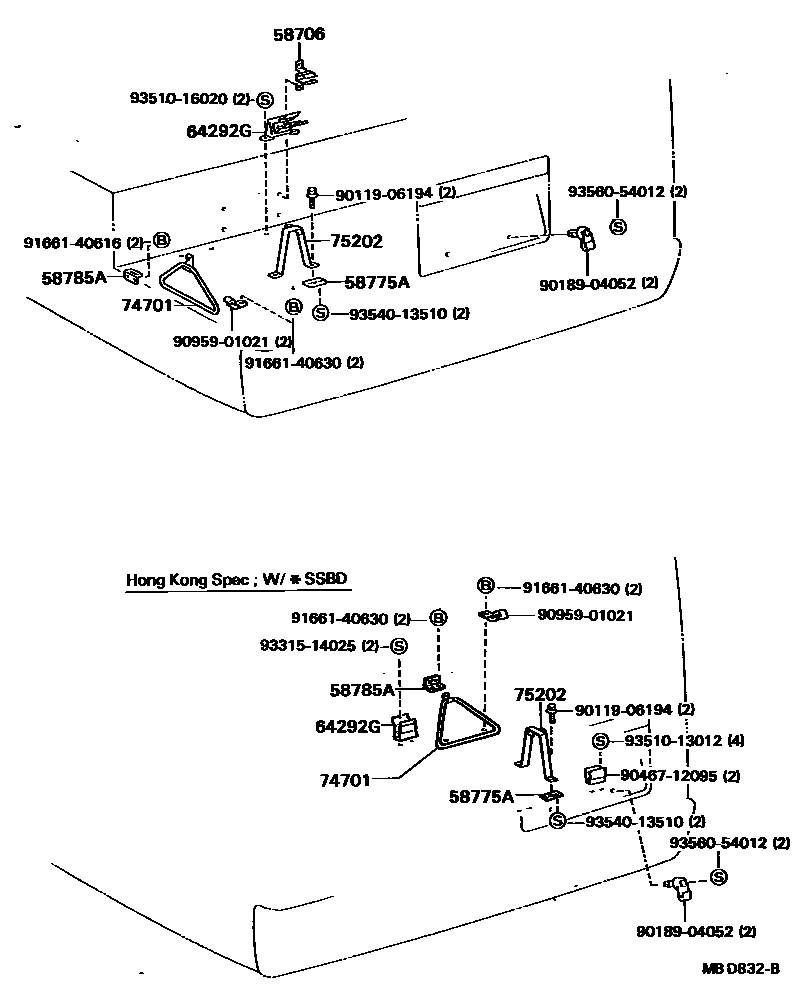

Parts diagram

58706BRACKET SUB-ASSY, JACK HANDLE

main58706-90B01×2i198303-199205

W/FOLDING SEAT

main58706-90B02×2i198205-199301

W/O FOLDING SEAT

58775ARETAINER, JACK REST

main58775-90B00×6i198405-198510

HONG KONG SPEC

58785ABRACKET, TOOL BAG BAND

main58785-90B00i198205-199301

64292GCLAMP, JACK HANDLE

main58707-90B00×2i198205-199301

74701CLAMP SUB-ASSY, TOOL BAG

main74701-95601i198205-199301

75202REST SUB-ASSY, JACK

main58075-90B00i198205-199301

9011906194

main90119-06194

9018904052

main90189-04052

9046712095

main90467-12095

9095901021

main90959-01021

9166140616

main91661-40616

9166140630

main91661-40630

9331514025

main93315-14025

9351013012

main93510-13012

9351016020

main93510-16020

9354013510

main93540-13510

9356054012

main93560-54012

17 parts on this diagram · 1 diagram in section

TOOL BOX & LICENSE PLATE BRACKET for Toyota COASTER

This section contains 17 genuine Toyota parts for the TOOL BOX & LICENSE PLATE BRACKET system of the Toyota COASTER. Key components include: BRACKET SUB-ASSY, JACK HANDLE, RETAINER, JACK REST, BRACKET, TOOL BAG BAND, CLAMP, JACK HANDLE, CLAMP SUB-ASSY, TOOL BAG.
