Toyota COASTER — SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

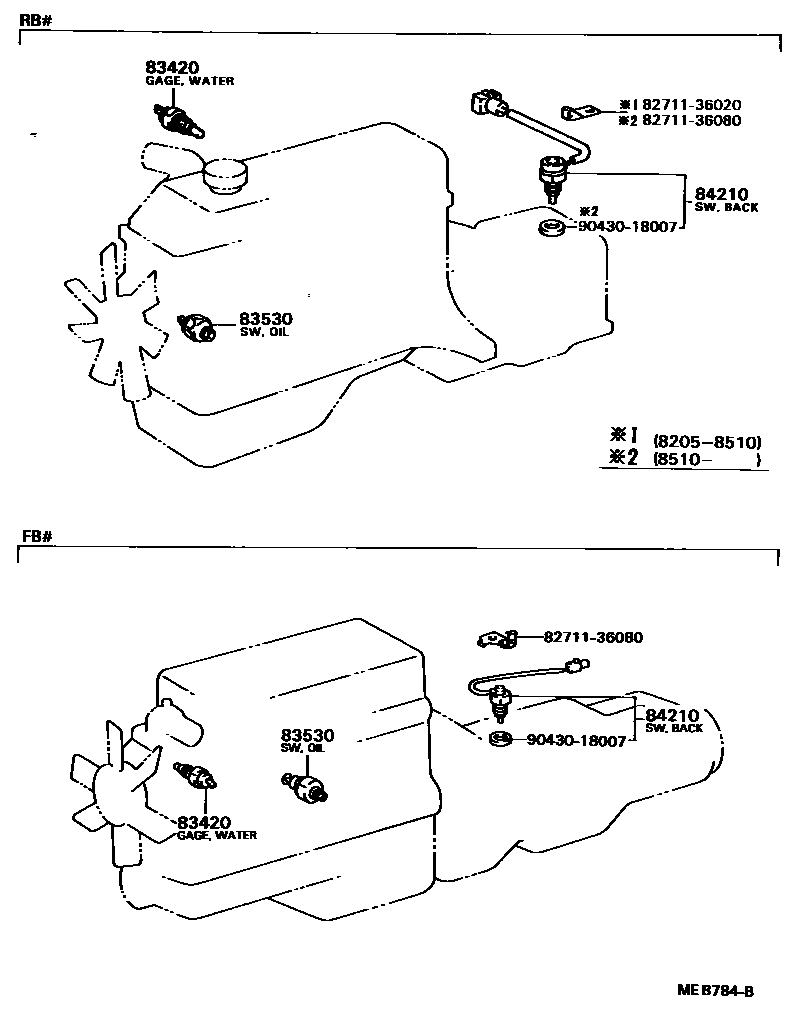

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-20020iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20198205-199301

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14010iBB20,30,RB20198205-198502

main83530-14030iBB2#,30,FB30,HB3#,RB20198502-198612

sub83530-28030

main83530-30060iFB30198612-199301

sub83530-60030

84210SWITCH ASSY, BACK-UP LAMP

main84210-36010iBB20,30,RB20198205-198510

main84210-60021iBB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..5F198510-199301

8271136020WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-36020

8271136080WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-36080

9043018007

main90430-18007

6 parts on this diagram · 9 diagrams in section
