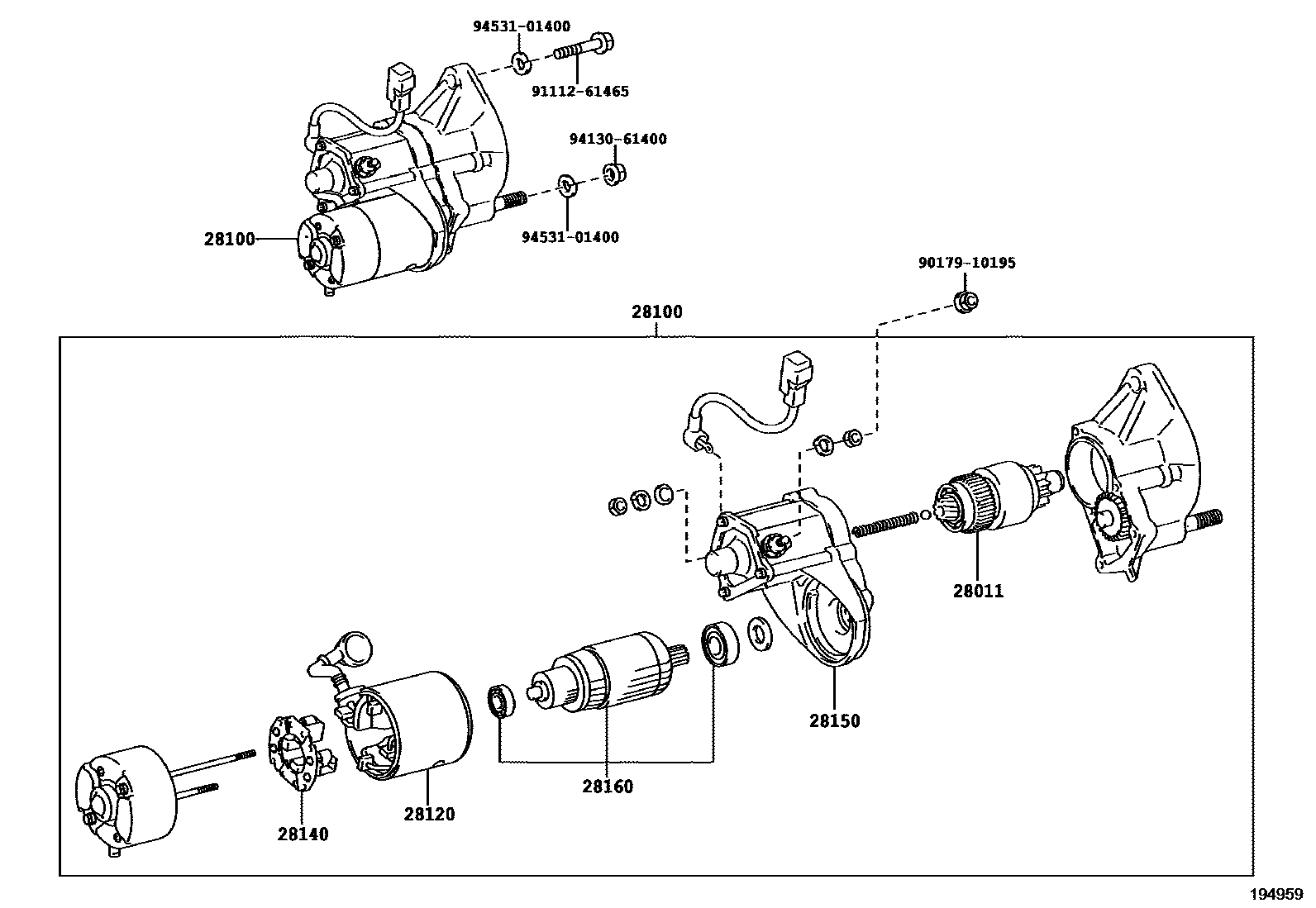

Toyota COASTER — STARTER

0001 112V 2.5KW 0002 112V 2.5KW 0003 112V 2.5KW 0004 112V 1.4KW 0005 112V 2.7KW 0006 112V 2.7KW

28011CLUTCH SUB-ASSY, STARTER

main28011-17020i1HZ..HZB70..23S..WOC201701-202412

main28011-30050i1GDFTV..GDB60;1GDFTV..GDB70..(02S,19S,22S,23S)..(GCC,GEN,SA,TAIW)202201-202512

main28011-51060iN04C..XZB70..RHD..23S..GEN201701-202512

main28011-54010i14B..BB60201701-202012

main28011-76070i2TRFE..TRB70..WOC201701-202412

28100STARTER ASSY

main28100-17061i1HZ..HZB60,70..23S,25S,26S,30S201701-202412

12V 2.5KW

main28100-30051i1GDFTV..GDB60;1GDFTV..GDB70..(02S,19S,22S,23S)..(GCC,GEN,SA,TAIW)202201-202512

12V 2.7KW

main28100-56302i14B..BB60201701-201907

12V 2.5KW

main28100-56312i1BZFPE..BZB60201701-202012

12V 2.5KW

main28100-75091i2TRFE..TRB60,70..6F;2TRFE..TRB70..WC..GEN201701-202412

12V 1.4KW

main28100-78150iN04C..XZB70..RHD..23S..GEN201701-202512

12V 2.7KW

28120YOKE ASSY, STARTER

main28120-47040i1HZ..HZB70..23S..GCC201701-202412

main28120-51060iN04C..XZB60..GCC201701-202512

main28120-56231i1BZFPE..BZB60201701-202012

main28120-66040i2TRFE..TRB60,70..6F;2TRFE..TRB70..WC..GEN201701-202412

main28120-67020i1GDFTV..GDB70..BTN202201-202512

28140HOLDER ASSY, STARTER BRUSH

main28140-76070i2TRFE..TRB60,70..GCC201701-202412

main28140-77090i1BZFPE..BZB60201701-202512

main28140-78150iN04C..XZB70..RHD..23S..GEN201701-202512

28150SWITCH ASSY, MAGNET STARTER

main28150-17060i1HZ..HZB70..19S201701-202412

main28150-30050i1GDFTV..GDB70..DX..ARL;1GDFTV..GDB70..RHD..(EX,STD)..(ARL,GEN)202201-202512

main28150-51060iN04C..XZB80..5F,6FC;N04C..XZB70..(19S,20S,22S,23S,29S)..5F..WC..(GCC,GEN,SA)201701-202512

main28150-56300i14B..BB60201701-201907

main28150-56310i1BZFPE..BZB60201701-202012

main28150-75130i2TRFE..TRB60,70..6F;2TRFE..TRB70..WC..GEN201701-202412

28160ARMATURE ASSY, STARTER

main28160-51060iN04C..XZB70..(19S,22S)..5F201701-202512

main28160-54140i1GDFTV..GDB70..DX..ARL;1GDFTV..GDB70..RHD..(EX,STD)..(ARL,GEN)201701-202512

main28160-74070i2TRFE..TRB70..WOC201701-202412

9017910195

main90179-10195

9111261465

main91112-61465

9413061400

main94130-61400

9453101400

main94531-01400

10 parts on this diagram · 6 diagrams in section
