Toyota COASTER — STARTER

0001 112V 2.5KW, 24V 4.5KW 0002 112V 2.5KW, 24V 4.5KW 0003 112V 1.4KW 0005 112V 2.0KW 0007 112V 2.5KW 0008 124V 5.0KW 0010 112V 2.7KW 0011 112V 2.5KW,24V 4.5KW 0012 112V 2.5KW 0013 112V 2.5KW, 24V 4.5KW 0014 112V 1.4KW

28011CLUTCH SUB-ASSY, STARTER

main28011-17020i1HZ..HZB50..RHD..SRF;1HZ..HZB50..RHD..WOC..GEN;1HZ..HZB50..RHD..(20S,22S)..GEN199907-200108

main28011-51060iN04C..XZB40,5#..ARL,GEN,TAIW200908-201501

main28011-54010i14B,1BZFPE..BB42,BZB40,50201501

main28011-75120i3RZFE..RZB40,50..HRF..GEN199907-200012

12V 2.0KW,CHINA SPEC

main28011-76070i2TRFE..TRB40,50201501

main28011-78111iN04C..XZB50..IV200608-201311

sub28011-78112

28011ABALL, STARTER CLUTCH

main90099-12009i15BFT..BB50..WOC..5F;15BFT..BB50..EX..GEN;1HZ..HZB50..RHD..SRF;1HZ..HZB50..RHD..(20S,22S)..GEN;14B,3RZFE..BB42,RZB40..WOC..GCC;14B,1HZ..BB42,HZB50..RHD..HRF..WOC..G199907-200108

28100STARTER ASSY

main28100-17030i1HZ..HZB50199505-199705

24V 4.5KW

main28100-17040i1HZ..HZB50..RHD..SRF;1HZ..HZB50..WOC..GEN199301-199705

12V 2.5KW

main28100-17050i1HZ..HZB50..RHD..SRF;1HZ..HZB50..RHD..WOC..GEN;1HZ..HZB50..RHD..(20S,22S)..GEN199907-200108

24V 4.5KW

main28100-17051i1HZ..HZB50201501

24V 4.5KW

main28100-17060i1HZ..HZB50..RHD..SRF;1HZ..HZB50..RHD..WOC..GEN199907-200108

12V 2.5KW

main28100-17061i1HZ..HZB50..WOC200906-201501

12V 2.5KW

main28100-56290i14B,15BFT,3B..BB4#,5#199301-199808

24V 4.5KW

main28100-56291i15BFTE..BB5#200408-200608

24V 4.5KW

main28100-56292i14B..BB42..LHD..HRF200906-201108

24V 4.5KW

main28100-56300i14B..BB42..WOC199301-199808

12V 2.5KW

main28100-56301i14B..BB42..WOC199808-199907

12V 2.5KW

main28100-56302i14B..BB42..WOC200906-201501

12V 2.5KW

main28100-56311i1BZFPE..BZB40,50..STD200408-200905

12V 2.5KW

main28100-56312i1BZFPE..BZB40,50200906-201501

12V 2.5KW

main28100-75090i3RZFE..RZB40..HRF..GCC200408-200602

12V 1.4KW

main28100-75091i2TRFE..TRB40,50200907-201501

12V 1.4KW

main28100-75120i3RZF..RZB40,50..GEN199309-199505

12V 2.0KW,CHINA SPEC

main28100-78112iN04C..XZB5#..GEN200608-200610

24V 5.0KW

main28100-78113iN04C..XZB50..STD..GEN200610-200803

24V 5.0KW

sub28100-78114

main28100-78150iN04C..XZB40,5#..ARL,GEN,TAIW200908-201501

12V 2.7KW

28110HOUSING ASSY, STARTER DRIVE

main28110-56130i14B,15BFT,3B..BB4#,5#199301-199808

main28110-56131i15BFTE..BB5#200408-200608

main28110-56151i1BZFPE..BZB40,50..STD200408-201007

main28110-75090i3RZFE..RZB40..WOC..GEN;3RZFE..RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)199907-200408

main28110-75120i3RZF..RZB40,50..GEN199309-199505

12V 2.0KW,CHINA SPEC

main28110-78150iN04C..XZB40,5#..ARL,GEN,TAIW200908-201501

main28115-17020i1HZ..HZB50200408-200906

28118PLATE(FOR STARTER YOKE)

main28118-77090i14B,3B,1HZ#..BB4#,HZB50199301-199505

28119COVER, STARTER END FRAME

main28119-46080i14B,3B,1HZ#..BB4#,HZB50199301-199505

24V 4.5KW

main28199-46080i1HZ..HZB50..RHD..SRF;1HZ..HZB50..WOC..GEN199301-199907

12V 2.5KW

28120YOKE ASSY, STARTER

main28120-47040i14B,1HZ..BB42,HZB50..WOC200906-201501

12V 2.5KW

main28120-51060iN04C..XZB40,5#201501

main28120-54380i3RZF..RZB40,50..GEN199309-199505

12V 2.0KW,CHINA SPEC

main28120-56071i15BFT..BB50..EX..IV200008-200108

main28120-56081i14B..BB42..WOC..GCC;1HZ..HZB50..RHD..SRF;14B,1HZ..BB42,HZB50..RHD..HRF..WOC..GEN199907-200108

main28120-56231i1BZFPE..BZB40,50200408-201501

main28120-66040i2TRFE..TRB40,50201501

main28120-74070i3RZF..RZB40,50199309-199402

main28120-77090i14B,15BFT,1HZ..BB42,50,HZB50200906-201501

24V 4.5KW

main28120-78110iN04C..XZB50..WOC;N04C..XZB50..STD..WC..(EUR,GEN)200608-200909

24V 5.0KW

main28120-78111iN04C..XZB50..IV200909-201311

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-17030i14B,3B,1HZ#..BB4#,HZB50199301-199304

sub90099-04207

main28130-56260i1BZFPE..BZB40,50200408-201007

main28130-56300i15BFT..BB50..WOC..6F;15BFT..BB50..STD..WC..IV199907-200105

main28130-64170i3RZFE..RZB40..WOC..GCC;3RZFE..RZB40..22S..GEN199907-200108

main28130-75120i3RZF..RZB40,50..GEN199309-199505

12V 2.0KW,CHINA SPEC

main28130-78110iN04C..XZB50..IV201104-201311

28139WIRE, LEAD, NO.1(FOR STARTER)

main28139-54250i14B,15BFT,3B..BB4#,50199411-199611

main28139-54251i1HZ#..HZB50199411-199505

main28139-56290i15BFTE..BB5#;14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC;15BFT..BB50..STD..GEN..CBU..5F199907-200408

main28139-56310i1BZFPE..BZB40,50..STD200408-201007

28140HOLDER ASSY, STARTER BRUSH

main28140-54380i3RZFE..RZB40,50..HRF..GEN199907-200012

12V 2.0KW,CHINA SPEC

main28140-76070i3RZFE..RZB40..WOC..GCC;3RZFE..RZB40..22S..GEN199907-200108

main28140-77090i14B..BB42..WC..GCC;14B..BB42..SRF..GEN;1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;14B..BB42..LHD..HRF..WOC;1HZ..HZB50..LHD..SRF..WC;15BFTE,1BZFPE..BB5#,BZB40,50;15BFT199907-200408

main28140-78110iN04C..XZB50..WOC;N04C..XZB50..STD..WC..(EUR,GEN)200608-201311

main28140-78150iN04C..XZB40,5#201501

28150SWITCH ASSY, MAGNET STARTER

main28150-17030i1HZ#..HZB50199301-199505

24V 4.5KW

main28150-17040i1HZ..HZB50..RHD..SRF;1HZ..HZB50..WOC..GEN199301-199705

main28150-17050i1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;1HZ..HZB50..HRF..30S..WC;1HZ..HZB50..LHD..SRF..WC199907-200408

24V 4.5KW

main28150-17060i1HZ..HZB50..RHD..SRF;1HZ..HZB50..RHD..WOC..GEN199907-200108

12V 2.5KW

main28150-51060iN04C..XZB40,5#..ARL,GEN,TAIW200908-201501

main28150-56290i14B..BB42..RHD..SRF..WC201108-201501

main28150-56300i14B..BB42..WOC199301-199907

main28150-56310i1BZFPE..BZB40,50201501

main28150-75090i3RZF..RZB40,50199309-199402

main28150-75120i3RZF..RZB40,50..HRF..GEN199505-199907

12V 2.0KW,CHINA SPEC

main28150-75130i2TRFE..TRB40,50201501

28159BCOVER, MAGNET SWITCH

main28159-17030i15BFT,1HZ..BB50,HZB50..ARL,CHI199907-200211

main28159-54380i3RZFE..RZB40,50..HRF..GEN199907-200012

CHINA SPEC

main28159-55050i3RZFE..RZB40..WOC..GCC;3RZFE..RZB40..22S..GEN199907-200108

main28159-56310i1BZFPE..BZB40,50200108-200408

28160ARMATURE ASSY, STARTER

main28160-47040i1HZ..HZB50..RHD..SRF;14B,1HZ..BB42,HZB50..WOC..(GCC,GEN)199301-199907

12V 2.5KW

main28160-51060iN04C..XZB40,5#..ARL,GEN,TAIW200908-201501

12V 3.0KW

main28160-54140i1BZFPE..BZB40,50;14B,1HZ..BB42,HZB50..WOC200408-201501

12V 2.5KW

main28160-74070i2TRFE..TRB40,50200708-201501

main28160-75120i3RZF..RZB40,50..HRF..GEN199505-199907

12V 2.0KW,CHINA SPEC

main28160-77090i14B,15BFT,3B,1HZ..BB4#,5#,HZB50199505-199907

24V 4.5KW

main28160-78110iN04C..XZB40,59;N04C..XZB50..(20S,21S)..WC200608-200908

24V 5.0KW

sub28160-78111

28160ABEARING, STARTER ARMATURE

main90099-10107i14B..BB42..WC..GCC;14B..BB42..SRF..GEN;1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;14B..BB42..LHD..HRF..WOC;1HZ..HZB50..LHD..SRF..WC;15BFTE,1BZFPE..BB5#,BZB40,50;15BFT199907-200408

FRONT

main90099-10119i14B,15BFT,1BZFPE,1HZ..BB42,50,BZB40,50,HZB50..STD200408-201007

REAR

main90099-10196i3RZFE..RZB40..WOC..GEN;3RZFE..RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)199907-200408

FRONT

main90099-10197i2TRFE..TRB40,50200408-201007

REAR

main90099-10208i3RZF..RZB40,50..HRF..GEN199505-199907

12V 2.0KW,CHINA SPEC,FRONT

28165SPRING, STARTER MAGNET SWITCH RETURN

main28165-76070i3RZF..RZB40,50199309-199907

main28165-77090i14B,15BFT,1BZFPE..BB42,50,BZB40,50..STD200408-201007

28175AGASKET, MAGNET SWITCH COVER

main28175-54380i3RZFE..RZB40,50..CHI200012-200211

main28175-55050i3RZF..RZB40,50199309-199907

main28175-56310i14B,3B,1HZ#..BB4#,HZB50199301-199505

28199COVER, STARTER

main28199-54190i15BFT..BB50..WOC..6F;15BFT..BB50..STD..WC..IV199907-200105

main28199-74110i3RZFE,2TRFE..RZB40,50,TRB40,50200408-201007

main28199-78110iN04C..XZB50..WOC;N04C..XZB50..STD..WC..(EUR,GEN)200610-201106

mainS281991100iN04C..XZB50..IV201106-201311

28222WASHER, STARTER IDLE GEAR CLUTCH

main28222-77090i15BFT..BB50..WOC..6F;15BFT..BB50..STD..WC..IV199907-200105

28226STARTER KIT, BATTERY TERMINAL

main28226-17030i15BFT..BB50;14B,1BZFPE..BB42,BZB40,50..STD..WC200408-201007

24V 4.5KW

main28226-22050i3RZFE..RZB40..HRF..GCC200408-200602

main28226-54320i14B,3B,1HZ..BB4#,HZB50199505-199508

main28226-54380i3RZFE..RZB40,50..CHI200012-200211

sub28226-54340

main28226-64200i3RZF..RZB40,50199309-199907

12V

28226ASTARTER KIT, MOTOR TERMINAL

main28226-54220i1HZ#..HZB50199301-199505

main28226-56300i14B..BB42..WOC..GCC;15BFT..BB50..WOC..5F;15BFT..BB50..EX..GEN;14B..BB42..RHD..HRF..WOC;14B,15BFT..BB4#,50..17S,19S,22S199907-200108

main28226-72010i3RZFE..RZB40,50..CHI200012-200211

main28226-74070i3RZFE..RZB40..WOC..GEN;3RZFE..RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)199907-200408

28228ROLLER, STARTER IDLE GEAR CLUTCH

main28228-26040×5i3RZFE..RZB40..WOC..GCC;3RZFE..RZB40..22S..GEN199907-200108

main28228-56080×5i14B,15BFT,1BZFPE..BB42,50,BZB40,50..STD200408-201007

28229RETAINER, STARTER IDLE GEAR

main28229-56080i14B,3B,1HZ#..BB4#,HZB50199301-199505

main28229-74070i3RZF..RZB40,50199309-199907

28235PLUNGER, MAGNET SWITCH

main28235-17030i14B..BB42..WC..GCC;14B..BB42..SRF..GEN;1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;14B..BB42..LHD..HRF..WOC;1HZ..HZB50..LHD..SRF..WC;15BFTE,1BZFPE..BB5#,BZB40,50;15BFT199907-200408

main28235-54380i3RZF..RZB40,50..HRF..GEN199505-199907

CHINA SPEC

main28235-55050i3RZF..RZB40,50199309-199907

28254PINION, STARTER IDLE GEAR

main28254-64130i3RZFE..RZB40,50..HRF..GEN199907-200012

CHINA SPEC

main28254-74070i3RZFE..RZB40..HRF..GCC200408-200602

main28254-77090i15BFTE..BB5#;1BZFPE..BZB50..EX200408-200608

9009221001

main90092-21001

9009900158

main90099-00158

9009900254

main90099-00254

9009901436

main90099-01436

9009902205

main90099-02205

9009902325

main90099-02325

9009904207

main90099-04207

9009904297

main90099-04297

9009904473

main90099-04473

9017910195

main90179-10195

9111241465

main91112-41465

9111261465

main91112-61465

9331915008

main93319-15008

9411541400

main94115-41400

9413061400

main94130-61400

9451100600

main94511-00600

9451101000

main94511-01000

9451101400

main94511-01400

9453101400

main94531-01400

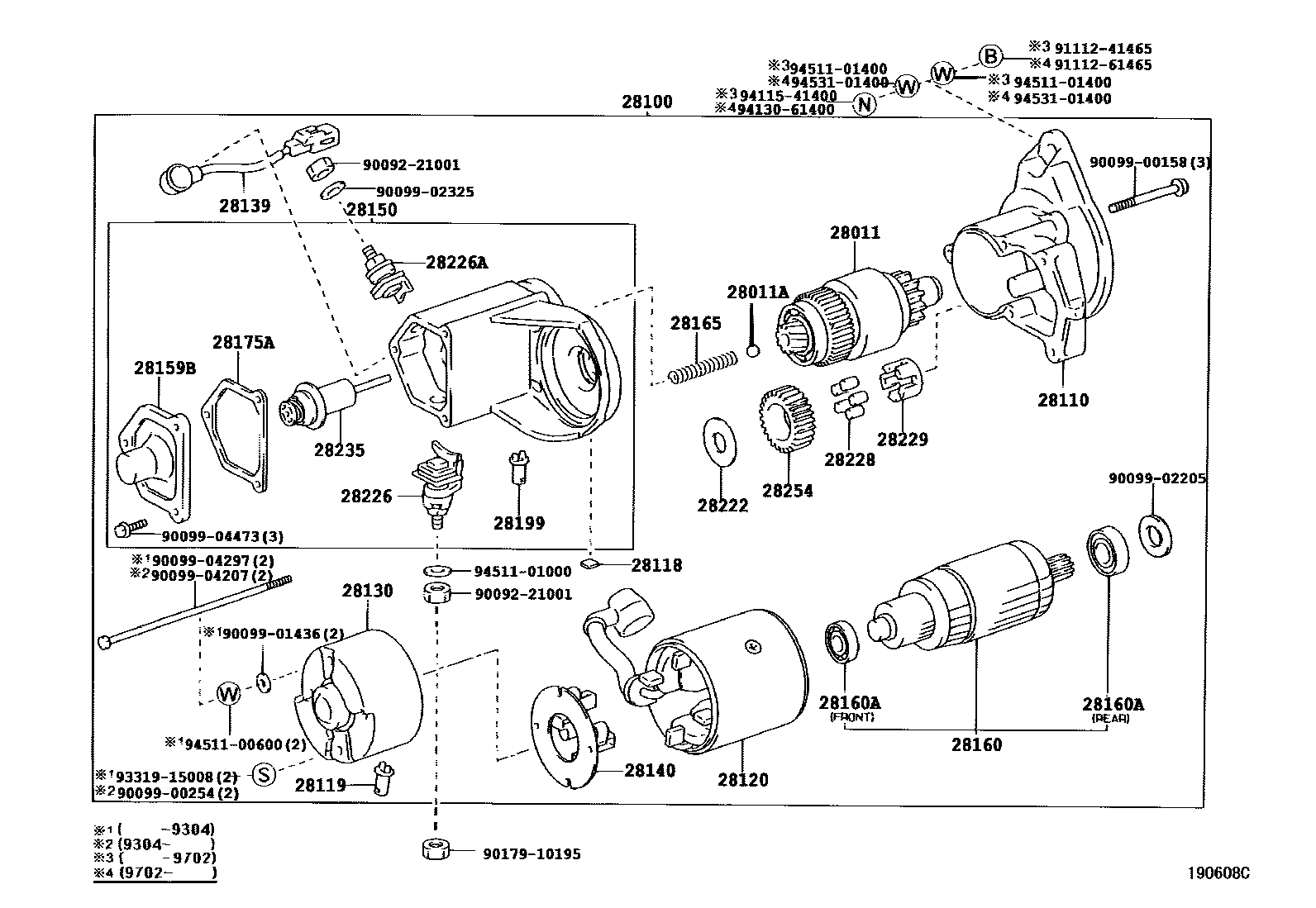

43 parts on this diagram · 11 diagrams in section
