Toyota COASTER — SPEAKER

86160SPEAKER ASSY, FRONT NO.1

main86160-36010×2iBB10,RB1#..(BC,DLX)..(GEN,IRQ)198007-198204

TAPE PLAYER

sub86160-36011

86160BSPEAKER ASSY, REAR

main86150-36020×2iBB10,RB1#197708-198204

RADIO

86202WIRE, SPEAKER, NO.1

main86202-90500iBB10,RB11..RHD..(BC,DLX)..GEN198007-198008

main86202-90501iBB10,RB13..LHD198008-198204

8281712200PROTECTOR, WIRING HARNESS, NO.1

main82817-12200

9354024016

main93540-24016

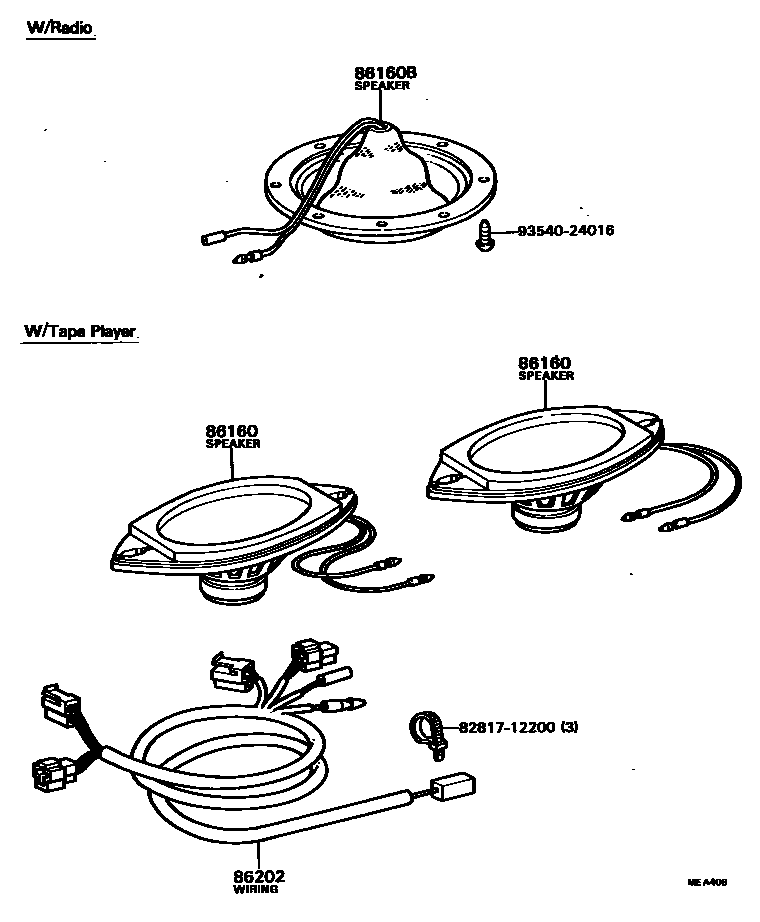

5 parts on this diagram · 1 diagram in section
