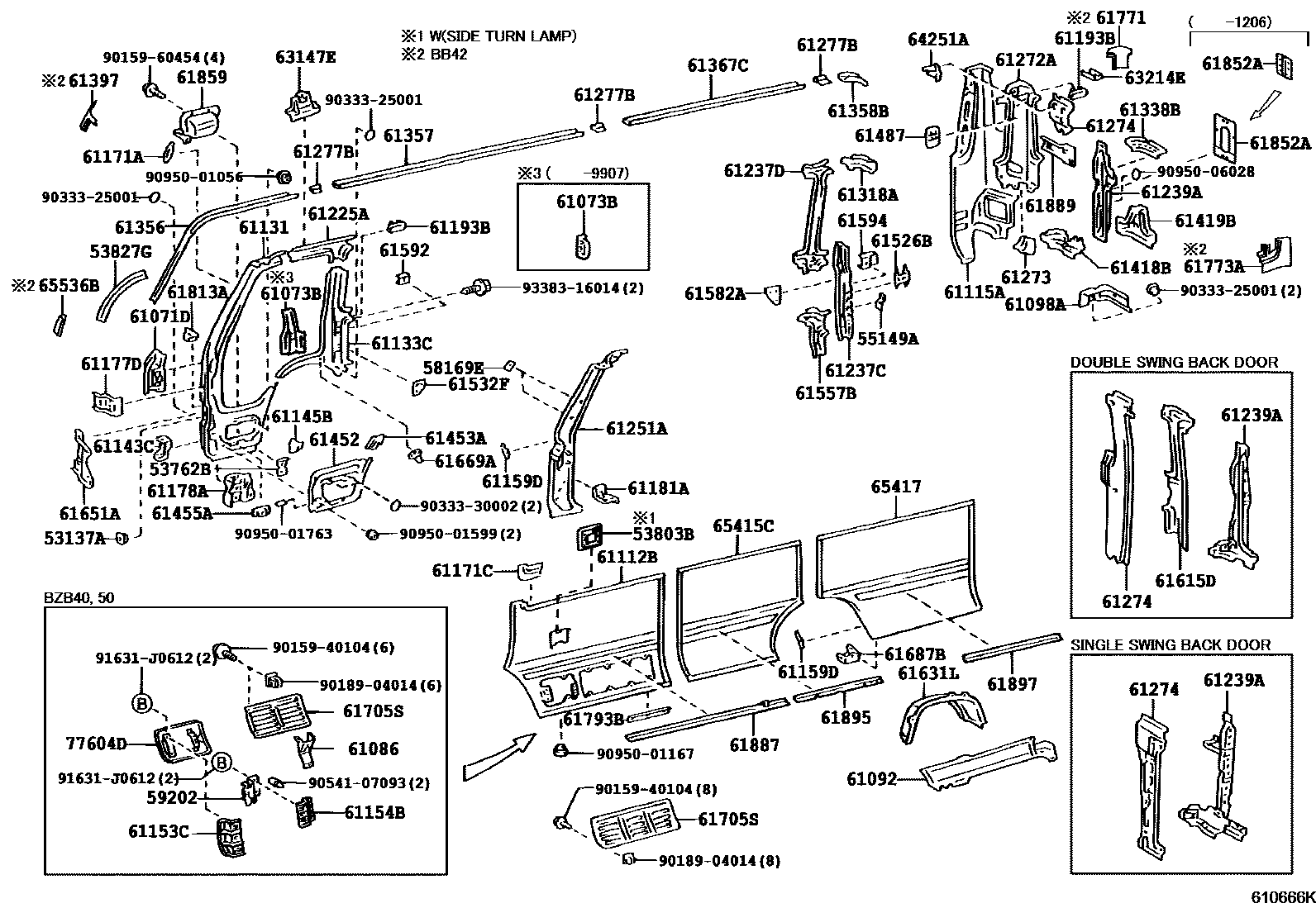

Toyota COASTER — SIDE MEMBER

0001 1RH SIDE (1/2) 0002 1LH SIDE (1/2) 0003 1RH SIDE (2/2) 0004 1LH SIDE (2/2) 0005 1CENTER DOOR 0006 1 0007 1 0009 1 0010 1 0011 1 0012 1RH 0013 1LH 0014 1 0015 1(1/2) 0016 1(2/2) 0017 1RH SIDE 0018 1LH SIDE 0019 1CENTER DOOR 0020 1 0021 1 0022 1 0023 1 0024 1 0025 1

53137ARETAINER, HEADLAMP DOOR

main53137-36010iBB50,HZB50,RZB40,50..ARL,CHI199301-201501

53762BREINFORCEMENT, RADIATOR RESERVE TANK MOUNT

main53762-36010iRZB40..HRF..GCC199301-201501

53803BBRACKET SUB-ASSY, FRONT SIDE PANEL, RH

main53803-36020iTRB40,50,XZB50..GCC,TAIW200008-201501

main53804-36010iBZB40,50,XZB40,5#..RHD200708-201501

53827GPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-36010iXZB50..WOC..CBU199301-201501

55149ABRACKET, DASH WIRING HARNESS

main55149-36010iBB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN199301-201501

58169ERETAINER, REAR HEATER MOUNTING

main58169-90A00iRZB50;RZB40..GEN;RZB40..SRF..GCC199301-201501

59202LOCK SUB-ASSY, INSPECTION HOLE COVER

main59202-36010iBZB40,50200108-201501

61071DREINFORCE SUB-ASSY, NO.1 PILLAR, UPPER RH

main61071-36010iHZB50..ARL199301-201501

61073BREINFORCE SUB-ASSY, NO.2 PILLAR, CENTER

main61073-36010iBB4#,5#,HZB50,RZB40,50..CBU199301-199907

main61073-36020iXZB50..WOC..CBU199907-201501

61086BRACKET SUB-ASSY, FUEL INLET PIPE

main61086-36010iBZB50..EX200108-201501

61092RAIL SUB-ASSY, NO.3 LOWER INNER, RH

main61092-36030iBZB50..EX;BB5#..(ARL,GEN)..TDEFI199301-201501

61098ASTIFFENER SUB-ASSY, PILLAR NO.10, INNER RH

main61098-36010iBB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN199301-201501

61112BPANEL, NO.2 SIDE, RH

main61112-36010iBB50..WOC..CBU..TDEFI199301-200708

main61112-36020iXZB5#..WC..(ARL,GEN)199301-201501

main61112-36050iBB42..LHD..SRF..GEN;BB50,HZB50,TRB40,50..LHD..GEN..5F199301-201501

main61112-36080iXZB50..TAIW200008-201501

main61112-36090iBZB40,50200108-200708

main61112-36120iXZB59201501

SINGAPORE SPEC

main61112-36120iXZB40,59;XZB50..RHD..(20S,21S)..WC200708-201501

main61112-36130iBZB40,50200708-201501

main61112-36140iBB42,HZB50,TRB40,50..GCC200708-201501

main61112-36150iXZB59201501

main61112-36150iXZB59201209-201501

W(REFLECTOR HOLE)

61115APANEL, NO.4 SIDE, RH

main61115-36010iRZB50;RZB40..GEN;RZB40..SRF..GCC199301-201501

W(LUGGAGE COMPARTMENT DOOR)

main61115-36010iBB50,RZB40,50..CHI200008-200408

main61115-36020iBB58199705-199808

main61115-36020iBB42,HZB50,RZB40,50..GCC,GEN199301-201501

W(DOUBLE SWING BACK DOOR)

main61115-36030iXZB59;XZB50..RHD..(20S,21S)..WC;BZB40,50,HZB50,XZB40..RHD..STD200408-201501

W(SINGLE SWING BACK DOOR)

main61115-36030iHZB50..SCO;BB4#,50..RHD..CBU;HZB50..RHD..(19S,22S,30S)199301-200408

main61115-36040iHZB50..RHD..SRF;BB42,RZB40..WOC..GCC199301-201501

W(LUGGAGE COMPARTMENT DOOR & ROOM RACK)

main61115-36040iBB42,HZB50,TRB40,XZB40..SRF..GEN201501

W(ROOF RACK)

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-36010iBB4#,HZB50..RHD..STD..DSL199301-201501

main61131-36020iBB42,HZB50..RHD..STD..GEN..5F199301-201501

W(RADIO)

61133CPILLAR, FRONT BODY, LOWER OUTER RH

main61133-36010iXZB50..WOC..CBU199301-201501

61143CSUPPORT, FRONT BUMPER SIDE, RH

main61143-36010iBB4#,50,HZB50..RHD..CBU199301-201501

main61143-36020iRZB40..HRF..GCC199301-201501

61145BGUSSET, FRONT BODY PILLAR, LOWER RH

main61145-36010iHZB50..ARL199301-201501

61153CRETAINER, FRONT BODY PILLAR LOWER HINGE, RH

main61153-36020iBZB40,50200108-201501

61154BRETAINER, FRONT BODY PILLAR LOWER HINGE, LH

main61154-36010iBZB40,50200108-201501

61159DRETAINER, SIDE PANEL, NO.2 RH

main61159-36010iBB4#,5#,HZB50,RZB40,50..CBU199301-201501

61171ABRACKET, ANTENNA POLE MOUNTING

main61171-20020iBB4#,HZB50,RZB40,50..CBU199312-201501

61171CSTIFFENER, SIDE PANEL, NO.1

main61171-36010iBB42,BZB40,50,HZB50,XZB40,5#..RHD199301-201501

main61171-36030iBB42..RHD..WOC200108-201501

ROUGH ROAD PACKAGE

main61171-36030iBB42..RHD..SRF..WC201108-201501

PAPUA NEW GUINEA SPEC

61177DREINFORCEMENT, NO.1 PILLAR, CENTER

main61177-36010iBZB50..EX;BB5#..(ARL,GEN)..TDEFI199301-201501

61178AREINFORCEMENT, NO.1 PILLAR, LOWER RH

main61178-36010iHZB50..ARL199301-201501

61181ABRACKET, INSTRUMENT SIDE, RH

main53803-36010iBB59,BZB50..EX;BB50..RHD..CBU199907-201501

main61181-36010iBB4#,50,HZB50..RHD..CBU199301-199907

main61183-36010iRZB40..HRF..GCC199907-201501

W(PASSENGER DOOR)

main61183-36010iBB42,HZB50,TRB40,50,XZB40,50..LHD199301-200408

61193BCOVER, FRONT PILLAR SERVICE HOLE

main61193-36010-A0iBB4#,HZB50..DSL199301-199505

IVORY,TRIM4#

sub61193-36010

main61193-36010-A1iBB4#,5#,HZB50,RZB40,50..CBU199505-200108

IVORY,TRIM4#

sub61193-36010

main61193-36010-B0iBB50,HZB50,RZB40,50..ARL,CHI200108-201612

MD.CHARCOAL,TRIM1#

sub61193-36010

61225ARAIL, ROOF SIDE OUTER UPPER NO.1, RH

main61225-36010iBB4#,50,HZB50..RHD..CBU199301-201501

61237CRAIL, ROOF SIDE, INNER NO.4 RH

main61238-36010iBB4#,5#,HZB50,RZB40,50..CBU199301-201501

61237DPILLAR, NO.9 OUTER, UPPER RH

main61237-36010iBB4#,5#,HZB50,RZB40,50..CBU199301-201501

61239APILLAR, NO.10 RH

main61031-36020iBB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;RZB40..26S..WC..(GCC,GEN);HZB50,RZB40..LHD..WOC..GEN;BB50,58,RZB50..(23S,30199301-201501

W(DOUBLE SWING BACK DOOR)

main61031-36020iBB58199705-199808

main61031-36030iBB42..RHD..SRF;BB50..EX..TDEFI;BB42,BZB40,HZB50..RHD..HRF..STD..WC..GEN..5F199301-201501

W(SINGLE SWING BACK DOOR)

main61031-36030iBB59,BZB50;BB50..RHD..(DX,STD)..CBU200108-200408

main61031-36050iBB50..ARL200211-200608

W(VERTICAL EXHAUST PIPE)

main61239-36010iBB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50,RZB50..30S..(GCC,GEN);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC199301-200408

main61239-36010iRZB40..HRF..GCC200408-201501

W(LUGGAGE BACK DOOR)

61251APILLAR, NO.1 INNER, RH

main61034-36030iBB42,BZB40,50,HZB50,XZB40,5#..RHD201501

main61251-36010iBB42..RHD..SRF;BB50..RHD..CBU..TDEFI;BB42,59,BZB40,50..RHD..WC;HZB50..RHD..HRF..STD..WC..GEN..5F199301-201208

sub61251-36011

sub90333-35001

main61251-36011iBB42,BZB40,50,HZB50,XZB40,5#..RHD..(ARL,GEN)201209-201501

sub61034-36030

main61251-36020iRZB50;RZB40..GEN;RZB40..SRF..GCC199301-201209

sub61251-36021

sub90333-35001

main61251-36021iBB42,HZB50,TRB40,50,XZB40,50..LHD201209-201501

61272APILLAR, NO.9 INNER, RH

main61272-36030iBB4#,HZB50,RZB40,50..CBU199301-200001

sub61272-36031

main61272-36031iBB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,200001-201501

main61272-36120iHZB50..4FC199705-200001

sub61272-36121

main61272-36121iHZB50..4FC200001-200108

main61272-36130iBB42,BZB40,50,TRB40,XZB40,59;HZB50,TRB50,XZB50..20S,21S,30S201501

main61272-36170iBB42,TRB40..GCC;HZB50,TRB50,XZB50..30S..WC201501

W(CURTAIN & REAR DEFOGGER)

main61272-36180iBB42,TRB40,XZB40..26S;HZB50,TRB50,XZB50..30S201501

W(REAR DEFOGGER)

main61272-36190iBB42,TRB40..GCC;HZB50,TRB50,XZB50..30S..WC201501

W(CURTAIN)

sub61272-36170

sub90333-25003

main61272-36200iHZB50,TRB50,XZB50..26S201501

main61272-36210iHZB50,TRB50,XZB50..26S201501

W(CURTAIN)

61273PILLAR, NO.9 INNER, LOWER RH

main61273-36010iBB4#,5#,HZB50,RZB40,50..CBU199301-200001

sub61273-36030

main61273-36030iRZB50;RZB40..GEN;RZB40..SRF..GCC200001-201501

61274PILLAR, NO.10 INNER, RH

main61274-36010iBB42..RHD;BB42..LHD..SRF;BB50,HZB50,TRB40,50..26S,30S199301-201501

main61274-36020iBB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;RZB40..26S..WC..(GCC,GEN);HZB50,RZB40..LHD..WOC..GEN;BB50,58,RZB50..(23S,30199301-201501

W(DOUBLE SWING BACK DOOR)

main61274-36020iBB58199705-199808

main61274-36030iXZB50..WOC..CBU199301-201501

W(SINGLE SWING BACK DOOR)

main61274-36030iBB50,59,BZB40,50..RHD..(ARL,GEN)..(LPG,TDEFI)200104-200408

61277BJOINT, ROOF DRIP CHANNEL

main61277-36010iBB42,BZB40,50,HZB50,TRB40,50,XZB40,50200408-201501

FRONT & CENTER

main61277-36010iBB4#,5#,HZB50,RZB40,50..CBU199301-201108

main61298-36010iXZB59200104-201501

REAR

61318ARAIL, NO.6 UPPER OUTER, RH

main61317-36010iBB59200311-201501

REFER TO ILLUSTRATION : NO. 4 OF 5

main61318-36010iRZB50;RZB40..GEN;RZB40..SRF..GCC199301-201501

61338BRAIL, REAR SIDE NO.2, RH

main61338-36010iHZB50..(20S,30S)..(GCC,GEN);BB42,5#,RZB40,50..(17S,22S,26S,30S)..(GCC,GEN)199301-201501

main61338-36020iBZB40;BB50..EX..TDEFI200104-201501

W(SINGLE SWING BACK DOOR)

main61338-36020iBB59,BZB50;BB50..RHD..(DX,STD)..CBU200108-200408

main61338-36020iHZB50..ARL199312-200408

W(*SSBD)

61356CHANNEL, ROOF DRIP SIDE, FRONT RH

main61356-36010iBB42..LHD..HRF199301-201501

61357CHANNEL, ROOF DRIP SIDE, CENTER NO.1

main61357-36010iBB4#,5#,HZB50,RZB40,50..CBU199301-201501

61358BCHANNEL, ROOF DRIP SIDE, REAR RH

main61358-36010iBB4#,5#,HZB50,RZB40,50..CBU199301-201501

61367CCHANNEL, ROOF DRIP SIDE, CENTER NO.1

main61357-36010iBB5#,HZB50,RZB50..CBU199301-201501

main61367-36010iBB42..LHD..HRF199301-201501

61397PATCH, CENTER BODY PILLAR, INNER RH

main61397-36030iBB42..RHD..WOC200402-201501

61418BRAIL, NO.8 LOWER OUTER, RH

main61418-36010iBB42..LHD..HRF199301-201206

main61418-36040iXZB59200311-201501

main61418-36050iBB42,50,HZB50,TRB40,50201206-201501

61419BRAIL, NO.9 LOWER OUTER

main61419-36010iHZB50..(20S,30S)..(GCC,GEN);BB42,50,RZB40,50..(17S,22S,26S,30S)..(GCC,GEN)199301-201501

61452PANEL, ROCKER INNER, FRONT RH

main61452-36010iBB59,BZB50..EX;BB50..RHD..CBU199301-201501

61453APANEL, ROCKER INNER, REAR RH

main61453-36010iXZB50..WOC..CBU199301-201501

61455ARETAINER, FRONT STEP, RH

main61159-60010iBB42,BZB40,50,HZB50,TRB40,50,XZB40,5#199312-201501

main61455-36010iBB4#,HZB50,RZB40,50..CBU199301-199312

sub61159-60010

61487REINFORCEMENT, NO.10 PILLAR, UPPER RH

main61487-36010iHZB50..4FC199705-200108

61526BBRACKET, SEAT ANCHOR, NO.2 RH

main61509-36010iBB42,HZB50..RHD..STD..GEN..5F199301-199705

W(*SSBD)

main61509-36011iBB58,59;BZB50..EX;BB50..RHD..CBU200408-201501

W(SINGLE SWING BACK DOOR)

main61509-36011iBB42,HZB50..RHD..STD..GEN..5F199705-200211

W(*DSBD)

main61509-36011iBB42,HZB50..RHD..STD..GEN..5F199705-200408

W(*SSBD) OR W(*DSBD)

main61509-36011iXZB40;XZB50..GEN..4FC199907-201501

main61525-36060iXZB50..WOC..CBU200708-201501

W(SINGLE SWING BACK DOOR)

main61525-36060iXZB50..TAIW201108-201501

W(DOUBLE SWING BACK DOOR)

main61525-36080iHZB50..RHD201501

W(SINGLE SWING BACK DOOR)

main61525-36080iHZB50..RHD201501

W/O(NO.8 SEAT)

main61526-36010iRZB50;RZB40..GEN;RZB40..SRF..GCC200108-201501

W(DOUBLE SWING BACK DOOR)

main61526-36010iBB50,RZB40,50..CHI199301-201501

61532FGUSSET, SEAT ANCHOR, NO.1

main61532-36010iBB4#,5#,HZB50,RZB40,50..CBU199301-201501

main61532-36020iBB42,BZB40,50,HZB50,XZB40,5#..RHD201501

main61532-36030iBB42,HZB50,TRB40,50,XZB40,50..LHD201501

61557BGUSSET, PILLAR TO RAIL, NO.2

main61557-36020iBB4#,5#,HZB50,RZB40,50..CBU199301-201501

61582ABRACKET, REAR SEAT, NO.2

main61582-36010iBB4#,50,HZB50,RZB40,50..CBU199312-201501

main61582-36020iBB42,BZB40,50,HZB50,TRB40,50,XZB40,5#201501

61592BRACKET, STIFFENER, NO.2

main61592-36010iBB4#,5#,HZB50,RZB40,50..CBU199301-201501

61594BRACKET, STIFFENER, NO.4

main61594-36010iXZB50..WOC..CBU199301-201501

61615DPILLAR, NO.10 OUTER, UPPER RH

main61615-36010iBB42,HZB50,RZB40,50..GCC,GEN199301-201501

61631LPANEL, REAR WHEEL HOUSE, OUTER RH

main61631-36010iBB4#,5#,HZB50,RZB40,50..CBU199301-201501

61651AGUSSET, PILLAR SHEAR, NO.1 RH

main51031-36021iBB42,HZB50,TRB40,50,XZB50..GCC,TAIW200708-201501

main51031-36030iXZB50..STD..GEN200708-201501

main61651-36010iBB42..RHD..SRF;BB50..RHD..CBU..TDEFI;BB42,59,BZB40,50..RHD..WC;HZB50..RHD..HRF..STD..WC..GEN..5F199301-200708

main61651-36020iBB42,5#,HZB50,RZB40,50..LHD..CBU199301-200708

main61651-36041iBB42..LHD..HRF200708-201501

main61651-36050iBB42..RHD..SRF..WC200708-201501

61669ARETAINER, FRONT DOOR OPEN SWITCH SET

main61669-36010iXZB50..WOC..CBU199301-201501

61687BBRACKET, MUDGUARD, REAR RH

main61687-36010iBB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD)199301-201501

61705SCOVER SUB-ASSY, COOLER CONDENSER AIR INTAKE

main61705-36010iRZB50..GCC;BB4#,RZB40..WC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..WC..5F..DSL;HZB50..RHD..HRF..WC..DSL199301-199506

main61705-36011iRZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC..CBU;HZB50..LHD..WC..5F..DSL;HZB50..RHD..HRF..WC..DSL199506-200108

sub61705-36012

main61705-36012iBB50,HZB50,RZB40,50..WC..(ARL,CHI)200108-201501

main61705-36030iBZB40,50..STD200108-201501

61771PATCH, BACK DOOR OPENING, UPPER RH

main61771-36020iBB42..RHD..WOC200402-201501

61773APATCH, BACK DOOR OPENING, LOWER RH

main61773-36010iBB42..RHD..WOC200402-201501

61793BBRACKET, COOLER CONDENSER, NO.1

main61793-36010iRZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC..CBU;HZB50..LHD..WC..5F..DSL;HZB50..RHD..HRF..WC..DSL199301-199808

sub61793-36011

main61793-36011iRZB50..GCC;HZB50..HRF..WC;RZB50..HRF..GEN;HZB50..LHD..SRF..WC;BB4#,5#,RZB40..WC..CBU199808-201501

61813APLATE, DUSTPROOF, NO.1 RH

main61813-36010iBB4#,50,HZB50..RHD..CBU199301-201501

main61813-36020iBB42..WC..GCC;RZB40..WOC..GEN;RZB40..(17S,26S)..WC..(GCC,GEN);BB42,50..LHD..(19S,26S)..GEN..(DSL,TDEFI);BB50,58,HZB50,RZB50..LHD..(20S,23S,30S)..(GCC,GEN)199301-201501

61852APLATE, NO.5 PILLAR BOARD SET

main61852-36010iBB42,HZB50,RZB40,50..GCC,GEN199301-199404

sub61852-36011

main61852-36011iHZB50..(20S,30S)..(GCC,GEN);BB42,50,RZB40,50..(17S,22S,26S,30S)..(GCC,GEN)199404-201206

main61852-36020iBB42,50,HZB50,TRB40,50201206-201501

61859COVER, FRONT DOOR STEP, RH

main61859-36010iHZB50..ARL199301-201501

61887RAIL, SIDE PANEL DUST PROOF, NO.1 RH

main61887-36010iHZB50..RHD..SRF;BB43,50..RHD..5F;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN199301-201501

main61888-36010iBB42,HZB50,RZB40,50..LHD..CBU199301-199406

sub61888-36030

main61888-36030iBB42..LHD..HRF199406-201501

61889RETAINER, SIDE PANEL

main61889-36010iBB42,HZB50,RZB40,50..SRF199301-201501

61895RAIL, SIDE PANEL DUST PROOF, NO.2 RH

main61895-36010iBB5#,HZB50,RZB50..CBU199301-201501

main61895-36020iBB42,BZB40,TRB40,XZB40199301-201501

61897RAIL, SIDE PANEL DUST PROOF, NO.3 RH

main61897-36010iRZB40..HRF..GCC199301-201501

63147EBRACKET, ROOF PANEL REINFORCEMENT

main63147-36010iBB50..DX,EX;BB50..STD..CBU;BB4#,58,59,BZB40,50,HZB50,RZB40,50..HRF199301-201205

sub63147-36011

main63147-36010iBB42..LHD..WOC..GEN199609-199703

EGYPT SPEC

sub63147-36011

main63147-36011iBB42,50,BZB40,50,HZB50,TRB40,50,XZB40,5#..HRF..(ARL,GCC,GEN,TAIW)201206-201501

main63147-36020iBB42,HZB50..RHD..SRF199907-200202

63214ECHANNEL, ROOF DRIP, REAR, RH

main63214-36010iBB42,HZB50,RZB40,50..GCC,GEN199301-201501

64251ABRACKET, REAR SEATBACK STOP

main64251-36010iBB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;RZB40..26S..WC..(GCC,GEN);BB50,RZB50..30S..(GCC,GEN);HZB50,RZB40..LHD..WOC..GEN;BB42,HZB50..HRF199301-201501

main64251-36020iBB42,TRB40,XZB40..26S;HZB50,TRB50,XZB50..30S201501

65415CPANEL, REAR BODY, FRONT RH

main65415-36010iBB42..RHD..SRF;BB42,BZB40..RHD..WC199301-201501

main65415-36020iBB50,59,BZB50..5F..(LPG,TDEFI);HZB50..RHD..HRF..STD..WC..GEN..5F199301-200404

sub65415-36021

main65415-36021iXZB5#..EX..5F201501

SINGAPORE SPEC

main65415-36021iBZB50..STD200404-201501

main65415-36040iHZB50..ARL199301-199505

sub65415-36080

main65415-36050iBB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN199301-201501

main65415-36060iBB5#,HZB50,RZB50..LHD..CBU199301-200404

sub65415-36061

main65415-36061iBB50..GEN..6F200404-201501

main65415-36070iBB40199505-199907

main65415-36080iHZB50..ARL199505-200404

sub65415-36081

main65415-36081iXZB50..ARL200404-201501

main65415-36100iRZB40..CHI200012-200211

main65415-36110iBB50,RZB50..CHI200008-200404

sub65415-36111

main65415-36111iBB58200404-201501

main65415-36120iBZB40,XZB40201209-201501

main65415-36130iBZB50,XZB50..RHD..GEN201501

main65415-36130iBZB50,XZB50..GEN201209-201501

W(REFLECTOR HOLE)

main65415-36140iXZB59201209-201501

W(REFLECTOR HOLE)

main65415-36140iXZB59201501

65417PANEL, REAR BODY, REAR RH

main65417-36010iXZB50..WOC..CBU199301-201501

main65417-36030iBB50..ARL200408-200508

sub65417-36010

main65417-36050iBB58200008-201501

65536BPATCH, SIDE PANEL REINFORCEMENT, RH

main65536-36010iBB42..RHD..WOC200402-201501

77604DCOVER SUB-ASSY, FUEL TANK VALVE

main77604-36010iBZB50..EX200108-201501

9015940104

main90159-40104

9015960454

main90159-60454

9018904014

main90189-04014

9033325001

main90333-25001

9033330002

main90333-30002

9054107093

main90541-07093

9095001056

main90950-01056

9095001167

main90950-01167

9095001599

main90950-01599

9095001763

main90950-01763

9095006028

main90950-06028

91631J0612

main91631-J0612

9338316014

main93383-16014

91 parts on this diagram · 24 diagrams in section
