Toyota COASTER — SIDE MEMBER

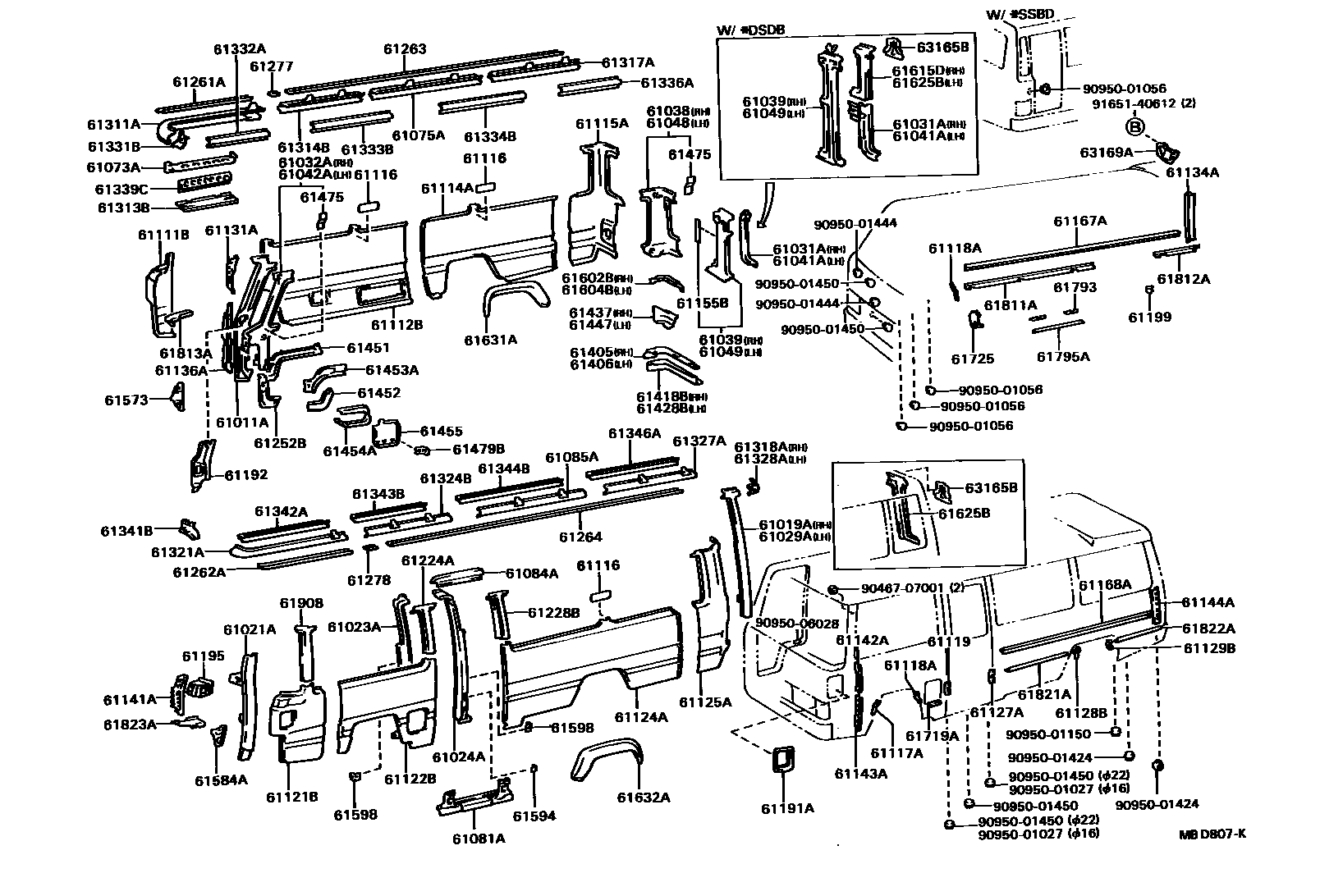

Parts diagram
61011APILLAR SUB-ASSY, NO.1 RH
main61011-90B00i198205-199301
main61011-90B01i198205-199301
main61011-90B01i198205-199301
W/ACCELERATOR INTER LOCK
main61011-90B02i198205-199301
main61011-90B03i198510-199301
main61011-90B03i198405-198510
HONG KONG SPEC
main61011-90B05i199012-199301
HONG KONG PACKAGE 2 & W/*SSBD;HONG KONG PACKAGE 3 & W/*SSBD
61019APILLAR SUB-ASSY, NO.9 RH
main61019-90B00i198205-198309
main61019-90B01i198205-199301
61021APILLAR SUB-ASSY, NO.1 LH
main61021-90B00i198205-199301
main61021-90B01i198205-199301
W/ACCELERATOR INTER LOCK
main61021-90B01i199001-199301
main61021-90B02i198205-199301
61023APILLAR SUB-ASSY, NO.3 LH
main61023-90B00i198205-199301
main61023-90B00i198206-199301
W/FOLDING DOOR
main61023-90B01i198205-198310
W/GLIDE DOOR
main61023-90B01i198310-199301
W/GLIDE DOOR,AUTO GLIDE DOOR
main61023-90B01i199012-199301
HONG KONG PACKAGE 2 & W/GLIDING TYPE CENTER DOOR & *SSBD;HONG KONG PACKAGE 3 & W/GLIDING TYPE CENTER DOOR & *SSBD
main61023-90B03i199001-199301
61024APILLAR SUB-ASSY, NO.4 LH
main61024-90B00i198206-199301
W/FOLDING DOOR
main61024-90B00i198205-199301
main61024-90B01i199012-199301
HONG KONG PACKAGE 2 & W/GLIDING TYPE CENTER DOOR & *SSBD;HONG KONG PACKAGE 3 & W/GLIDING TYPE CENTER DOOR & *SSBD
main61024-90B01i198205-198310
W/GLIDE DOOR
main61024-90B01i198310-199301
W/GLIDE DOOR,AUTO GLIDE DOOR
main61024-90B03i199001-199301
61029APILLAR SUB-ASSY, NO.9 LH
main61029-90B00i198205-198309
main61029-90B01i198205-198309
main61029-90B02i198309-199301
61031APILLAR SUB-ASSY, NO.10 RH
main61031-90B00i198205-199301
main61031-90B01i198510-199301
W/*SSBD
main61031-90B01i198408-198510
HONG KONG SPEC
main61031-90B01i199001-199301
main61031-90B02i198205-199301
main61031-90B03i198302-199301
W/*DSBD
61032APILLAR SUB-ASSY, NO.1 INNER, RH
main61032-90B00i198205-199301
main61032-90B01i198205-199301
61038PILLAR SUB-ASSY, NO.9 INNER, RH
main61038-36010i199102-199301
W/*RWD
main61038-90B00i198205-199301
main61038-90B01i198205-199301
main61038-90B02i198205-199301
W/*RWD
main61038-90B03i198205-199301
W/*RWD
main61038-90B04i198402-199301
W/FOLDING SEAT
main61038-90B05i198510-199301
W/*SSBD
main61038-90B05i198405-198510
HONG KONG SPEC
main61038-90B06i198510-199301
W/*SSBD
main61038-90B06i198405-198510
HONG KONG SPEC,W/COOLER
main61038-90B08i198205-199102
W/*RWD
main61038-90B09i198205-199301
main61038-90B10i198302-199301
W/*DSBD
main61038-90B11i198302-199301
W/*DSBD
main61038-90B12i198304-198306
W/*DSBD
main61038-90B13i198402-199301
W/FOLDING SEAT
main61038-90B15i198402-199301
W/*RWD,FOLDING SEAT
main61038-90B16i198402-198608
W/*RWD,FOLDING SEAT
61039PILLAR SUB-ASSY, NO.10 INNER, RH
main61039-90B00i198205-199301
main61039-90B01i198402-199301
W/O RR SEAT
main61039-90B01i198205-198402
main61039-90B01i198208-198402
W/FOLDING SEAT OR W/O RR SEAT
main61039-90B01i198205-198208
W/FOLDING SEAT
main61039-90B02i198302-199301
W/*DSBD
main61039-90B03i198302-199301
W/*DSBD
main61039-90B04i198302-199301
W/*DSBD
main61039-90B05i198402-199301
W/FOLDING SEAT
61041APILLAR SUB-ASSY, NO.10, LH
main61041-90B00i198510-199301
W/*SSBD
main61041-90B00i199012-199301
HONG KONG PACKAGE 2 & W/GLIDING TYPE CENTER DOOR & *SSBD;HONG KONG PACKAGE 3 & W/GLIDING TYPE CENTER DOOR & *SSBD
main61041-90B02i198302-199301
W/*DSBD
main61041-90B03i198405-198510
HONG KONG SPEC
main61041-90B03i198510-199301
main61249-90B00i198205-199301
61042APILLAR SUB-ASSY, NO.1 INNER, LH
main61042-90B01i198205-199301
main61042-90B02i198205-199301
61048PILLAR SUB-ASSY, NO.9 INNER, LH
main61048-36020i199102-199301
W/*RWD
main61048-90B00i198205-199301
main61048-90B01i198205-199301
main61048-90B02i198205-199301
W/*RWD
main61048-90B03i198205-198608
W/*RWD
main61048-90B04i198610-199301
main61048-90B05i198510-199301
W/*SSBD
main61048-90B05i198405-198510
HONG KONG SPEC
main61048-90B05i198302-199301
W/*DSBD
main61048-90B06i198302-199301
W/*DSBD
main61048-90B06i198510-199301
W/*SSBD
main61048-90B06i198405-198510
HONG KONG SPEC,W/COOLER
main61048-90B08i198205-199301
W/*RWD
main61048-90B09i198205-199102
main61048-90B10i198205-199102
W/*RWD
main61048-90B12i198205-199301
main61048-90B15i198610-199301
W/*DSBD
main61048-90B16i198304-199301
W/*DSBD
main61048-90B17i198402-199301
W/FOLDING SEAT
main61048-90B18i198610-199301
W/*RWD,FOLDING SEAT
main61048-90B19i198402-199301
W/*RWD,FOLDING SEAT
main61048-90B21i198402-199301
W/*RWD,FOLDING SEAT
main61048-90B22i198402-199301
W/FOLDING SEAT
main61048-90B36i199012-199301
HONG KONG PACKAGE 2 & W/*SSBD;HONG KONG PACKAGE 3 & W/*SSBD
61049PILLAR SUB-ASSY, NO.10 INNER, LH
main61049-90B00i198205-199301
main61049-90B01i198402-199301
W/O RR SEAT
main61049-90B01i198205-198208
W/FOLDING SEAT
main61049-90B01i198208-198402
W/FOLDING SEAT OR W/O RR SEAT
main61049-90B01i198303-198402
main61049-90B01i198402-199301
W/*RWD
main61049-90B02i198510-199301
W/*SSBD
main61049-90B02i198302-199301
W/*DSBD
main61049-90B03i198302-199301
W/*DSBD
main61049-90B03i198510-199301
W/*SSBD
main61049-90B04i198510-199301
W/*SSBD
main61049-90B04i198302-199301
W/*DSBD
main61049-90B04i199012-199301
HONG KONG PACKAGE 2 & W/*SSBD;HONG KONG PACKAGE 3 & W/*SSBD
main61049-90B05i198510-199301
main61049-90B05i198405-198510
HONG KONG SPEC,W/COOLER
main61049-90B06i198405-198510
HONG KONG SPEC
main61049-90B07i198402-199301
W/FOLDING SEAT
61073APANEL SUB-ASSY, FRONT VENTILATOR, RH
main61073-90B00i198205-199301
61075ARAIL SUB-ASSY, NO.3 UPPER OUTER, RH
main61075-90B00i198205-199301
main61075-90B01i198205-199301
W/ROOF RACK
main61075-90B02i198205-199301
main61075-90B03i198205-199301
main61075-90B04i198205-199301
W/ROOF RACK
main61075-90B05i198205-199301
61081ARAIL SUB-ASSY, NO.2 LOWER OUTER, LH
main61081-90B01i198205-199301
main61081-90B03i198205-198310
W/GLIDE DOOR
main61081-90B05i198206-199301
W/FOLDING DOOR
main61081-90B05i198205-199301
main61081-90B06i198310-199301
W/GLIDE DOOR,AUTO GLIDE DOOR
61084ARAIL SUB-ASSY, CENTER DOOR, LH
main61084-90B00i198206-199301
W/FOLDING DOOR
main61084-90B00i198205-199301
61085ARAIL SUB-ASSY, NO.3 UPPER OUTER, LH
main61085-90B00i198205-199301
main61085-90B01i198205-199301
W/ROOF RACK
main61085-90B02i198205-199301
main61085-90B04i198205-199301
W/ROOF RACK
main61085-90B05i198205-199301
main61086-90B00i198205-199301
61111BPANEL, NO.1 SIDE, RH
main61111-90B00i198205-198708
main61111-90B02i198205-198708
main61111-90B05i198610-198708
W/COOL AIR INTAKE SNORKEL TYPE
main61111-90B06i198610-198708
W/COOL AIR INTAKE SNORKEL TYPE
main61111-90B07i198708-199301
main61111-90B08i198708-199301
main61111-90B10i198708-199301
W/COOL AIR INTAKE SNORKEL TYPE
main61111-90B11i199001-199002
main61111-90B11i198708-199301
W/COOL AIR INTAKE SNORKEL TYPE
main61111-90B13i199008-199301
61112BPANEL, NO.2 SIDE, RH
main61112-90B00i198205-199301
main61112-90B01i198405-198510
W/COOLER
main61112-90B01i198205-199301
main61112-90B03i198205-199301
main61112-90B04i198310-199301
W/GLIDE DOOR,AUTO GLIDE DOOR
main61112-90B08i199008-199301
61114APANEL, NO.3 SIDE, RH
main61114-90B00i198205-199301
main61114-90B02i198610-199301
main61114-90B03i198205-199301
main61114-90B04i198205-199301
main61114-90B05i198310-199301
W/GLIDE DOOR,AUTO GLIDE DOOR
main61114-90B06i198310-199301
W/GLIDE DOOR,AUTO GLIDE DOOR
main61114-90B10i199008-199301
main61114-90B11i199008-199301
61115APANEL, NO.4 SIDE, RH
main61107-90B00i198205-199301
W/ROOF RACK
main61107-90B03i198901-199001
NEW GUINEA SPEC
main61107-90B04i199002-199301
main61107-90B04i198901-199001
NEW GUINEA SPEC
main61107-90B05i198901-199001
NEW GUINEA SPEC,W/*SSBD
main61107-90B06i198901-199001
NEW GUINEA SPEC,W/ROOF RACK
main61107-90B07i198901-199001
NEW GUINEA SPEC,W/*DSBD
main61107-90B08i199002-199301
W/*DSBD
main61107-90B08i198901-199001
NEW GUINEA SPEC,W/*DSBD
main61115-90B00i198205-199301
main61115-90B01i198205-198708
main61115-90B02i198510-198708
W/*SSBD
main61115-90B02i198405-198510
HONG KONG SPEC
main61115-90B04i198302-198708
W/*DSBD
main61115-90B05i198302-198708
W/*DSBD
main61115-90B09i198708-199301
main61115-90B10i198708-199002
main61115-90B11i198708-199301
W/*SSBD
main61115-90B12i198708-199301
W/*DSBD
main61115-90B13i198708-199301
W/*DSBD
61116LINING, SIDE PANEL, REINFORCEMENT
main61116-90B02i199001-199301
61117AGUSSET, SIDE PANEL RELIEF, NO.1
main61117-90B00i198205-198707
main61117-90B01i198707-199301
main61118-90B00i198205-198707
main61118-90B01i198707-199301
61118AGUSSET, SIDE PANEL RELIEF, NO.2
main61117-90B00i198205-198707
RH
main61117-90B01i198707-199301
RH
main61118-90B00i198205-198707
LH
main61118-90B01i199001-199301
main61118-90B01i198707-199301
LH
61119GUSSET, SIDE PANEL RELIEF, NO.3
main61119-90B00i198206-199301
W/FOLDING DOOR
main61119-90B00i198205-199301
main61119-90B01i198205-198310
W/GLIDE DOOR
main61119-90B01i198310-199301
W/GLIDE DOOR,AUTO GLIDE DOOR
main61127-90B00i198205-199301
61121BPANEL, NO.1 SIDE, LH
main61121-90B00i198205-198708
main61121-90B02i198205-198708
main61121-90B04i198208-198708
W/COOL AIR INTAKE SNORKEL TYPE
main61121-90B05i198308-198708
W/COOL AIR INTAKE SNORKEL TYPE
main61121-90B11i198708-199301
main61121-90B12i198708-199301
main61121-90B13i198708-199301
W/COOL AIR INTAKE SNORKEL TYPE
main61121-90B14i199002-199301
main61121-90B14i198708-199301
W/COOL AIR INTAKE SNORKEL TYPE
main61121-90B21i199008-199301
61122BPANEL, NO.2 SIDE, LH
main61122-90B00i198206-199301
W/FOLDING DOOR
main61122-90B00i198205-199301
main61122-90B01i198205-198310
W/GLIDE DOOR
main61122-90B01i198310-199301
W/GLIDE DOOR,AUTO GLIDE DOOR
main61122-90B03i198205-199301
61124APANEL, NO.3 SIDE, LH
main61124-90B00i198205-199301
main61124-90B00i198206-199008
W/FOLDING DOOR
main61124-90B01i199008-199301
main61124-90B01i198310-199008
W/GLIDE DOOR,AUTO GLIDE DOOR
main61124-90B01i198205-198310
W/GLIDE DOOR
main61124-90B03i198610-199301
main61124-90B04i198205-199301
main61124-90B05i199008-199301
main61124-90B06i199008-199205
main61124-90B07i199008-199301
61125APANEL, NO.4 SIDE, LH
main61108-90B02i199002-199301
main61108-90B04i199002-199301
W/*DSBD
main61125-90B00i198205-198708
main61125-90B01i198205-198708
main61125-90B02i198510-198708
W/*SSBD
main61125-90B02i198302-198708
W/*DSBD
main61125-90B03i198510-198708
W/*SSBD
main61125-90B03i198302-198708
W/*DSBD
main61125-90B03i198405-198510
HONG KONG SPEC
main61125-90B06i198708-199301
main61125-90B07i198708-199301
main61125-90B08i198708-199301
W/*DSBD
main61125-90B08i198708-199301
W/*SSBD
main61125-90B09i198708-199301
W/*DSBD
main61125-90B09i198708-199301
W/*SSBD
61127AGUSSET, SIDE PANEL RELIEF, NO.4
main61119-90B00i198205-199301
main61119-90B01i198310-199301
W/GLIDE DOOR,AUTO GLIDE DOOR
main61127-90B00i198205-199301
61128BGUSSET, SIDE PANEL RELIEF, NO.5
main61128-90B00i198205-199301
RH
main61129-90B00i198205-199301
LH
61129BGUSSET, SIDE PANEL RELIEF, NO.6
main61128-90B00i198205-199301
LH
main61129-90B00i198205-199301
RH
61131ASTRENGTH, SIDE PANEL, NO.1 RH
main61131-90B00i198205-199301
main61131-90B01i198205-199301
61134ASTRENGTH, SIDE PANEL, NO.3 UPPER RH
main61134-90B00i198205-199301
61136APANEL, FRONT SIDE END, RH
main61136-90B00i198205-199301
61141ASTRENGTH, SIDE PANEL, NO.1 LH
main61141-90B00i198205-198503
main61141-90B01i198205-199301
61142ASTRENGTH, SIDE PANEL, NO.2 UPPER LH
main61142-90B00i198205-199301
61143ASTRENGTH, SIDE PANEL, NO.2 LOWER LH
main61143-90B00i198205-199301
61144ASTRENGTH, SIDE PANEL, NO.3 UPPER LH
main61144-90B00i198205-199301
61155BGUSSET, CENTER RAIL, OUTER
main61155-90B00i199001-199301
61167ASTIFFENER, SIDE PANEL, LOWER RH
main61167-90B00i198205-199301
main61167-90B01i198610-199301
main61168-90B00i198205-199301
main61169-90B01i198610-199301
61168ASTIFFENER, SIDE PANEL, LOWER LH
main61167-90B00i198205-199301
main61167-90B01i198610-199301
main61168-90B00i198205-199301
main61169-90B01i198610-199301
61191AREINFORCEMENT, SIDE LOWER WINDOW
main61191-90B00i198205-199301
61192REINFORCEMENT, NO.1 OUTER PILLAR, RH
main61192-90B00i199001-199301
61195RETAINER, OUTER SIDE MIRROR, LH
main61195-90B00i198205-199301
61199BRACKET, SIDE PANEL TO REAR MUDGUARD
main61199-90B00i198205-199301
61224APILLAR, NO.3 OUTER, UPPER LH
main61224-90B00i198206-199301
W/FOLDING DOOR
main61224-90B00i198205-199301
main61224-90B01i198310-199301
W/GLIDE DOOR,AUTO GLIDE DOOR
main61224-90B01i199012-199301
HONG KONG PACKAGE 2 & W/GLIDING TYPE CENTER DOOR & *SSBD;HONG KONG PACKAGE 3 & W/GLIDING TYPE CENTER DOOR & *SSBD
main61224-90B01i198205-198310
W/GLIDE DOOR
61228BPILLAR, NO.4 OUTER, UPPER LH
main61228-90B00i198206-199301
W/FOLDING DOOR
main61228-90B00i198205-199301
main61228-90B01i198310-199301
W/GLIDE DOOR,AUTO GLIDE DOOR
main61228-90B01i198205-198310
W/GLIDE DOOR
main61228-90B01i199012-199301
HONG KONG PACKAGE 2 & W/GLIDING TYPE CENTER DOOR & *SSBD;HONG KONG PACKAGE 3 & W/GLIDING TYPE CENTER DOOR & *SSBD
61252BPILLAR, NO.1 INNER, LOWER RH
main61252-90B00i198205-199301
61261CHANNEL, ROOF DRIP, RH
main61357-90B04i198610-199301
61261ACHANNEL, ROOF DRIP SIDE, FRONT RH
main61356-90B00i198205-199301
main61356-90B01i198205-199301
61262CHANNEL, ROOF DRIP, LH
main61357-90B04i198610-199301
61262ACHANNEL, ROOF DRIP SIDE, FRONT LH
main61366-90B00i198205-199301
main61366-90B01i198205-199301
main61366-90B03i198610-199301
61263CHANNEL, ROOF DRIP, REAR RH
main61358-90B00i198205-199301
61264CHANNEL, ROOF DRIP, REAR LH
main61368-90B00i198205-199301
61277JOINT, ROOF DRIP CHANNEL, FRONT RH
main61359-90B00i198205-199301
61278JOINT, ROOF DRIP CHANNEL, FRONT LH
main61359-90B00i198205-199301
61311ARAIL, NO.1 UPPER OUTER, RH
main61077-90B00i198205-199301
main61077-90B01i198205-199301
main61311-90B00i198205-199301
main61311-90B01i198205-199301
61313BRAIL, NO.1 UPPER OUTER, LOWER RH
main61313-90B00i198205-199301
61314BRAIL, NO.2 UPPER OUTER, RH
main61078-90B00i198205-199301
W/ROOF RACK
main61078-90B01i198205-199301
main61078-90B02i198205-199301
W/ROOF RACK
main61078-90B03i198205-199301
main61078-90B04i198310-199301
W/GLIDE DOOR,AUTO GLIDE DOOR
main61078-90B05i198310-199301
W/ROOF PACK,AUTO GLIDE DOOR;W/ROOF RACK,GLIDE DOOR
main61078-90B06i198610-199301
W/ROOF RACK
main61078-90B07i198610-199301
W/ROOF RACK
main61078-90B08i198610-199301
W/ROOF RACK,GLIDE DOOR
main61314-90B00i198205-199301
main61314-90B01i198205-199301
main61324-90B01i198610-199301
W/GLIDE DOOR,AUTO GLIDE DOOR
61317ARAIL, NO.3 UPPER OUTER, RH
main61079-90B00i198205-199301
main61079-90B01i198610-199301
main61317-90B00i198205-199301
main61317-90B01i198610-199301
61318ARAIL, NO.6 UPPER OUTER, RH
main61318-90B00i198205-199301
61321ARAIL, NO.1 UPPER OUTER, LH
main61321-90B00i198205-199301
main61321-90B01i198205-199301
main61408-90B00i198205-199301
main61408-90B01i198205-199301
W/SEAT BELT
main61408-90B02i198205-199301
61324BRAIL, NO.2 UPPER OUTER, LH
main61078-90B05i198310-199301
W/AUTO GLIDE DOOR,ROOF PACK;W/GLIDE DOOR,ROOF RACK
main61088-90B00i198205-199301
W/ROOF RACK
main61088-90B01i198206-199301
W/FOLDING DOOR
main61088-90B01i198205-199301
main61088-90B02i198310-199301
W/GLIDE DOOR,AUTO GLIDE DOOR
main61088-90B02i198205-198310
W/GLIDE DOOR
main61088-90B03i198205-199301
W/ROOF RACK
main61088-90B04i198205-199301
main61088-90B06i198610-199301
W/ROOF RACK
main61088-90B07i198610-199301
W/ROOF RACK
main61088-90B08i198610-199001
W/GLIDE DOOR,ROOF RACK
main61324-90B00i198205-199301
main61324-90B01i199102-199301
W/GLIDING AUTO DOOR & CARTAIN OR W/CARTAIN & GLIDE DOOR
main61324-90B01i198310-199301
W/GLIDE DOOR,AUTO GLIDE DOOR
main61324-90B02i198205-199301
61327ARAIL, NO.5 UPPER OUTER, LH
main61089-90B00i198205-199301
main61089-90B01i198610-199301
main61327-90B00i198205-199301
main61327-90B01i198610-199301
61328ARAIL, NO.6 UPPER OUTER, LH
main61328-90B00i198205-199301
61331BRAIL, NO.1 UPPER INNER, FRONT RH
main61331-90B00i198205-199301
main61331-90B01i198205-199301
61332ARAIL, NO.1 UPPER INNER, REAR RH
main61332-36010i199102-199301
main61332-90B00i198205-199301
main61332-90B01i198205-199102
61333BRAIL, NO.2 UPPER INNER, RH
main61333-90B00i198205-199301
main61333-90B01i198205-199301
61334BRAIL, NO.3 UPPER INNER, RH
main61334-36010i199102-199301
main61334-90B00i198205-199301
main61334-90B01i198205-199102
61336ARAIL, NO.5 UPPER INNER, RH
main61336-90B00i198205-199102
main61336-90B01i199001-199102
main61336-90B03i199102-199301
main61336-90B04i199102-199301
W/CARTAIN
61339CRAIL, NO.1 UPPER, INNER LOWER
main61339-90B00i198205-199301
61341BRAIL, NO.1 UPPER INNER, FRONT LH
main61341-90B00i198205-199301
main61341-90B01i198205-199301
61342ARAIL, NO.1 UPPER INNER, REAR LH
main61342-90B00i198205-199301
main61342-90B01i198205-199301
W/SEAT BELT
main61342-90B02i198205-199301
61343BRAIL, NO.2 UPPER INNER, LH
main61343-36010i199102-199301
main61343-90B00i198206-199301
W/FOLDING DOOR
main61343-90B00i198205-199301
main61343-90B01i198310-199301
W/GLIDE DOOR,AUTO GLIDE DOOR
main61343-90B01i198205-198408
W/AUTO GLIDE DOOR
main61343-90B02i198205-199102
main61343-90B03i198310-199301
W/GLIDE DOOR,AUTO GLIDE DOOR
main61343-90B03i198205-199301
61344BRAIL, NO.3 UPPER INNER, LH
main61344-36010i199102-199301
main61344-90B00i198205-199301
main61344-90B01i198205-199102
61346ARAIL, NO.5 UPPER INNER, LH
main61346-90B00i198205-199102
main61346-90B01i199001-199102
main61346-90B02i199102-199301
main61346-90B03i199102-199301
61405RAIL SUB-ASSY, NO.7 LOWER INNER, LOWER RH
main61405-90B00i198205-198207
main61405-90B01i198205-198207
*GIS
main61405-90B01i198207-199301
61406RAIL SUB-ASSY, NO.7 LOWER INNER, LOWER LH
main61406-90B00i198205-198207
main61406-90B01i198205-198207
*GIS
main61406-90B01i198207-199301
61418BRAIL, NO.8 LOWER OUTER, RH
main61418-90B00i198205-198207
main61418-90B01i198205-198207
*GIS
main61418-90B01i198207-199301
61428BRAIL, NO.8 LOWER OUTER, LH
main61428-90B00i198205-198207
main61428-90B01i198205-198207
*GIS
main61428-90B01i198207-199301
61437RAIL, NO.7 LOWER INNER, RH
main61437-90B00i198205-199301
61447RAIL, NO.7 LOWER INNER, LH
main61447-90B00i198205-199301
61451PANEL, ROCKER, OUTER RH
main61451-90B00i198205-199301
61452PANEL, ROCKER INNER, FRONT RH
main61452-90B00i198205-199301
61453APANEL, ROCKER INNER, REAR RH
main61453-90B00i198205-199301
61454APANEL, FRONT DOOR STEP, RH
main61454-90B00i198205-199301
61455PANEL, FRONT DOOR STEP SIDE, RH
main61455-90B00i198205-199301
61475BRACKET, CENTER RAIL INSIDE CUSHION, NO.1
main61475-90B00i199001-199301
61479BBRACKET, FRONT DOOR STEP MUDGUARD
main61479-90B00i199001-199301
61573EXTENSION, FLOOR PANEL, NO.1
main61501-90B00i198205-199301
main61573-90B00i198205-199301
61584AEXTENSION, FLOOR PANEL, NO.2 LH
main61584-90B00i198205-199301
61594BRACKET, STIFFENER, NO.4
main61594-90B00i199001-199301
HONG KONG SPEC
main61594-90B00i198208-198610
61598BRACKET, STIFFENER, NO.5
main61598-90B00i198208-199301
main61598-90B00i199012-199301
HONG KONG PACKAGE 3 & W/GLIDING TYPE SENTER DOOR & *SSBD;HONG KONG PACKAGE 2 & W/GLIDING TYPE SENTER DOOR & *SSBD
61602BSTRENGTH SUB-ASSY, REAR CORNER, INNER RH
main61602-90B00i198205-199301
main61602-90B01i198510-199301
W/*SSBD
main61602-90B02i198302-199301
W/*DSBD
main61602-90B02i198510-199301
main61602-90B02i198408-198510
HONG KONG SPEC
main61602-90B02i199001-199301
W/*SSBD
61604BSTRENGTH SUB-ASSY, REAR CORNER, INNER LH
main61604-90B00i199001-199301
61615DPILLAR, NO.10 OUTER, UPPER RH
main61615-90B00i198302-199301
W/*DSBD
61625BPILLAR, NO.10 OUTER, UPPER LH
main61625-90B00i198510-199301
W/*SSBD
main61625-90B00i198302-199301
W/*DSBD
main61625-90B01i198405-198510
HONG KONG SPEC
main61625-90B01i198510-199301
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
main61631-90B00i198205-198610
*GIS
main61631-90B00i198610-199301
main61631-90B02i198205-198711
61632APANEL, QUARTER WHEEL HOUSE, OUTER LH
main61631-90B00i198610-199301
main61631-90B00i198205-198610
*GIS
main61631-90B02i198205-198711
61719ASTIFFENER, BATTERY SERVICE HOLE
main61719-90B00i198205-199301
61725BOX, FUEL INLET
main61731-90B00i198205-199301
main61741-90B00i198205-199301
61793PLATE, COOLER CONDENSER COVER LOCK
main61793-90B00i198405-198510
W/COOLER
main61793-90B00i198205-199301
61795APLATE, COOLER CONDENSER COVER SHIELD
main61795-90B00i198405-198510
W/COOLER
main61795-90B00i198205-199301
main61795-90B01i198205-199301
61811ARAIL, DUSTPROOF, FRONT RH
main61811-90B00i198205-199301
main61811-90B01i198610-199301
main61811-90B02i198205-199301
main61811-90B03i198610-199301
61812ARAIL, DUSTPROOF, REAR RH
main61812-90B00i198205-199301
61813APLATE, DUSTPROOF, NO.1 RH
main61813-90B00i198205-198510
main61813-90B01i198205-198510
main61813-90B02i198510-199301
main61813-90B03i198510-199301
main61819-90B03i199001-199301
61821ARAIL, DUSTPROOF, FRONT LH
main61821-90B00i198205-199301
main61821-90B01i198610-199301
main61821-90B02i198205-199301
main61821-90B03i198610-199301
61822ARAIL, DUSTPROOF, REAR LH
main61822-90B00i198205-199301
61823APANEL, DUSTPROOF, NO.1 LH
main61823-90B00i198205-198510
main61823-90B01i198205-198510
main61823-90B02i198510-199301
main61823-90B03i198510-199301
61908PILLAR SUB-ASSY, NO.1 OUTER, UPPER LH
main61908-90B00i198205-199301
main61908-90B01i199012-199301
HONG KONG PACKAGE 2 & W/GLIDING TYPE CENTER DOOR & *SSBD;HONG KONG PACKAGE 3 & W/GLIDING TYPE CENTER DOOR & *SSBD
main61908-90B01i198405-199301
HONG KONG SPEC
main61908-90B01i198510-199301
63165BBRACKET, EVAPORATOR, OUTER NO.4
main63165-90B00i199001-199301
LH W/*GLD & *DSBD;LH,W/GLIDING AUTO DOOR & *DSBD;LH W/*DSBD
main63165-90B00i199001-199301
RH W/*DSBD
main63165-90B00i199001-199301
LH W/*SSBD
main63165-90B00i199001-199301
LH W/*GLD & *DSBD
main63165-90B00i199001-199301
LH W/FOLDING AUTO DOOR & *DSBD
main63165-90B00i199001-199301
LH W/GLIDING AUTO DOOR & *DSBD
main63165-90B00i199001-199301
LH HONG KONG PACKAGE 1 & W/*GLD & W/*DSBD;LH HONG KONG SPEC OR W/*SSBD
main63165-90B00i199001-199301
LH W/*GLD & *DSBD;LH W/*DSBD
main63165-90B00i199001-199301
LH W/*DSBD
63169ABRACKET, EVAPORATOR, INNER NO.5
main63169-90B00i198302-199301
W/*DSBD
9046707001
main90467-07001
9095001027
main90950-01027
9095001056
main90950-01056
9095001150
main90950-01150
9095001424
main90950-01424
9095001444
main90950-01444
9095001450
main90950-01450
9095006028
main90950-06028
9165140612
main91651-40612

124 parts on this diagram · 9 diagrams in section
