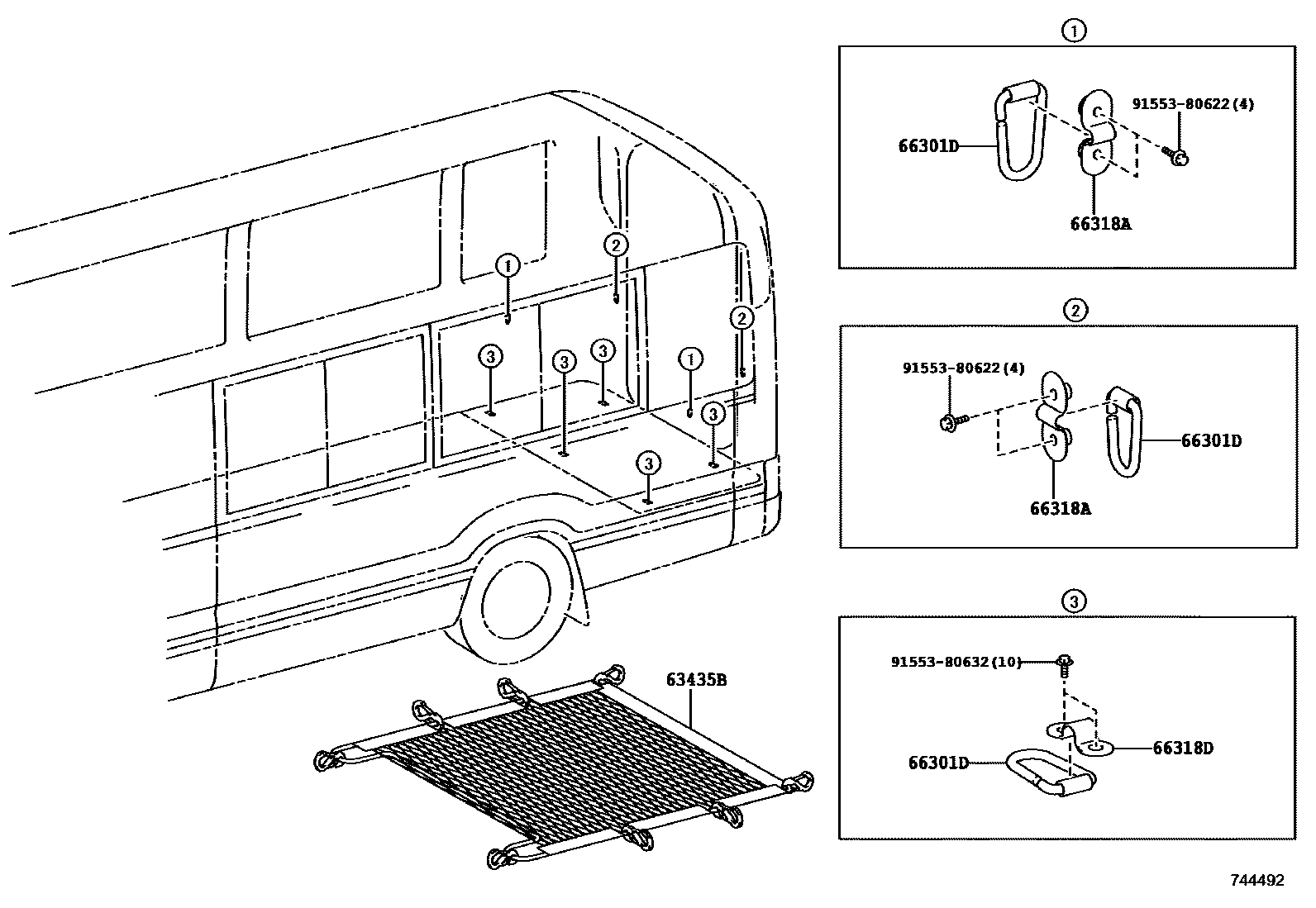

Toyota COASTER — SEPARATOR & SEPARATOR CURTAIN

63435BNET, ROOM RACK

main64230-36010i201701-202201

LUGGAGE ROOM SEPARATOR-WITH(SEPARATOR)

66301DHOOK SUB-ASSY, ROPE

main66301-36010×9i201701-202201

66318ABAND, ROPE HOOK

main66318-36020×4i201701-202201

66318DBAND, ROPE HOOK, NO.2

main66318-90A00×5i201701-202201

9155380622

main91553-80622

9155380632

main91553-80632

6 parts on this diagram · 1 diagram in section

SEPARATOR & SEPARATOR CURTAIN for Toyota COASTER

This section contains 6 genuine Toyota parts for the SEPARATOR & SEPARATOR CURTAIN system of the Toyota COASTER. Key components include: NET, ROOM RACK, HOOK SUB-ASSY, ROPE, BAND, ROPE HOOK, BAND, ROPE HOOK, NO.2.
