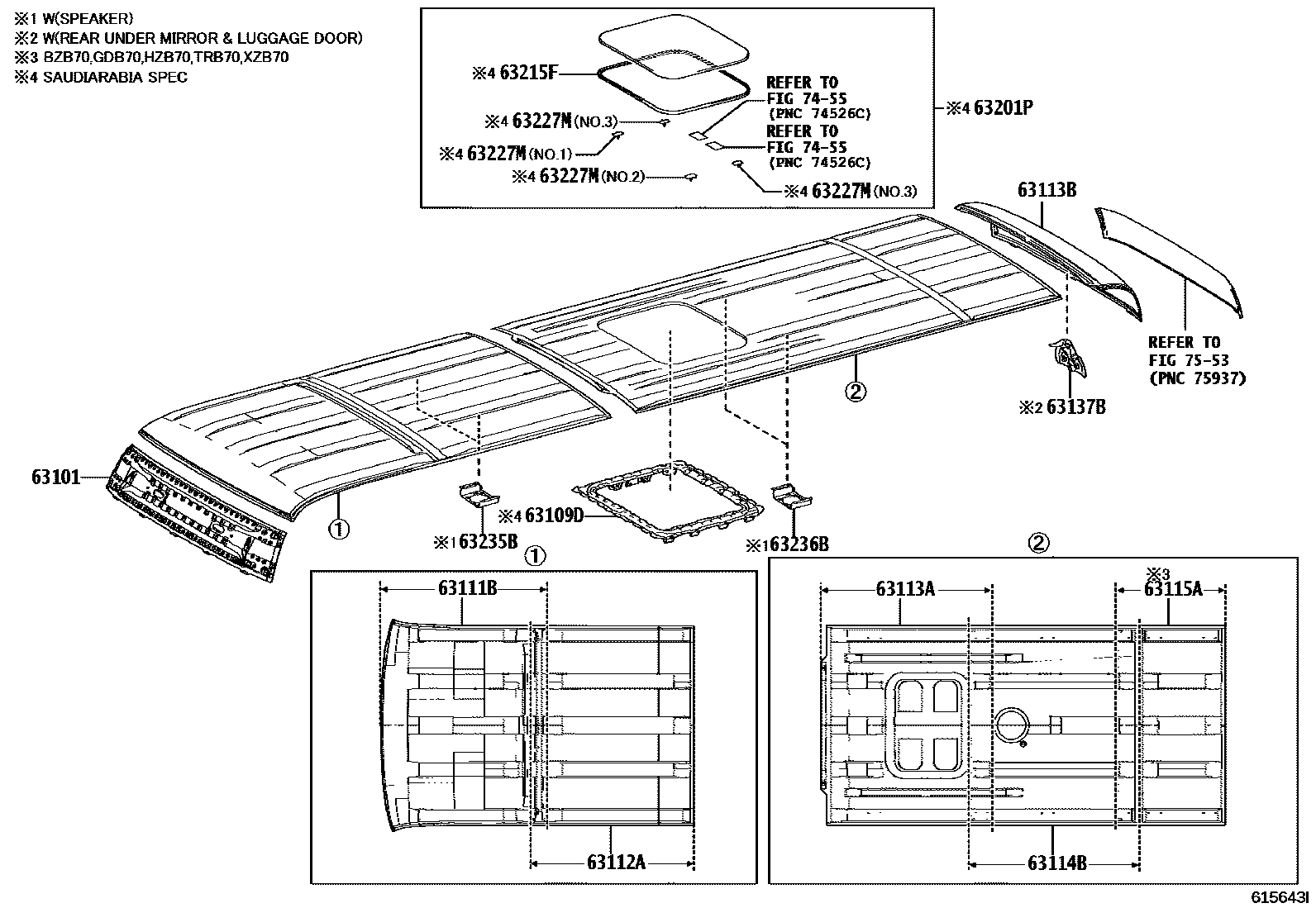

Toyota COASTER — ROOF PANEL & BACK PANEL
63101PANEL SUB-ASSY, ROOF
63109DFRAME SUB-ASSY, ROOF
SAUDIARABIA SPEC
63111BPANEL, ROOF, NO.1
63112APANEL, ROOF, NO.2
63113APANEL, ROOF, NO.3
ROOF RACK-WITH(LOAD CAPACITY = 100KG)
ROOF RACK-WITH(LOAD CAPASITY = 160KG)
SAUDIARABIA SPEC
63113BPANEL, ROOF, REAR
HIGH MOUNT STOP LAMP-WITH&REAR UNDER MIRROR-WITH(LUGGAGE DOOR)
main63113-36230supersedes 63113-36220iTRB70,XZB70..(19S,20S)..5F;HZB70,XZB80..(01S,25S)..(5F,6FC)201701-202201
LUGGAGE & BACK DOOR-*DSBD&HIGH MOUNT STOP LAMP-WITH
REAR WINDOW WIPER-WITH
HIGH MOUNT STOP LAMP-WITH&REAR UNDER MIRROR-WITH(LUGGAGE DOOR)
HIGH MOUNT STOP LAMP-WITH
63114BPANEL, ROOF, NO.4
ROOF RACK-WITH(LOAD CAPACITY = 100KG)
ROOF RACK-WITH(LOAD CAPACITY = 100KG)
63115APANEL, ROOF, NO.5
main63115-36A00iXZB70..SA;XZB70..29S;HZB70..30S..WOC;XZB70..LHD..DX..GEN;HZB70,TRB70..WC..GEN;GDB70,TRB70..(02S,19S,22S,23S)..(6F,6FC)..(GCC,GEN,SA,TAIW)202201
ROOF RACK-WITH(LOAD CAPACITY = 100KG)
63137BRETAINER, OUTER UNDER REAR VIEW MIRROR
REAR UNDER MIRROR-WITH(LUGGAGE DOOR)
63201PGLASS SUB-ASSY, SLIDING ROOF
SAUDIARABIA SPEC
63215FMOULDING, ROOF WINDOW, UPPER
SAUDIARABIA SPEC
63227MCLIP, ROOF WINDOW, LOWER
SAUDIARABIA SPEC,NO.1:REFER ILLUST.
SAUDIARABIA SPEC,NO.2:REFER ILLUST.
SAUDIARABIA SPEC,NO.3:REFER ILLUST.
63235BBRACKET, ROOM SPEAKER
AUDIO(FOR OVERSEAS MARKET)-AM/FM & CD & 4SPEAKER(LATIN AMERICA)
63236BBRACKET, ROOM SPEAKER
main63236-36030×2iHZB60,70..23S,25S,26S,30S;TRB60,70..19S,20S,23S,24S,30S;XZB70..LHD..(19S,23S,29S)..WC201701-202201
ROOF RACK-WITH(LOAD CAPASITY = 70KG)&AUDIO(FOR OVERSEAS MARKET)-AM/FM & CD & 4SPEAKER(LATIN AMERICA)
7455
7553
16 parts on this diagram · 9 diagrams in section
