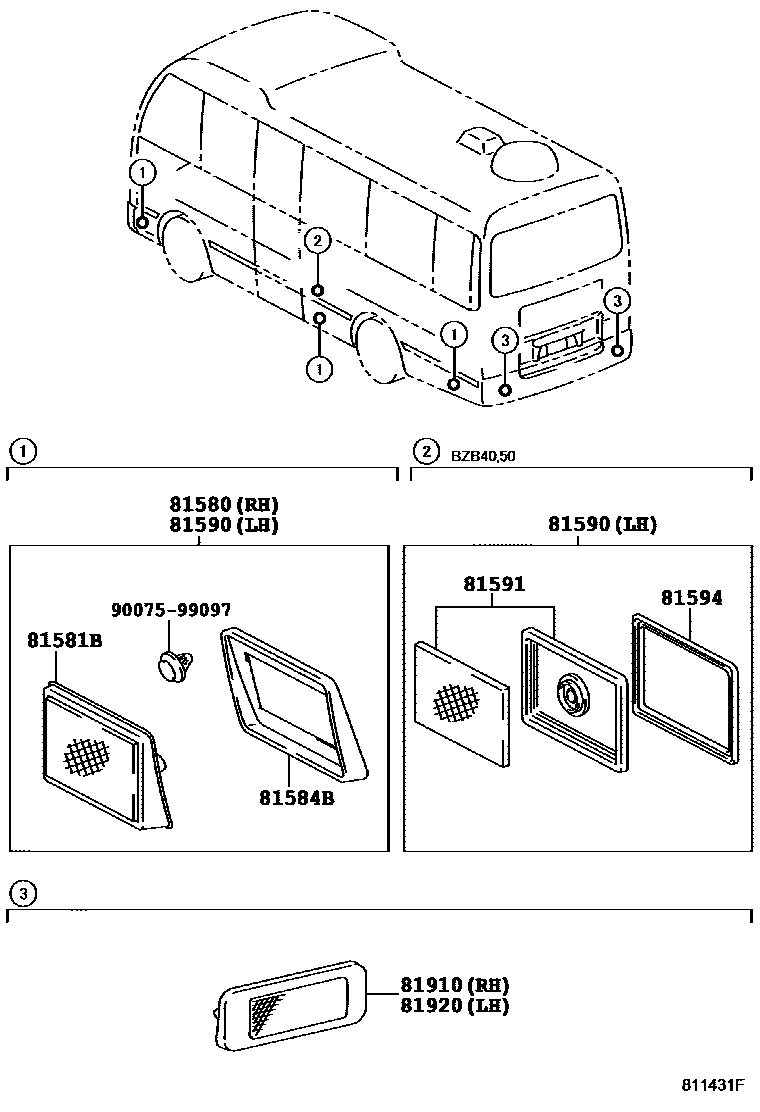

Toyota COASTER — REFLEX REFLECTOR

81580REFLECTOR ASSY, REFLEX SIDE, RH

main81580-36010iHZB50..ARL199301-200408

sub81580-36011

main81580-36011iBB50..ARL200408-201501

81581BLENS AND BODY, REFLEX REFLECTOR

main81581-36010iBB40,HZB50..ARL199301-200408

sub81581-36011

main81581-36011iBB50..ARL200408-201501

81584BGASKET,REFLEX REFLEC

main81584-36020iHZB50..ARL199301-201501

81590REFLECTOR ASSY, REFLEX SIDE, LH

main81580-36010iHZB50..ARL199301-200408

sub81580-36011

main81580-36011iXZB50..WC..ARL200408-201501

main81580-36011iBZB40,50201209-201501

FRONT & REAR

main81580-36030iBZB40,50201209-201501

CENTER

81591LENS AND BODY, REFLEX SIDE REFLECTOR, LH

main81581-36030iBZB40,50201209-201501

81594GASKET, REFLEX REFLECTOR BODY, LH

main81584-36030iBZB40,50201209-201501

81910REFLECTOR ASSY, REFLEX, RH

main81910-60100iBZB40,50,XZB40,5#..GEN201209-201612

81920REFLECTOR ASSY, REFLEX, LH

main81920-60040iBZB40,50,XZB40,5#..GEN201209-201612

9007599097

main90075-99097

9 parts on this diagram · 1 diagram in section
