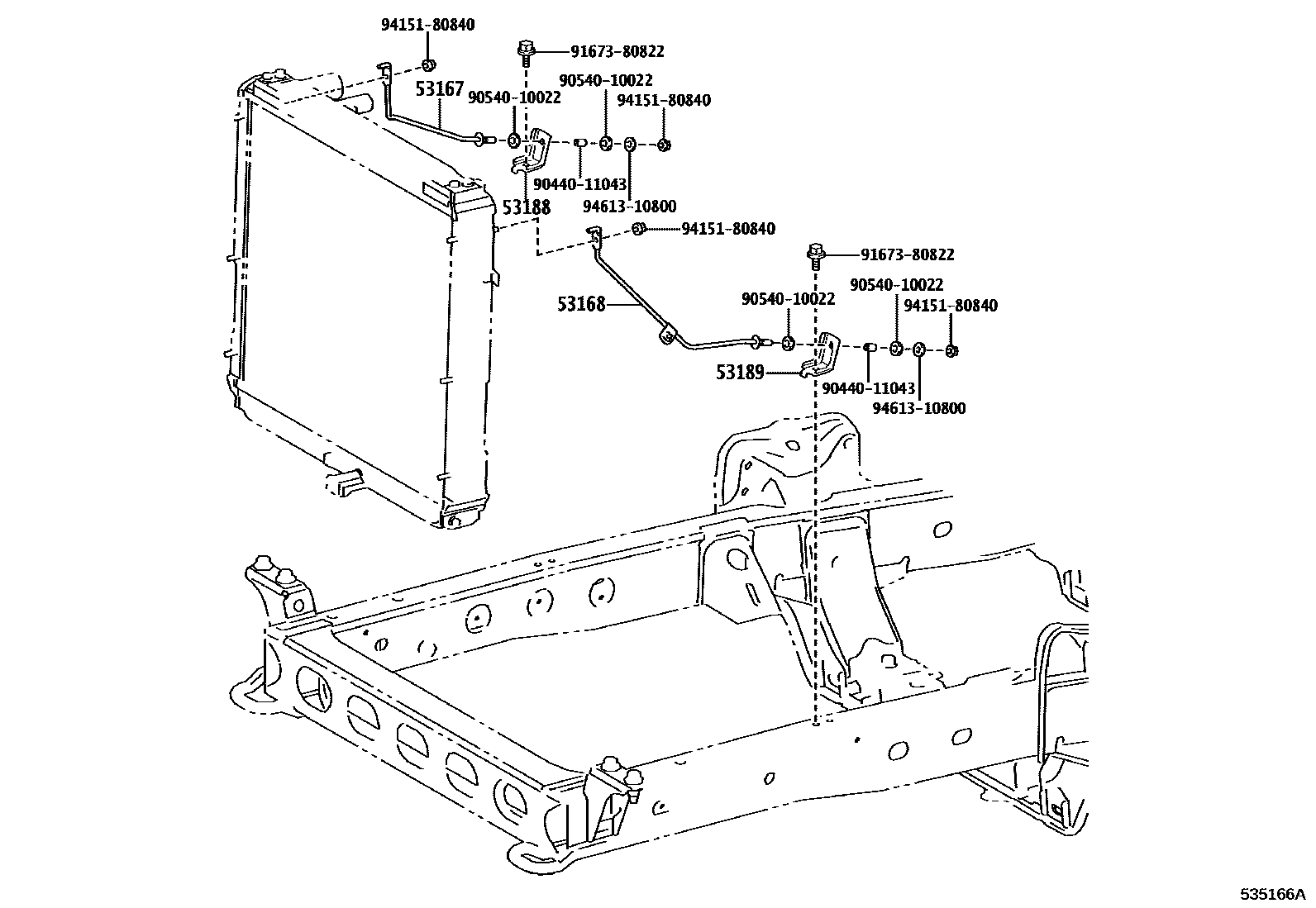

Toyota COASTER — RADIATOR SUPPORT & WIND GUIDE

53167ROD, RADIATOR BRACE, RH

main16533-17030iHZB60,70..RHD201701-202201

main16533-17040iTRB70..WOC;HZB70..23S..GCC202201-202412

main16533-58090iBZB70201701-202012

main16533-78130iXZB70..(02S,23S,25S,30S)..STD..(GEN,TAIW)201701

main16533-78140iGDB70,XZB70..RHD..23S..(BTN,GEN)202201-202312

53168ROD, RADIATOR BRACE, LH

main16534-17020iBB60..RHD201701-201907

main16534-17030iHZB70..23S..WOC202201-202312

main16534-58050iBZB70201701-202012

main16534-78110iXZB70..(02S,23S,25S,30S)..STD..(GEN,TAIW)201701

main16534-78120iXZB70..6FC201701

main16534-V4010iGDB70..BTN202201-202312

main16534-V4020iGDB70..LHD202201

53188BRACKET, RADIATOR BRACE ROD, RH

main53168-36010iTRB60,70..19S,20S,23S,24S,30S;HZB60,70,XZB80..(01S,23S,25S,26S,30S)..(5F,6FC);XZB70..(19S,20S,22S,23S,29S)..5F..WC..(GCC,GEN,SA)201701-202201

53189BRACKET, RADIATOR BRACE ROD, LH

main53168-36010iBZB60,XZB60201701-201712

9044011043

main90440-11043

9054010022

main90540-10022

9167380822

main91673-80822

9415180840

main94151-80840

9461310800

main94613-10800

9 parts on this diagram · 1 diagram in section
