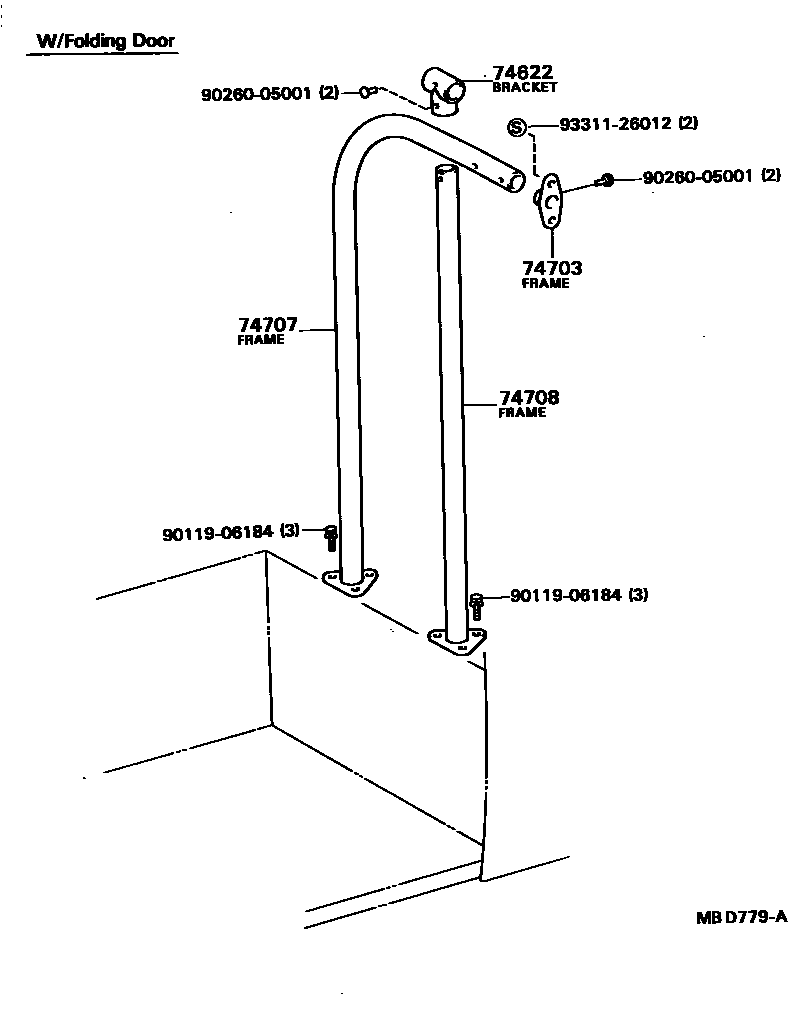

Toyota COASTER — PROTECTOR PIPE, ROLL BAR & HANDRAIL

0001 1 0003 1 0005 1 0006 1 0007 1

74622BRACKET, HAND GRIP

main74622-90500iBB20,RB20..GEN,IRQ198205-198304

main74826-90B00iBB2#..15S198710-199301

74703FRAME SUB-ASSY, HAND GRIP SIDE

main74703-90B00iBB32..4FC199001-199301

74707FRAME SUB-ASSY, HAND GRIP, NO.1

main74707-90B00iBB20,RB20..WOC..ARL198206-198304

W/FOLDING DOOR

main74707-90B01iBB20,21,FB30,HB30,RB20..LHD198205-199301

main74707-90B03iBB20,RB20..ARL198205-198310

W/GLIDE DOOR

main74707-90B09iHZB30..RHD..WC199001-199301

74708FRAME SUB-ASSY, HAND GRIP, NO.2

main74708-90B00iBB20,RB20..GEN,IRQ198205-198304

main74708-90B02iBB20,RB20..ARL198205-198310

W/GLIDE DOOR

main74708-90B05iHZB30..RHD..30S..WC199012-199301

HONG KONG PACKAGE 2 & W/GLIDING TYPE CENTER DOOR;HONG KONG PACKAGE 3 & W/GLIDING TYPE CENTER DOOR

9011906184

main90119-06184

9026005001

main90260-05001

9331126012

main93311-26012

7 parts on this diagram · 5 diagrams in section
