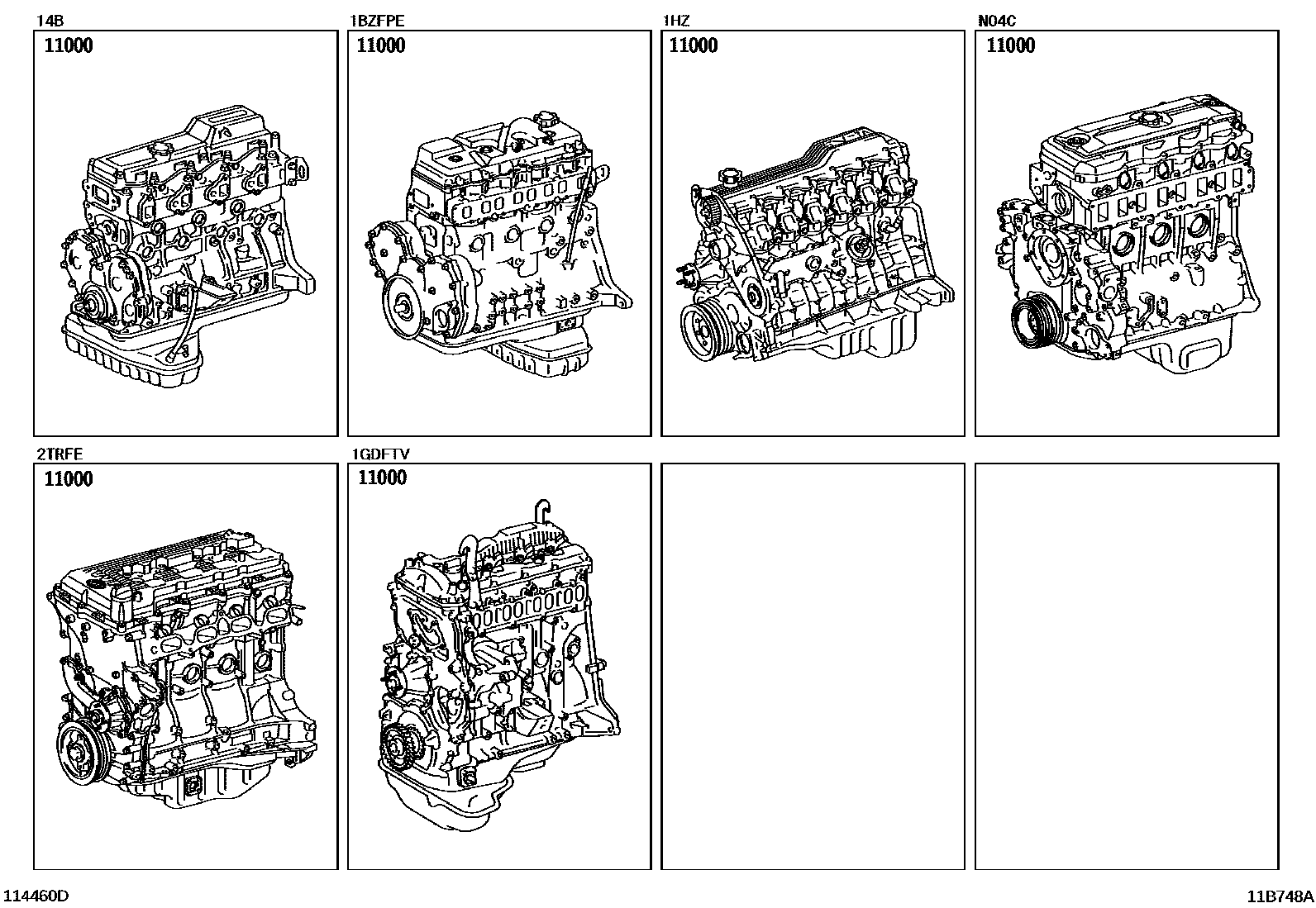

Toyota COASTER — PARTIAL ENGINE ASSEMBLY

11000ENGINE ASSY, PARTIAL

main19000-0U013iN04C..XZB70,80..(01S,20S,22S)..5F..(EX,STD)201908-202011

EXHAUST EMISSION CONTROL-EURO 5

sub19000-0U014

main19000-0U013iN04C..XZB70..TAIW201910-202011

sub19000-0U014

main19000-0U014iN04C..XZB70..TAIW202011-202102

sub19000-0U015

main19000-0U014iN04C..XZB70,80..(01S,20S)..5F202011-202101

EXHAUST EMISSION CONTROL-EURO 5

sub19000-0U015

main19000-0U015iN04C..XZB70..TAIW202102-202108

sub19000-0U016

main19000-0U016iN04C..XZB70..TAIW202108-202201

sub19000-0U017

main19000-0U017iN04C..XZB70..TAIW202201

sub19000-0U018

main19000-0U023iN04C..XZB70,80..4FC201908-202012

sub19000-0U024

main19000-0U063iN04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN)201908-202011

sub19000-0U064

main19000-0U064iN04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN,SA)202011-202102

sub19000-0U065

main19000-0U065iN04C..XZB70..(19S,22S,23S,25S,29S,30S)..5F202102-202108

sub19000-0U066

main19000-0U066iN04C..XZB70..(19S,22S,23S,25S,29S,30S)..5F202108-202201

sub19000-0U067

main19000-0U067iN04C..XZB70..(23S,25S,30S)..STD..GEN202201

sub19000-0U068

main19000-0UA51iN04C..XZB80..6FC201908-202011

sub19000-0UA52

main19000-0UA52iN04C..XZB70,80..6FC..GEN202011-202102

sub19000-0UA53

main19000-0UA53iN04C..XZB70,80..6FC..GEN202102-202105

sub19000-0UA54

main19000-0UA54iN04C..XZB70,80..6FC..GEN202105-202201

sub19000-0UA55

main19000-0UA55iN04C..XZB80..6FC202201-202302

sub19000-0UA56

main19000-0UA56iN04C..XZB80..6FC202302-202307

sub19000-0UA57

main19000-0UA57iN04C..XZB80..6FC202307-202310

sub19000-0UA58

main19000-0UA58iN04C..XZB80..6FC202310-202409

main19000-0UA59iN04C..XZB80..6FC202409-202512

main19000-0UB60iN04C..XZB70..ARL202101-202102

sub19000-0UB61

main19000-0UB61iN04C..XZB70..ARL202102

sub19000-0UB62

main19000-0UD80iN04C..XZB70..(22S,23S,29S)..WC..(GEN,SA)202201-202302

sub19000-0UD81

main19000-0UD81iN04C..XZB70..(22S,23S,29S)..WC..(GEN,SA)202302-202307

sub19000-0UD82

main19000-0UD82iN04C..XZB70..(22S,23S,29S)..WC..(GEN,SA)202307-202310

EXHAUST EMISSION CONTROL-EURO 3

sub19000-0UD83

main19000-0UD83iN04C..XZB70..RHD..23S..GEN202310-202312

main19000-0UD83iN04C..XZB70..SA;N04C..XZB70..LHD..DX..GEN;N04C..XZB70..(22S,29S)..GEN202310-202409

EXHAUST EMISSION CONTROL-EURO 3

main19000-0UD84iN04C..XZB70..22S..GEN202409-202412

EXHAUST EMISSION CONTROL-EURO 3

main19000-0UD84iN04C..XZB70..SA;N04C..XZB70..29S;N04C..XZB70..LHD..DX..GEN202409

main19000-0UD90iN04C..XZB70,80..(01S,20S)..5F202201-202302

sub19000-0UD91

main19000-0UD91iN04C..XZB70,80..(01S,20S)..5F202302-202307

sub19000-0UD92

main19000-0UD92iN04C..XZB70,80..(01S,20S)..5F202307-202310

sub19000-0UD93

main19000-0UD93iN04C..XZB70,80..(01S,20S)..5F202310-202409

main19000-0UD94iN04C..XZB70,80..(01S,20S)..5F202409-202512

main19000-0UG10iN04C..XZB70..GCC202201-202307

EXHAUST EMISSION CONTROL-EURO 4

sub19000-0UG11

main19000-0UG11iN04C..XZB70..LHD..29S;N04C..XZB70..23S..WC..GEN202307-202310

EXHAUST EMISSION CONTROL-EURO 4

sub19000-0UG12

main19000-0UG12iN04C..XZB70..GCC202310-202409

EXHAUST EMISSION CONTROL-EURO 4

main19000-0UG13iN04C..XZB70..RHD..29S202409-202412

EXHAUST EMISSION CONTROL-EURO 4

main19000-0UG13iN04C..XZB70..23S..GCC;N04C..XZB70..RHD..23S..GEN202501

main19000-11E80i1GDFTV..GDB60;1GDFTV..GDB70..ARL,GCC,GEN,TAIW202201-202501

main19000-11E81i1GDFTV..GDB70..DX..ARL;1GDFTV..GDB70..RHD..(EX,STD)..(ARL,GEN)202501-202512

main19000-11E90i1GDFTV..GDB70..SA202201-202501

main19000-11E91i1GDFTV..GDB70..SA202501

main19000-17840i1HZ..HZB60;1HZ..HZB70..WC..GEN;1HZ..HZB70..30S..WOC201701-202312

main19000-17A11i1HZ..HZB70..19S201701-202412

main19000-17A11i1HZ..HZB60,70..GEN201701-202201

HIGH ALTITUDE COMPENSATOR-WITH&FRONT HEATER-MANUAL 120W

main19000-17A11i1HZ..HZB70..23S..GCC201701-202201

FRONT HEATER-MANUAL 120W

main19000-48100i1BZFPE..BZB60201701-202012

main19000-58A20i14B..BB60201701-201908

sub19000-5C150

main19000-75K92i2TRFE..TRB60,70201701-202005

sub19000-75N60

main19000-75N60i2TRFE..TRB60,70..19S,20S,23S,24S,30S202005-202412

main19000-78L93iN04C..XZB60,70..(02S,17S,20S,22S)..5F201701-201704

sub19000-78L95

main19000-78L94iN04C..XZB60,70..(02S,17S,20S,22S)..5F201704-201706

sub19000-78L95

main19000-78L95iN04C..XZB60,70..(02S,17S,20S,22S)..5F201706-201709

sub19000-78L96

main19000-78L96iN04C..XZB60,70..(02S,17S,20S,22S)..5F201709-201712

sub19000-78Y40

main19000-78M13iN04C..XZB70..4FC201701-201704

sub19000-78M15

main19000-78M14iN04C..XZB70..4FC201704-201706

sub19000-78M15

main19000-78M15iN04C..XZB70..4FC201706-201709

sub19000-78M16

main19000-78M16iN04C..XZB70..4FC201709-201712

sub19000-78Y30

main19000-78N00iN04C..XZB70..STD..GEN201701-201706

sub19000-78N01

main19000-78N01iN04C..XZB70..STD..GEN201706-201709

sub19000-78N02

main19000-78N02iN04C..XZB70..STD..GEN201709-201712

sub19000-78Y80

main19000-78Y30iN04C..XZB70..4FC201712-201805

sub19000-78Y31

main19000-78Y31iN04C..XZB70..4FC201805-201905

sub19000-78Y33

main19000-78Y33iN04C..XZB70..4FC201905-201906

sub19000-78Y34

main19000-78Y34iN04C..XZB70..4FC201906-201908

sub19000-78Y35

main19000-78Y40iN04C..XZB70..(02S,20S,22S)..5F..(EX,STD)201712-201805

sub19000-78Y41

main19000-78Y41iN04C..XZB70..(02S,20S,22S)..5F..(EX,STD)201805-201905

sub19000-78Y43

main19000-78Y43iN04C..XZB70..(02S,20S,22S)..5F..(EX,STD)201905-201906

sub19000-78Y44

main19000-78Y44iN04C..XZB70..(02S,20S,22S)..5F..(EX,STD)201906-201908

sub19000-78Y45

main19000-78Y45iN04C..XZB70..TAIW201908-201910

sub19000-78Y46

main19000-78Y80iN04C..XZB60;N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN)201712-201805

sub19000-78Y81

main19000-78Y81iN04C..XZB60;N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN)201805-201905

sub19000-78Y83

main19000-78Y83iN04C..XZB60;N04C..XZB70..(19S,22S,23S,25S,29S,30S)..(GCC,GEN)201905-201906

sub19000-78Y84

main19000-78Y84iN04C..XZB60;N04C..XZB70..(19S,22S,23S,25S,29S)..WC..(GCC,GEN)201906-201908

sub19000-78Y85

1 parts on this diagram · 1 diagram in section
