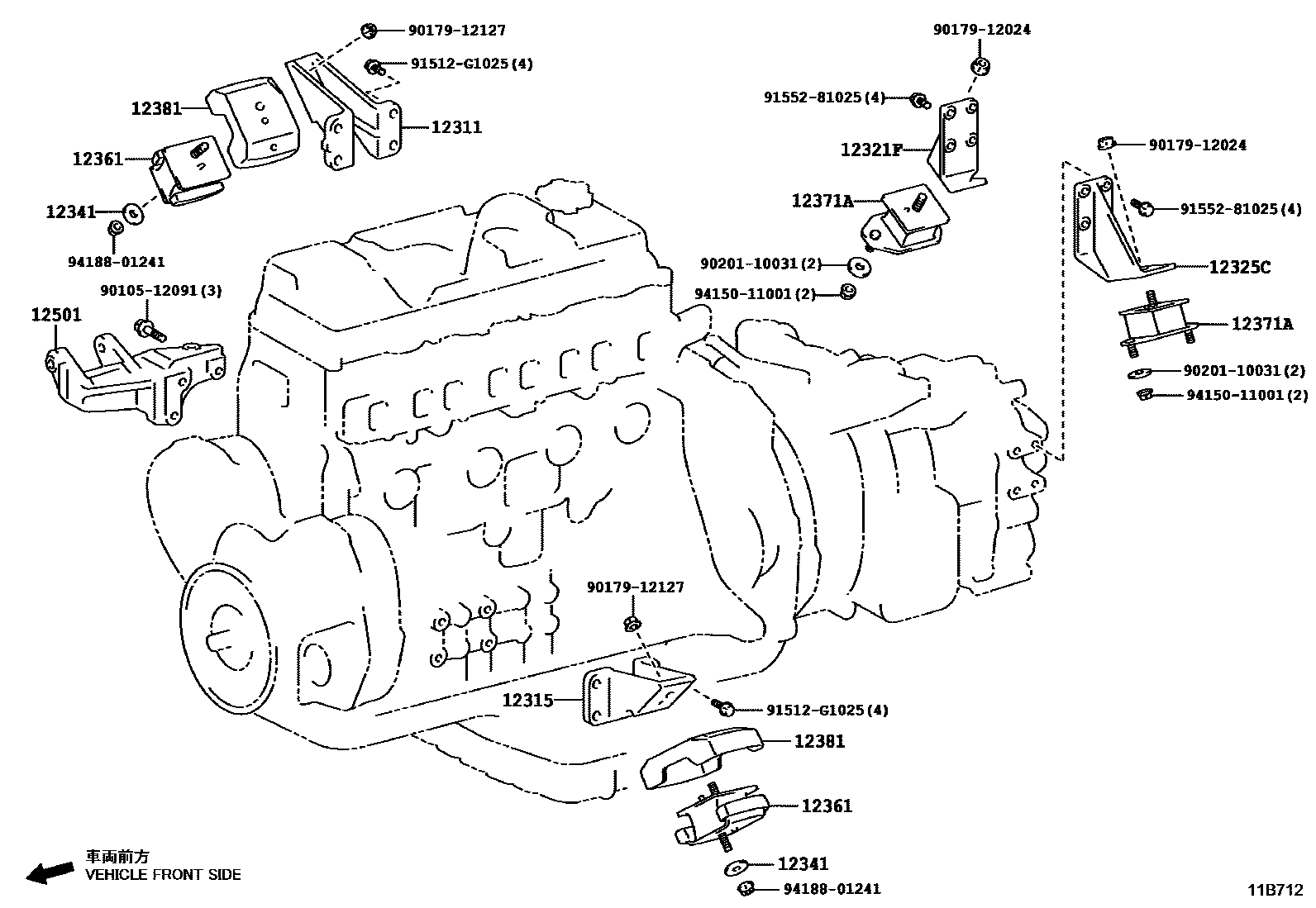

Toyota COASTER — MOUNTING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-11180i1GDFTV..GDB60;1GDFTV..GDB70..(02S,19S,22S,23S)..(GCC,GEN,SA,TAIW)202201

main12311-17041i1HZ..HZB70..23S..GCC202201-202412

main12311-58081i1BZFPE..BZB60,70201701-202012

main12311-75030i2TRFE..TRB60,70..GCC202201-202303

main12311-E0180iN04C..XZB60201701-201712

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-11090i1GDFTV..GDB70..DX..ARL;1GDFTV..GDB70..RHD..(EX,STD)..(ARL,GEN)202201-202512

main12315-17041i1HZ..HZB70..23S..GCC202201-202412

main12315-58041i14B..BB60201701-201907

main12315-75030i2TRFE..TRB60,70..6F;2TRFE..TRB70..WC..GEN202201

main12315-E0100iN04C..XZB80..5F,6FC;N04C..XZB70..(19S,20S,22S,23S,29S)..5F..WC..(GCC,GEN,SA)201701-202201

12321BRACKET, ENGINE MOUNTING, REAR, NO.1

main12321-75010i2TRFE..TRB70..WOC202201-202412

main12321-V4020i2TRFE..TRB60,70..6F202501

12321FBRACKET, ENGINE MOUNTING, REAR RH

main12321-17020i1HZ..HZB70..23S..GCC202201-202412

main12321-78380iN04C..XZB60201701-201712

main12321-78400iN04C..XZB70,80..4FC201701-202012

main12321-78590iN04C..XZB70..6FC201908

main12321-V4010i1GDFTV..GDB70..DX..ARL;1GDFTV..GDB70..RHD..(EX,STD)..(ARL,GEN)202201-202512

12325BRACKET, ENGINE MOUNTING, NO.3

main12325-75010i2TRFE..TRB60,70..GCC202201-202303

main12325-V4020i2TRFE..TRB60,70..6F202501

12325CBRACKET, ENGINE MOUNTING, REAR LH

main12325-17020i1HZ..HZB60;1HZ..HZB70..WC..GEN;1HZ..HZB70..30S..WOC202201

main12325-78360iN04C..XZB70..RHD..23S..GEN202501

main12325-78380iN04C..XZB70,80..4FC201701-202012

main12325-78550iN04C..XZB80..6FC202201-202512

main12325-V4010i1GDFTV..GDB70..BTN202201-202312

12341SPACER, ENGINE MOUNTING

main12319-51010×2iN04C..XZB70..RHD..23S..GEN202501

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-17034×2i1HZ..HZB60,70..23S,25S,26S,30S201701-202201

main12361-58084×2i1BZFPE..BZB60,70201701-202012

main12361-75021×2i2TRFE..TRB60,70..GCC202201-202303

main12361-V4010×2i1GDFTV..GDB60;1GDFTV..GDB70..(02S,19S,22S,23S)..(GCC,GEN,SA,TAIW)202201

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-17070×2i2TRFE..TRB70..WC..GEN202201

main12371-78030×2i2TRFE..TRB60,70..6F202501

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-17070×2i1HZ..HZB70..19S201701

main12371-78030×2iN04C..XZB70..6FC;N04C..XZB70..(02S,23S,25S,30S)..STD..(GEN,TAIW)201701

main12371-V4010×2i1GDFTV..GDB60;1GDFTV..GDB70..(02S,19S,22S,23S)..(GCC,GEN,SA,TAIW)202201

12381STABILIZER, ENGINE MOUNTING

main12381-17021×2i1HZ..HZB70..23S..WOC202201-202312

main12381-65030×2i2TRFE..TRB60,70..GCC202201-202303

12501BRACKET SUB-ASSY, ALTERNATOR

main12501-11012i1GDFTV..GDB70..BTN202201-202312

main12501-56010i14B..BB60201701-201907

main12501-58050i1BZFPE..BZB60,70201701-202012

9010512091

main90105-12091

9017912024

main90179-12024

9017912127

main90179-12127

9020110031

main90201-10031

91512G1025

main91512-G1025

9155281025

main91552-81025

9415011001

main94150-11001

9418801241

main94188-01241

20 parts on this diagram · 6 diagrams in section
