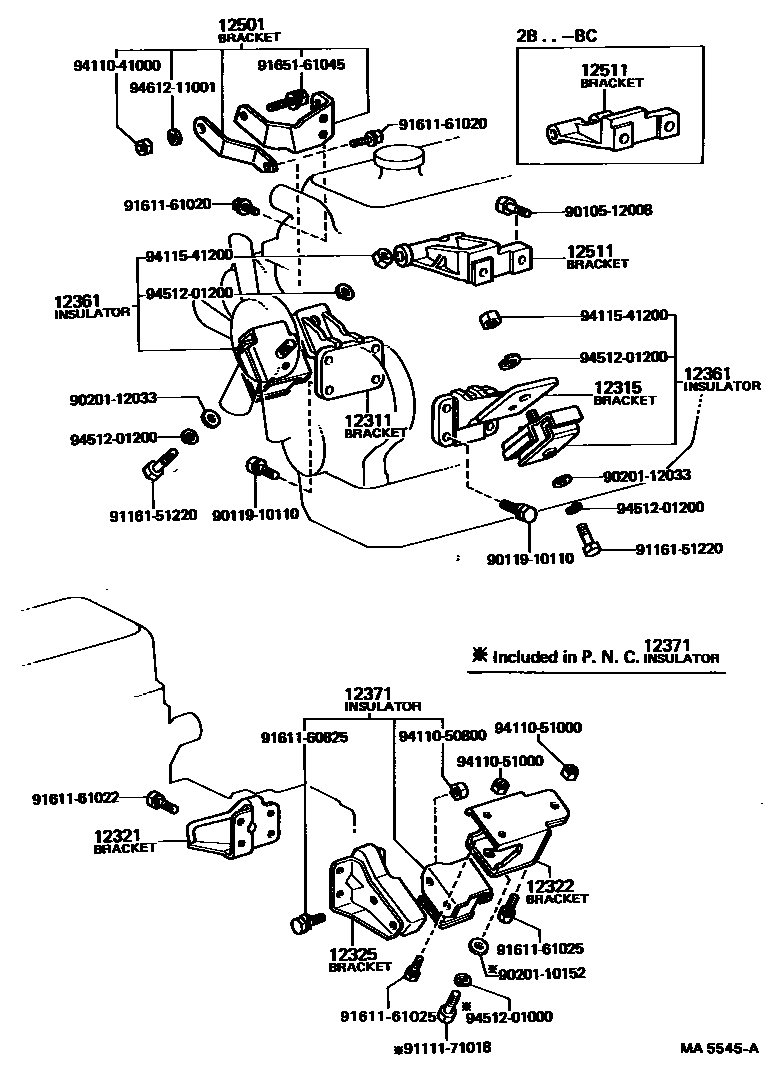

Toyota COASTER — MOUNTING

0001 1 0002 1 0003 1 0004 1 0005 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-35010i22R..RB13198008-198204

main12311-38010i20R..RB11197708-197911

sub12311-38020

main12311-38020i20R..RB11197911-198008

main12311-44020i5R..RB10197708-197911

main12311-56010i2B..BB10197708-198008

sub12311-56030

main12311-56030i2B..BB10198008-198204

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12311-56010i2B..BB10197708-198008

sub12311-56030

main12311-56030i2B..BB10198008-198204

main12312-38010i20R..RB11..DLX,STD197708-197808

main12312-38011i20R,22R..RB11,13..DLX,STD197808-198204

main12312-44010i5R..RB10197708-197911

12321BRACKET, ENGINE MOUNTING, REAR, NO.1

main12321-44012i5R..RB10197708-198204

main12321-56010i2B..BB10197708-198204

RH

main12325-56010i20R,22R..RB11,13..5F,5H197708-198204

LH

12322BRACKET, ENGINE MOUNTING, REAR NO.2

main12322-38010i20R,22R..RB11,13..4F,4H197708-198204

RH

main12322-38020i20R,22R..RB11,13..5F,5H197708-198204

RH

main12322-48011×2i5R..RB10197708-197911

main12322-57010×2i2B..BB10197708-197911

sub12322-57011

main12322-57011×2i2B..BB10197911-198204

main12326-38010i20R,22R..RB11,13..4F,4H197708-198204

LH

main12326-38020i20R,22R..RB11,13..5F,5H197708-198204

LH

12325BRACKET, ENGINE MOUNTING, NO.3

main12325-56010i2B..BB10197708-198204

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-38060×2i20R,22R..RB11,13197808-198204

sub12361-38061

main12361-39155×2i20R..RB11197708-197808

sub12361-38060

sub91651-41025

sub94110-41000

sub94115-41200

sub94511-01200

sub94612-11001

main12361-49036×2i5R..RB10197708-197911

main12361-59055×2i2B..BB10197708-198204

sub12361-56050

sub12361-59026

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-44012×2i5R..RB10197708-197911

main12371-59035×2i20R,22R..RB11,13197708-198204

sub12371-57011

12501BRACKET SUB-ASSY, ALTERNATOR

main12501-57010i2B..BB10..BC197708-198008

12511BRACKET, ALTERNATOR, NO.1

main12511-35010i22R..RB13..DLX,STD198102-198204

main12511-38011i20R..RB11..DLX,STD197708-197808

main12511-38030i20R,22R..RB11,13..DLX,STD197808-198102

sub12511-35010

main12511-40020i5R..RB10197809-197911

main12511-44020i5R..RB10197708-197809

main12511-56020i2B..BB10..DLX,STD197708-198008

main12511-56030i2B..BB10..DLX,STD198008-198202

sub12511-56031

main12511-56031i2B..BB10..DLX,STD198202-198204

main12511-57010i2B..BB10..BC197708-198008

main12511-57020i2B..BB10..BC198008-198204

main88688-36070i20R..RB11..BC197708-198008

main88688-36071i22R..RB13..BC198008-198204

9010512008

main90105-12008

9011910110

main90119-10110

9020110152

main90201-10152

9020112033

main90201-12033

9111171018

main91111-71018

9116151220

main91161-51220

9161160825

main91611-60825

9161161020

main91611-61020

9161161022

main91611-61022

9161161025

main91611-61025

9165161045

main91651-61045

9411041000

main94110-41000

9411050800

main94110-50800

9411051000

main94110-51000

9411541200

main94115-41200

9451201000

main94512-01000

9451201200

main94512-01200

9461211001

main94612-11001

27 parts on this diagram · 5 diagrams in section
