Toyota COASTER — MIRROR

0001 1INNER MIRROR 0002 1OUTER MIRROR 0003 1OUTER MIRROR 0004 1REAR UNDER MIRROR

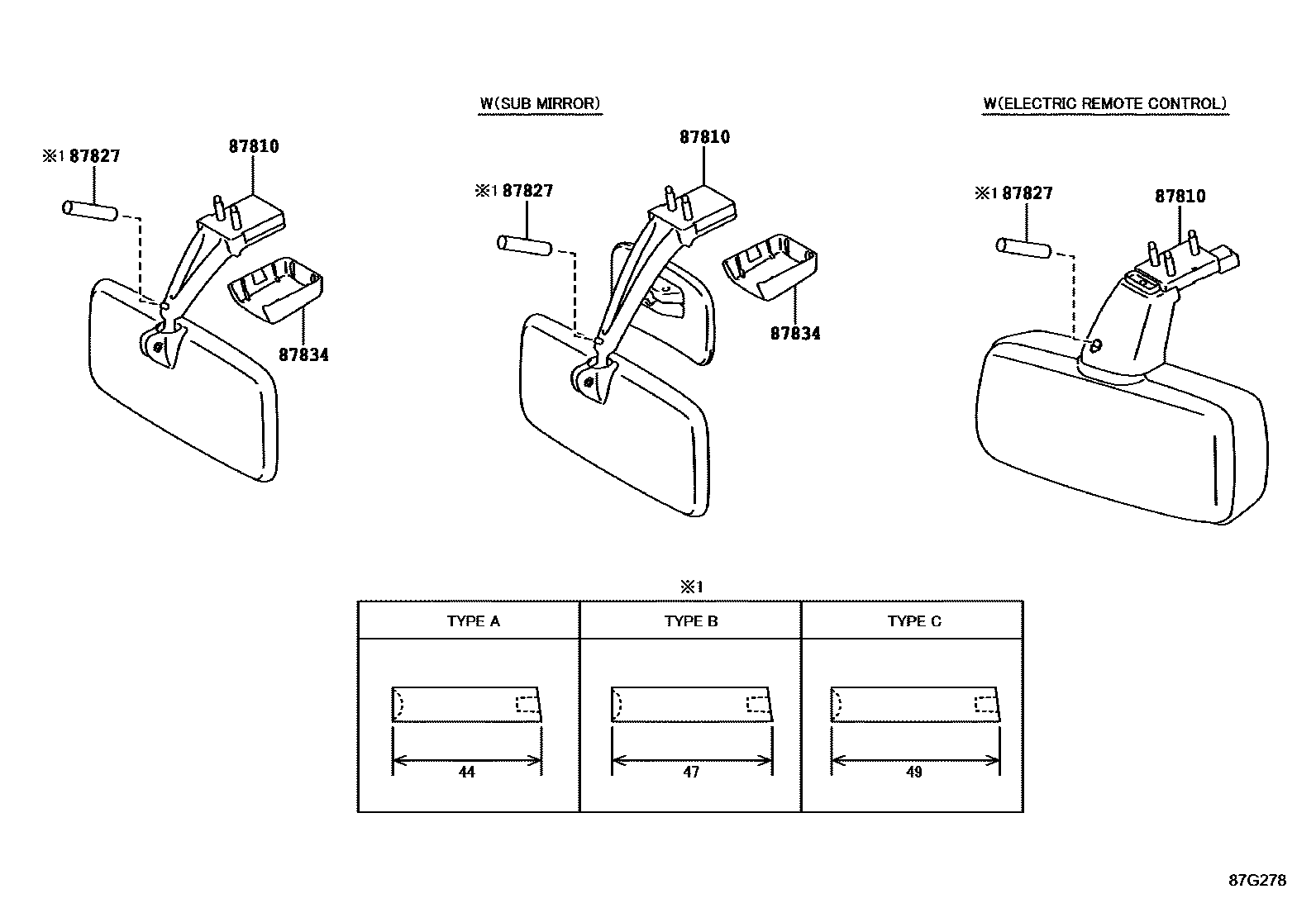

87810MIRROR ASSY, INNER REAR VIEW

main87810-36090-B0iXZB70..29S;HZB70..30S..WOC;XZB70..LHD..DX..GEN;GDB60,HZB60,TRB70..25S,26S,30S;GDB70,HZB70..(23S,25S,30S)..WC..GEN202201

LT.GRAY,TRIM1#

main87810-36100-B0supersedes 87810-36090-B0iGDB70..ARL;GDB70..20S..STD;XZB70..20S..5F..STD202201-202512

LT.GRAY,TRIM1#

main87810-36110-B0iXZB60..GCC201701-201907

LT.GRAY,TRIM1#

87827ABSORBER, INNER REAR VIEW MIRROR

main87828-30010iTRB60,70..19S,20S,23S,24S,30S;HZB60,70,XZB80..(01S,23S,25S,26S,30S)..(5F,6FC);XZB70..(19S,20S,22S,23S,29S)..5F..WC..(GCC,GEN,SA)201701-202201

TYPE A:REFER ILLUST.

main87828-32010iTRB60,70..19S,20S,23S,24S,30S;HZB60,70,XZB80..(01S,23S,25S,26S,30S)..(5F,6FC);XZB70..(19S,20S,22S,23S,29S)..5F..WC..(GCC,GEN,SA)201701-202201

TYPE B:REFER ILLUST.

main87828-92600iXZB70..23S..GCC;XZB70..RHD..23S..GEN202501

TYPE C:REFER ILLUST.

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-20080-B6iXZB70..23S..GCC;XZB70..RHD..23S..GEN202501

LT.GRAY,TRIM1#

3 parts on this diagram · 4 diagrams in section
