Toyota COASTER — MIRROR

0001 1INNER MIRROR 0002 1OUTER MIRROR = W(SUB MIRROR) 0003 1OUTER MIRROR = W/O(SUB MIRROR0004 1SUB MIRROR 0005 1REAR UNDER MIRROR

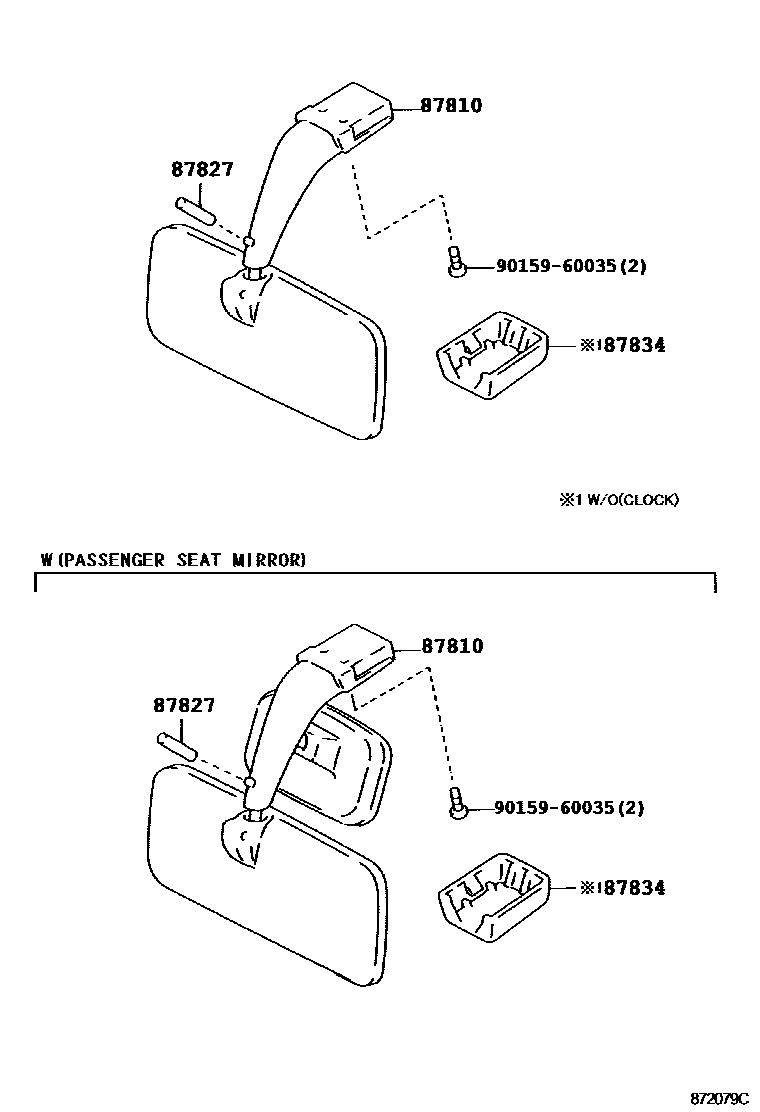

87810MIRROR ASSY, INNER REAR VIEW

main87810-36010-A0iBB42,HZB50,RZB40,50..GCC,GEN,SCO199301-199505

IVORY,TRIM4#

main87810-36010-A1iHZB50..GCC,GEN,SCO;BB42,5#,RZB40,50..GCC,GEN199505-199907

IVORY,TRIM4#

main87810-36020-A0iBB4#,HZB50,RZB40,50..CBU199301-199505

W(PASSENGER SEAT MIRROR),IVORY,TRIM4#

main87810-36020-A1iBB50..EX;BB4#,HZB50,RZB40,50..CBU199505-199907

W(PASSENGER SEAT MIRROR),IVORY,TRIM4#

main87810-36040-A0iBB50..WOC..5F;BB42,5#,HZB50,RZB40,50..(CHI,GCC,GEN)..CBU199907-200108

IVORY,TRIM4#

main87810-36040-B0iBB50..(19S,20S,30S)..GEN;BB42,58,HZB50,RZB40,50..GCC,GEN200108-200408

MD.CHARCOAL,TRIM1#

main87810-36050-A0iBB50..EX..GEN;BB50..STD..GEN..CBU..5F;BB4#,HZB50,RZB40,50..ARL,GCC,GEN199907-200108

W(PASSENGER SEAT MIRROR),IVORY,TRIM4#

main87810-36050-B0iHZB50..ARL200108-200211

W(PASSENGER SEAT MIRROR),MD.CHARCOAL,TRIM1#

main87810-36070-B0iXZB50..TAIW201209-201501

GRAY,TRIM1#

87827ABSORBER, INNER REAR VIEW MIRROR

main87828-10010iBZB50..EX;BB5#..(ARL,GEN)..TDEFI200408-200608

L=40.5

main87828-30010iXZB50..WOC..CBU200708-200908

L=44.0

main87828-32010iBB50..CHI199907-200211

L=47.0

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-20080-A0iBB4#,HZB50,RZB40,50..(DX,STD)..CBU199301-199505

IVORY,TRIM4#

main87834-20080-A1iBB4#,50,HZB50,RZB40,50..(DX,STD)..CBU..5F199705-199711

IVORY,TRIM4#

main87834-20080-B5iHZB50..ARL200108-200211

MD.CHARCOAL,TRIM1#

9015960035

main90159-60035

4 parts on this diagram · 5 diagrams in section
