Toyota COASTER — MIRROR

0001 1 0002 1 0003 1BB20RMRZ=HONG KONG SPEC 0005 1

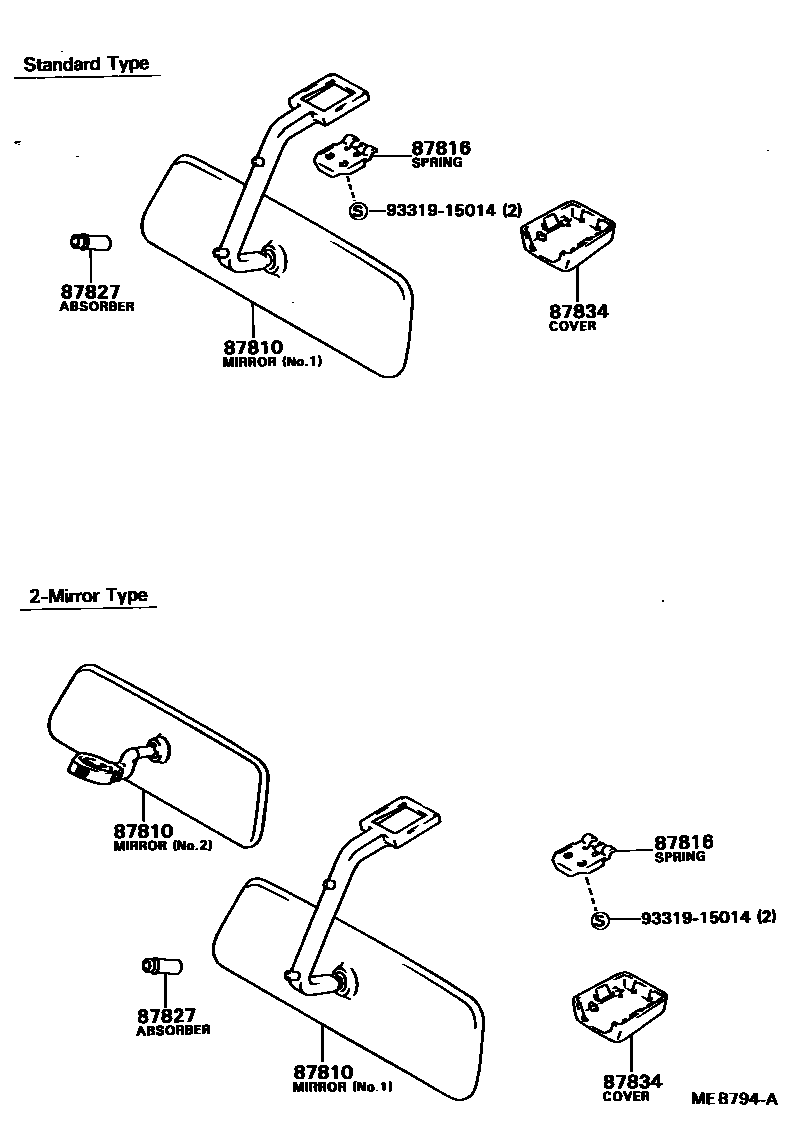

87810MIRROR ASSY, INNER REAR VIEW

main87801-90B00iBB2#,32,FB30,HB30,HZB30,RB20..15S,16S,17S,20S,22S,23S,25S,26S,29S,30S198205-199301

NO.1

main87801-90B02iBB20,RB20198205-198408

NO.2

87816SPRING, INNER REAR VIEW MIRROR

main74372-30030iBB2#,32,FB30,HB30,HZB30,RB20..15S,16S,17S,20S,22S,23S,25S,26S,29S,30S198205-199301

87827ABSORBER, INNER REAR VIEW MIRROR

main87828-22020iBB2#,FB30,HB30,RB20198205-198704

L=35.8

main87828-23010iBB2#,32,FB30,HB30,HZB30,RB20..15S,16S,17S,20S,22S,23S,25S,26S,29S,30S198205-199301

L=40.5

main87828-30010iBB2#,32,FB30,HB30,HZB30,RB20..15S,16S,17S,20S,22S,23S,25S,26S,29S,30S198205-199301

L=44

main87828-87002iBB2#,32,FB30,HB30,HZB30,RB20..15S,16S,17S,20S,22S,23S,25S,26S,29S,30S198704-199301

L=35.8

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-20080-08iBB2#,32,FB30,HB30,HZB30,RB20..15S,16S,17S,20S,22S,23S,25S,26S,29S,30S198205-199301

IVORY

9331915014

main93319-15014

5 parts on this diagram · 4 diagrams in section
