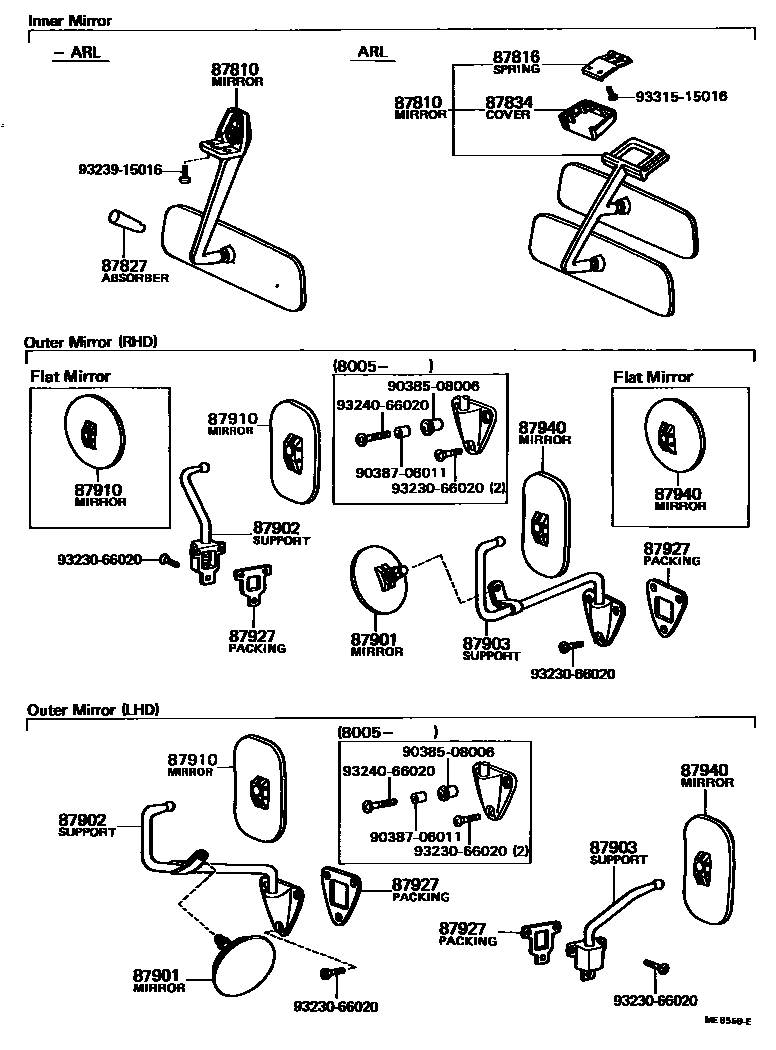

Toyota COASTER — MIRROR
87810MIRROR ASSY, INNER REAR VIEW
87816SPRING, INNER REAR VIEW MIRROR
87827ABSORBER, INNER REAR VIEW MIRROR
L=57.5
L=58.5
L=62
L=65.5
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
87901MIRROR SUB-ASSY, OUTER UNDER VIEW
sub87906-95A05
87902SUPPORT, REAR VIEW OUTSIDE MIRROR, RH
87903SUPPORT, REAR VIEW OUTSIDE MIRROR, LH
FLAT MIRROR
87927PACKING, REAR VIEW OUTSIDE MIRROR STAY
LH
LH
RH
LH
RH
LH
RH
9038508006
main90385-08006
9038706011
main90387-06011
9323066020
main93230-66020
9323915016
main93239-15016
9324066020
main93240-66020
9331515016
main93315-15016
16 parts on this diagram · 1 diagram in section
